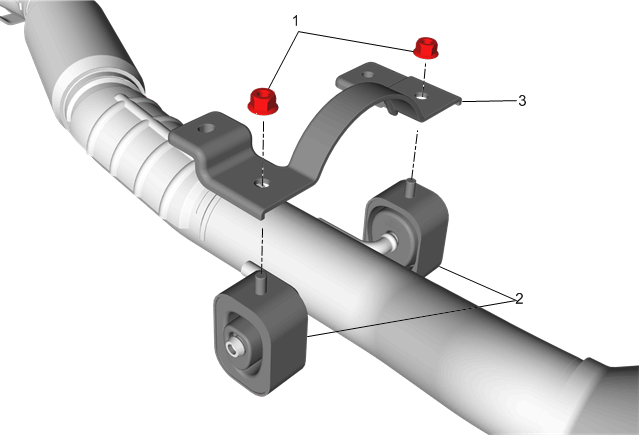

Exhaust Pipe Front Hanger Bracket Replacement
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Moving Parts and Hot Surfaces Warning .
WARNING:
Preliminary Procedure Exhaust Front Pipe Replacement (LTG) Exhaust Front Pipe Replacement (LCV) Refer to Safety Glasses Warning . |
|
| 1 | Exhaust Pipe Hanger Bracket Nut
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Exhaust Isolator |
| 3 | Exhaust Pipe Front Hanger Bracket |
