Rear Side Door Window Channel Rear Retainer Replacement

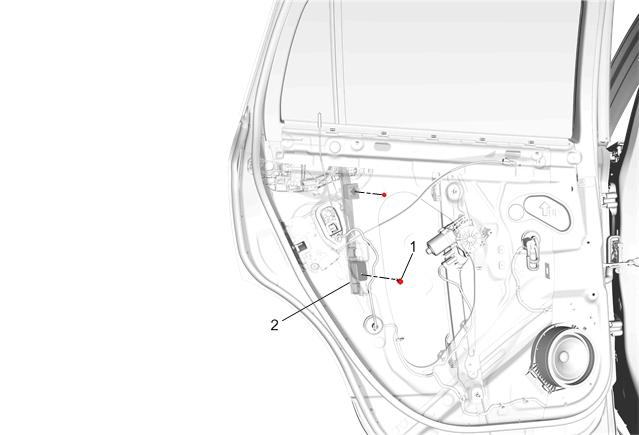

Fig 1: Rear Side Door Window Channel Rear Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Armrest Pull Cup Bracket Replacement Remove the water deflector.
1	Rear Side Door Window Channel Rear Retainer Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Side Door Window Channel Rear Retainer

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Channel Rear Retainer Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Side Door Window Channel Rear Retainer
