Removal Procedure

  1. Remove the front floor console assembly. Refer to Front Floor Console Replacement (Buick)Front Floor Console Replacement (Chevrolet) .
  2. Ensure that the park brake lever is in the fully released position.
  3. Disconnect the electrical connector from the parking brake indicator switch.

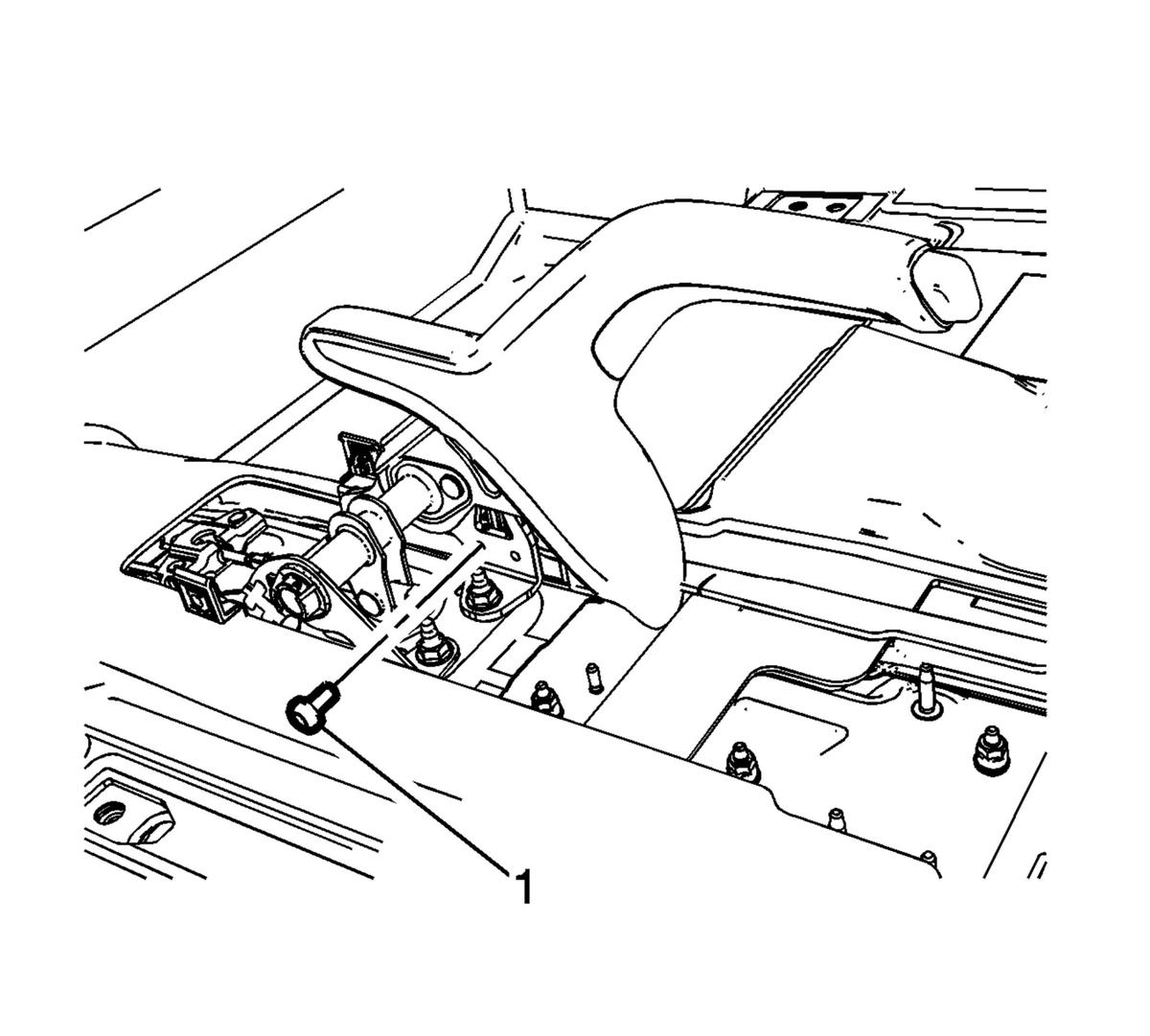

    4. Fig 1: Parking Brake Indicator Switch Bolt
    GM2512998Courtesy of GENERAL MOTORS COMPANY
  4. Remove the parking brake indicator switch bolt (1).

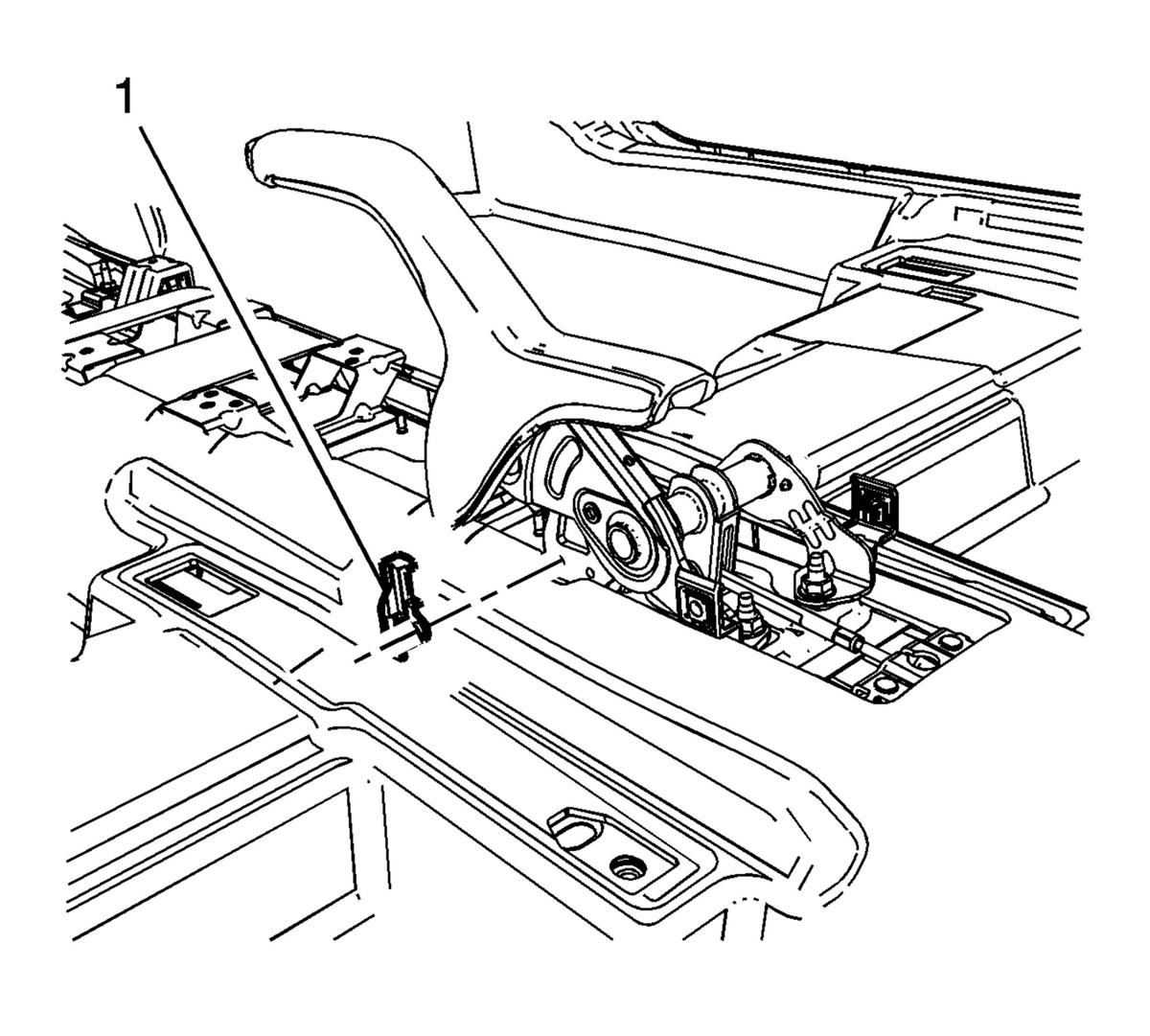

    5. Fig 2: Parking Brake Indicator Switch
    GM2512999Courtesy of GENERAL MOTORS COMPANY
  5. Remove the parking brake indicator switch (1).
