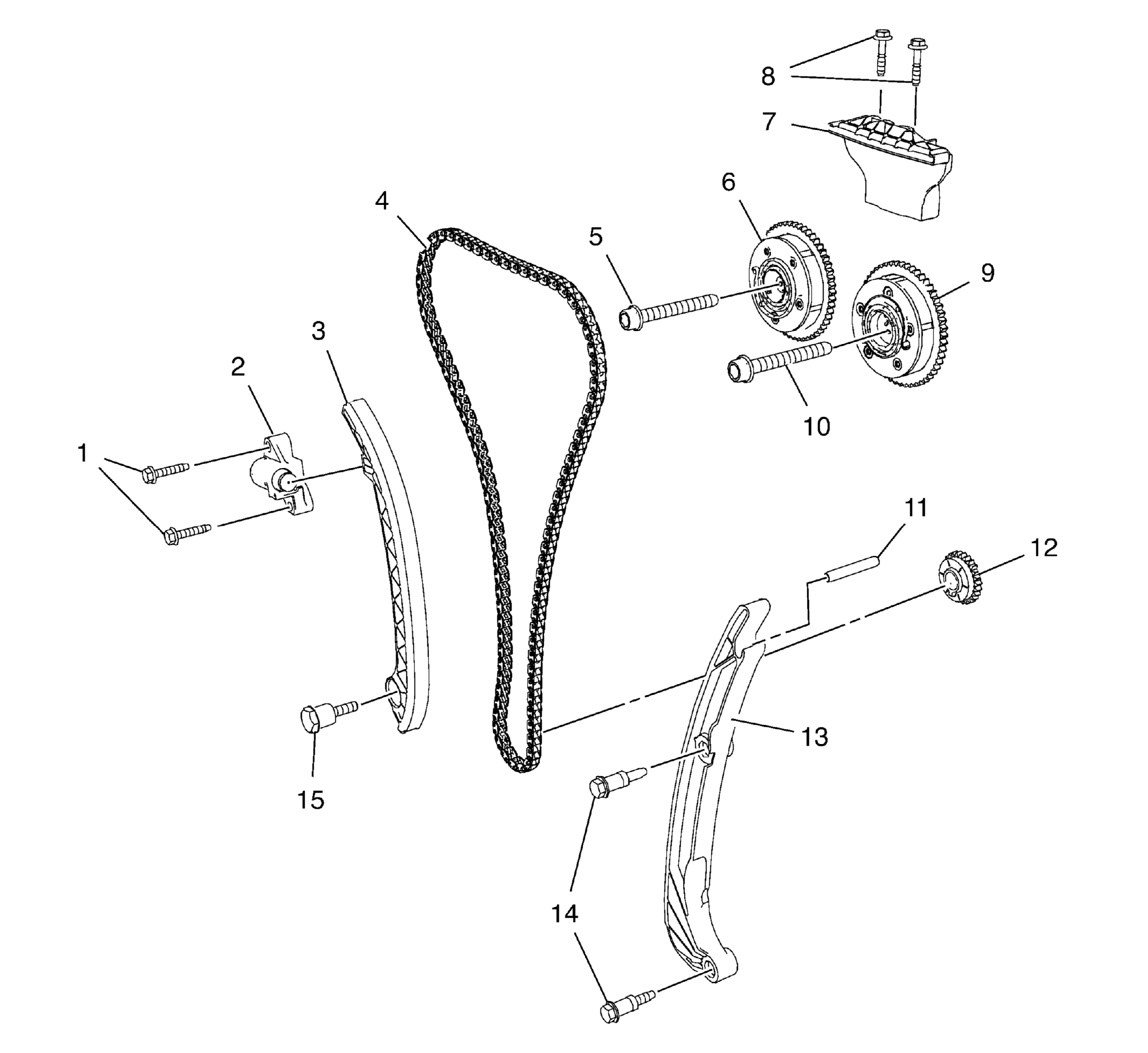

Timing Chain Components

Callout	Component Name
1	Timing Chain Tensioner Bolt
2	Timing Chain Tensioner
3	Timing Chain Guide (Left Side)
4	Timing Chain
5	Intake Camshaft Position Actuator Adjuster Bolt
6	Intake Camshaft Position Actuator Adjuster
7	Upper Timing Chain Guide
8	Upper Timing Chain Guide Bolt
9	Exhaust Camshaft Position Actuator Adjuster
10	Exhaust Camshaft Position Actuator Adjuster Bolt
11	Timing Chain Guide Pivot Pin
12	Crankshaft Sprocket
13	Timing Chain Guide (Right Side)
14	Timing Chain Guide Bolt
15	Timing Chain Guide Pin / Bolt
