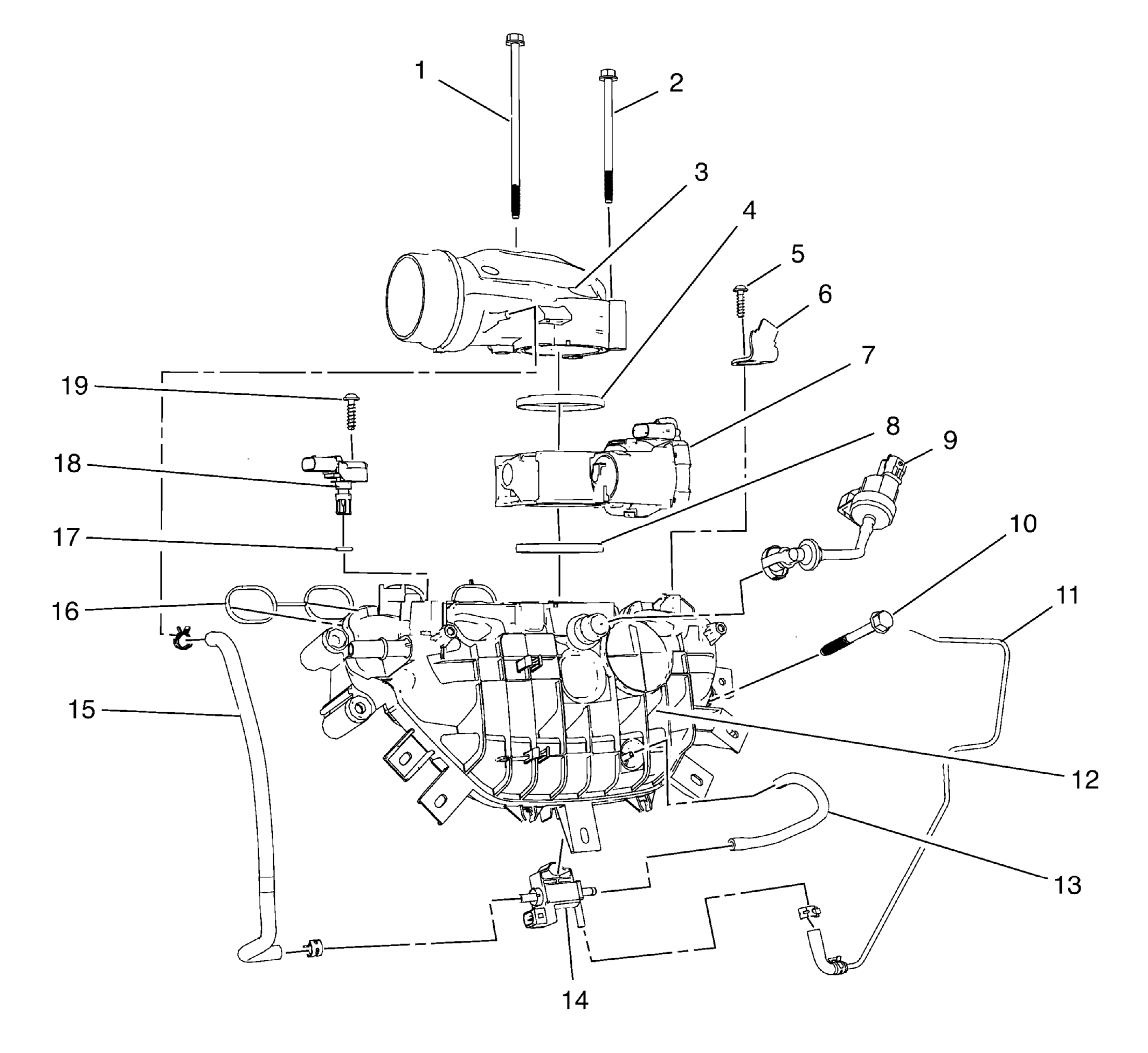

| 1 |
Throttle Body Adapter Bolt (long) |
| 2 |
Throttle Body Adapter Bolt (short) |
| 3 |
Throttle Body Adapter |
| 4 |
Upper Throttle Body Seal |
| 5 |
Evaporative Emission Canister Purge Solenoid Valve Bracket Bolt |
| 6 |
Evaporative Emission Canister Purge Solenoid Valve Bracket |
| 7 |
Throttle Body |
| 8 |
Lower Throttle Body Seal |
| 9 |
Evaporative Emission Canister Purge Solenoid Valve |
| 10 |
Intake Manifold Bolt |
| 11 |
Charge Air Bypass Valve Tube |
| 12 |
Intake Manifold |
| 13 |
Charge Air Bypass Valve Hose |
| 14 |
Charge Air Bypass Valve |
| 15 |
Charge Air Bypass Valve Hose |
| 16 |
Intake Manifold Seal |
| 17 |
Intake Air Pressure and Temperature Sensor Seal |
| 18 |
Intake Air Pressure and Temperature Sensor |
| 19 |
Intake Air Pressure and Temperature Sensor Bolt |
