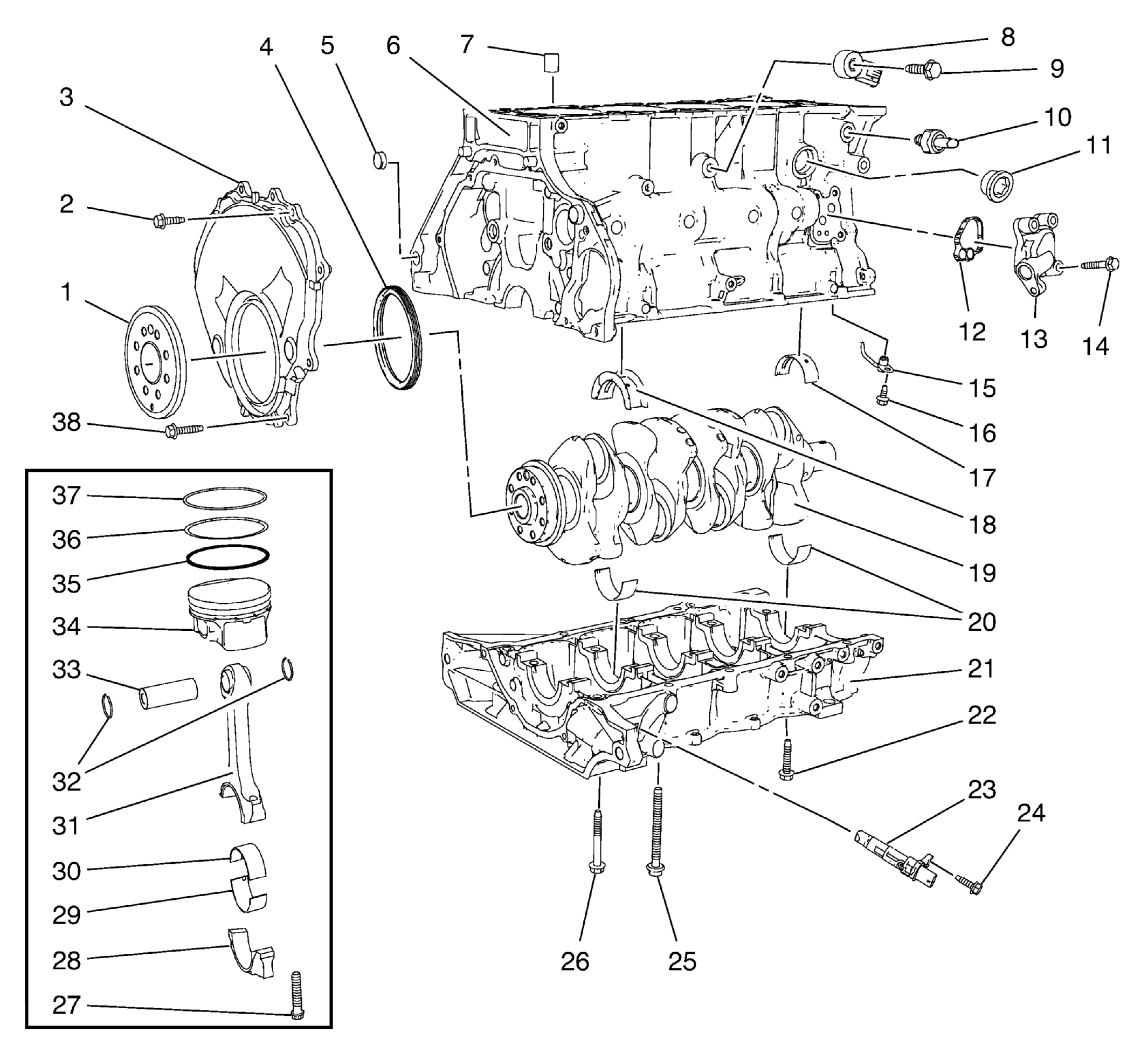

| 1 |
Crankshaft Position Sensor Reluctor Ring |
| 2 |
Crankshaft Rear Oil Seal Housing Bolt (short) |
| 3 |
Crankshaft Rear Oil Seal Housing |
| 4 |
Crankshaft Rear Oil Seal |
| 5 |
Transmission Guide Sleeve |
| 6 |
Engine Block |
| 7 |
Cylinder Guide Sleeve |
| 8 |
Knock Sensor |
| 9 |
Knock Sensor Bolt |
| 10 |
Engine Oil Pressure Sensor |
| 11 |
Engine Coolant Heater Hole Plug |
| 12 |
Oil Pump Flow Control Valve Seal |
| 13 |
Oil Pump Flow Control Valve |
| 14 |
Oil Pump Flow Control Valve Bolt |
| 15 |
Piston Oil Nozzle |
| 16 |
Piston Oil Nozzle Bolt |
| 17 |
Crankshaft Upper Bearing |
| 18 |
Crankshaft Thrust Upper Bearing |
| 19 |
Crankshaft |
| 20 |
Crankshaft Lower Bearing |
| 21 |
Crankshaft Lower Crankcase |
| 22 |
Crankshaft Lower Crankcase Bolt (short) |
| 23 |
Crankshaft Position Sensor |
| 24 |
Crankshaft Position Sensor Bolt |
| 25 |
Crankshaft Lower Crankcase Bolt (long) |
| 26 |
Crankshaft Lower Crankcase (middle) |
| 27 |
Connecting Rod Bolt |
| 28 |
Connecting Rod Bearing Cap |
| 29 |
Connecting Rod Lower Bearing |
| 30 |
Connecting Rod Upper Bearing |
| 31 |
Connecting Rod |
| 32 |
Piston Pin Retainer |
| 33 |
Piston Pin |
| 34 |
Piston |
| 35 |
Piston Oil Ring (with 2 Oil Ring Spacers) |
| 36 |
Piston Compression Lower Ring |
| 37 |
Piston Compression Upper Ring |
| 38 |
Crankshaft Rear Oil Seal Housing Bolt (long) |
