Installation Procedure
Courtesy of GENERAL MOTORS COMPANY

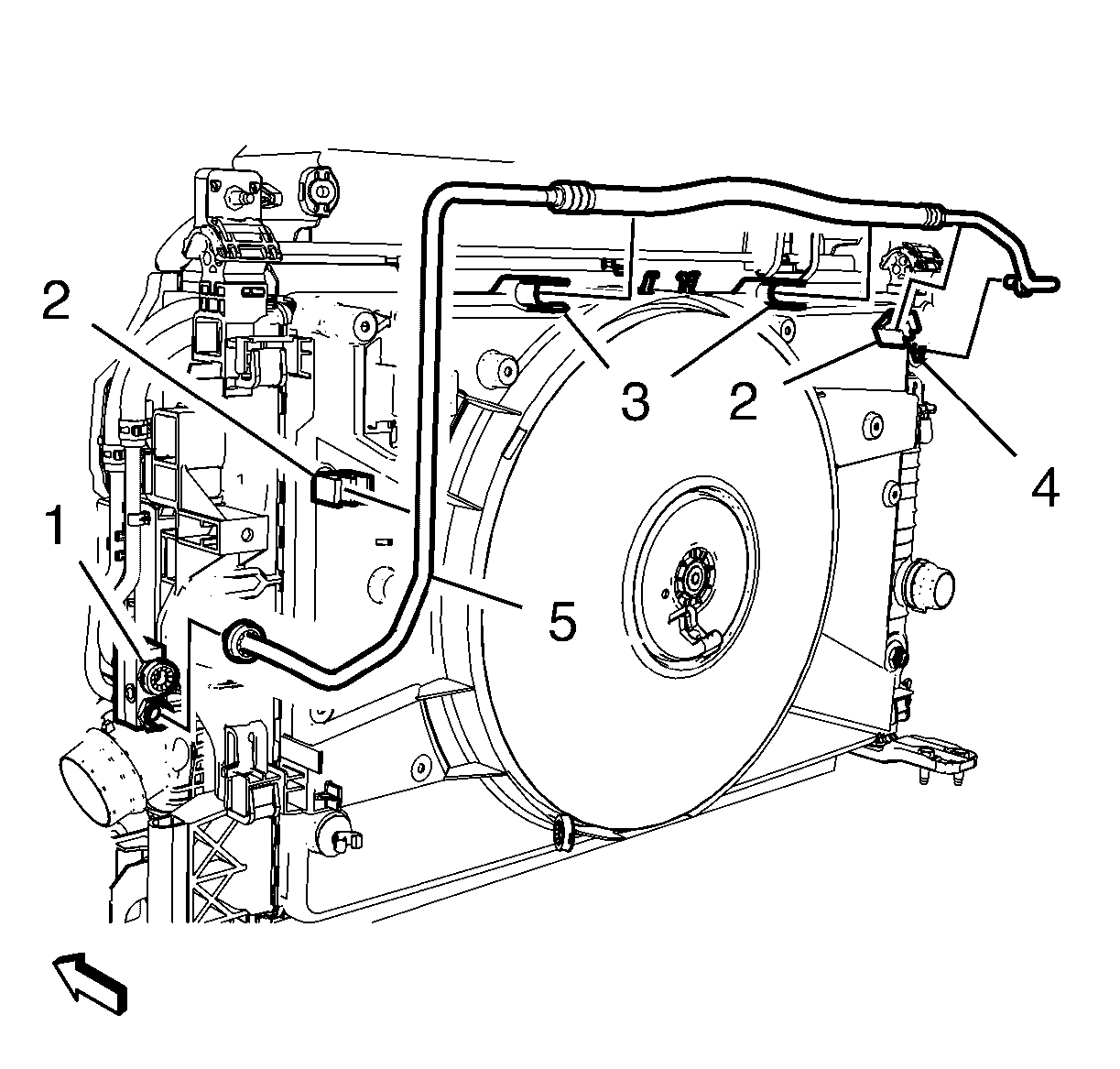

- Install the fluid cooler pipe (5).
- Attach the transmission fluid cooler pipe (5) to the 2 retainers (2).
- Clip in the transmission fluid cooler pipe (5) to the 2 engine coolant fan shroud retainers (3).
- Connect the transmission fluid cooler pipe (5) to the transmission fluid auxiliary cooler bypass valve connector (1) and the radiator connector (4). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
Courtesy of GENERAL MOTORS COMPANY

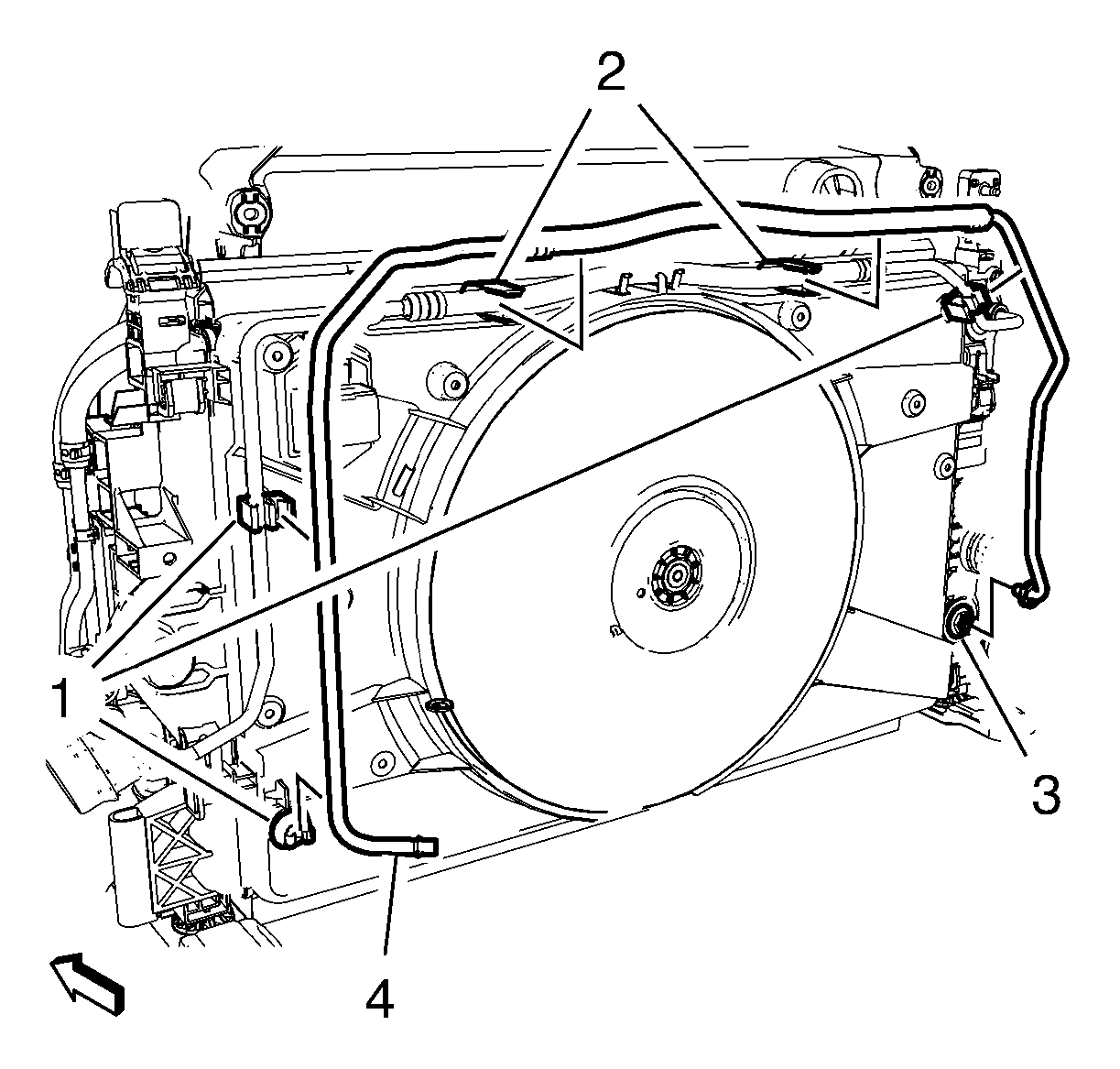

- Clip in the transmission fluid cooler pipe - front (4) to the 2 engine coolant fan shroud retainers (2) and to the 3 retainers (1).
- Fill and check the transmission fluid level. Refer to Transmission Fluid Drain and Fill
.
- Install the front bumper fascia. Refer to Front Bumper Fascia Replacement
.
- Install the battery tray. Refer to Battery Tray Replacement
.
