Installation Procedure
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
- Install radiator outlet hose to the vehicle.
- Install the radiator outlet hose (4) to the engine oil cooler.
- Engage tension on the radiator outlet hose clamp (3) at the engine oil cooler using J 38185 Hose Clamp Pliers.
- Install the radiator outlet hose (4) to the thermostat housing.
- Engage tension on the radiator outlet hose clamp (2) at the thermostat housing using J 38185 Hose Clamp Pliers.
- Install radiator outlet hose bracket retainer (1).

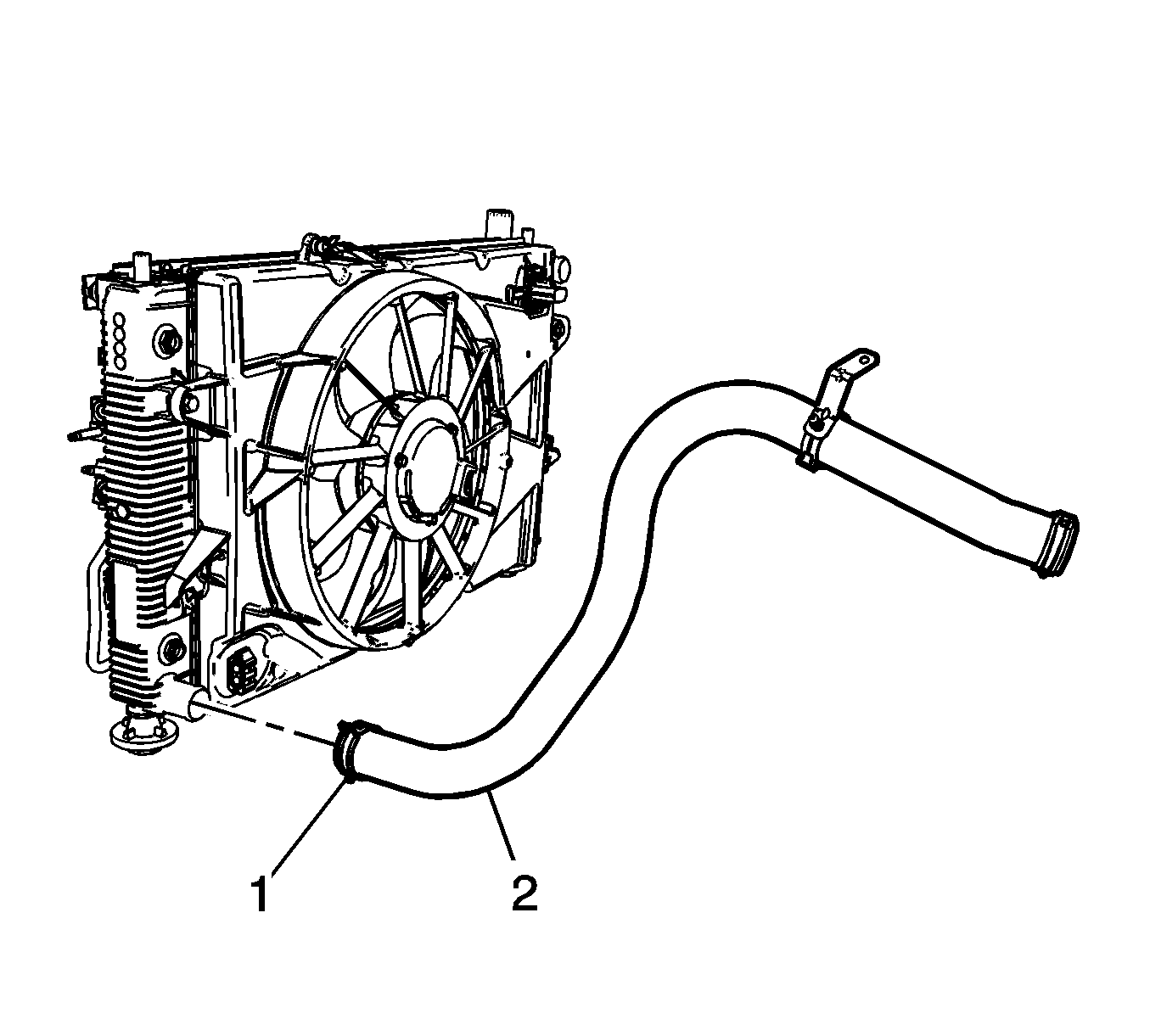

- Install the radiator outlet hose (2) to the radiator.
- Engage tension on the radiator outlet hose clamp (1) at the radiator using J 38185 Hose Clamp Pliers.
- Lower the vehicle.
- Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
NOTE:
Lubricate the inside diameters of the hose with clean coolant prior to installation.
