Starting and Charging Schematics: Starting

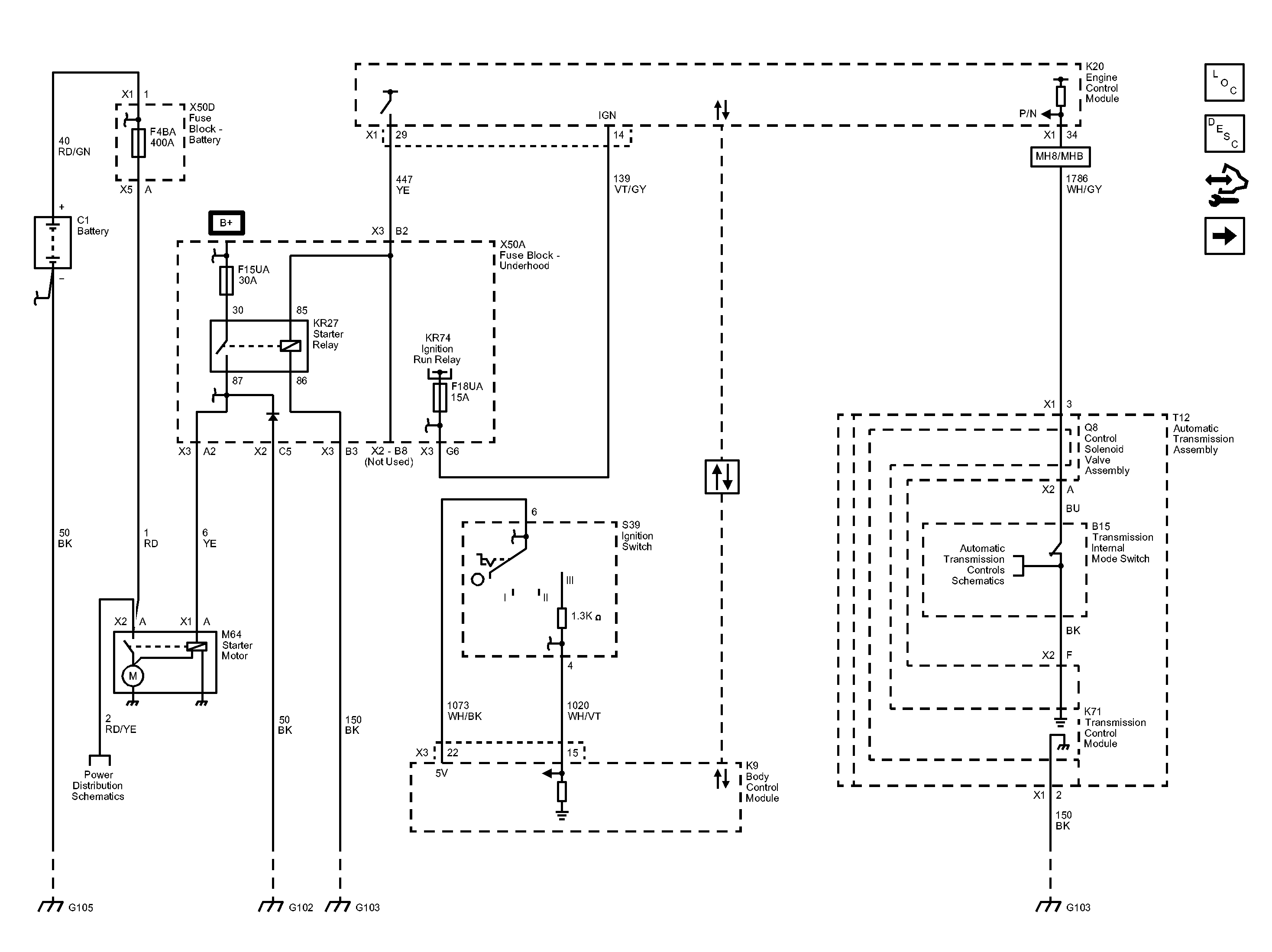

Fig 1: Starting System Wiring Schematic

GM2884948

Courtesy of GENERAL MOTORS COMPANY
