Installation Procedure

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

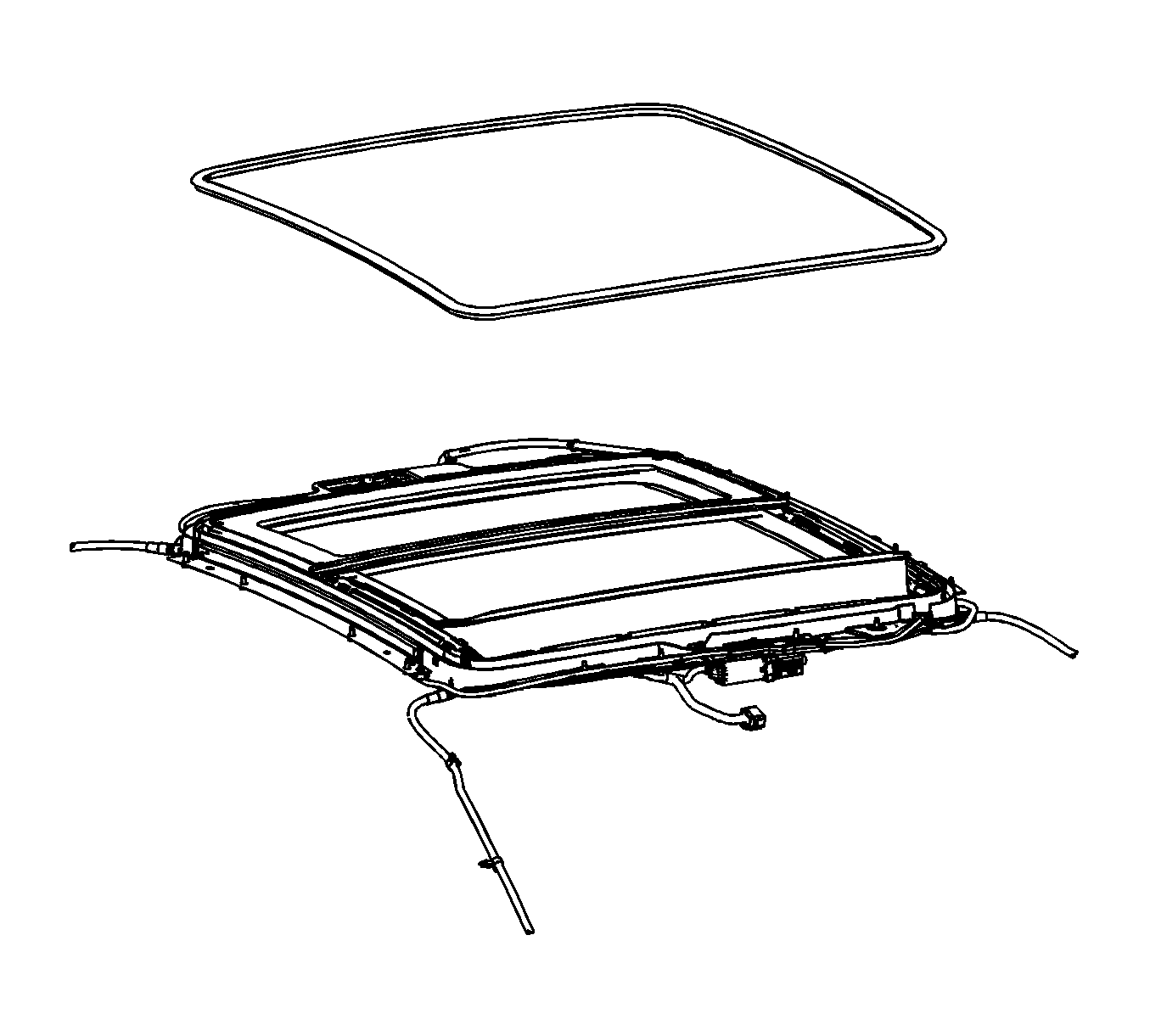

Fig 1: Window Outer Seal

Courtesy of GENERAL MOTORS CORP.

NOTE:

Position the window outer seal with the sunroof in the front area on markings.
Cut off the window seal at the lower area of the opening of the sunroof.

Install the window outer seal.
1. Insert the window outer seal into the guide.
2. Cut off the extra window seal and glue the end to the abutting seal (super glue).
Install the sunroof housing assembly. Refer to Sunroof Housing Replacement .
Install the headlining. Refer to Headlining Trim Panel Replacement (With Sunroof) or Headlining Trim Panel Replacement (Without Sunroof) .
