Sunroof Actuator Trim Cover Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

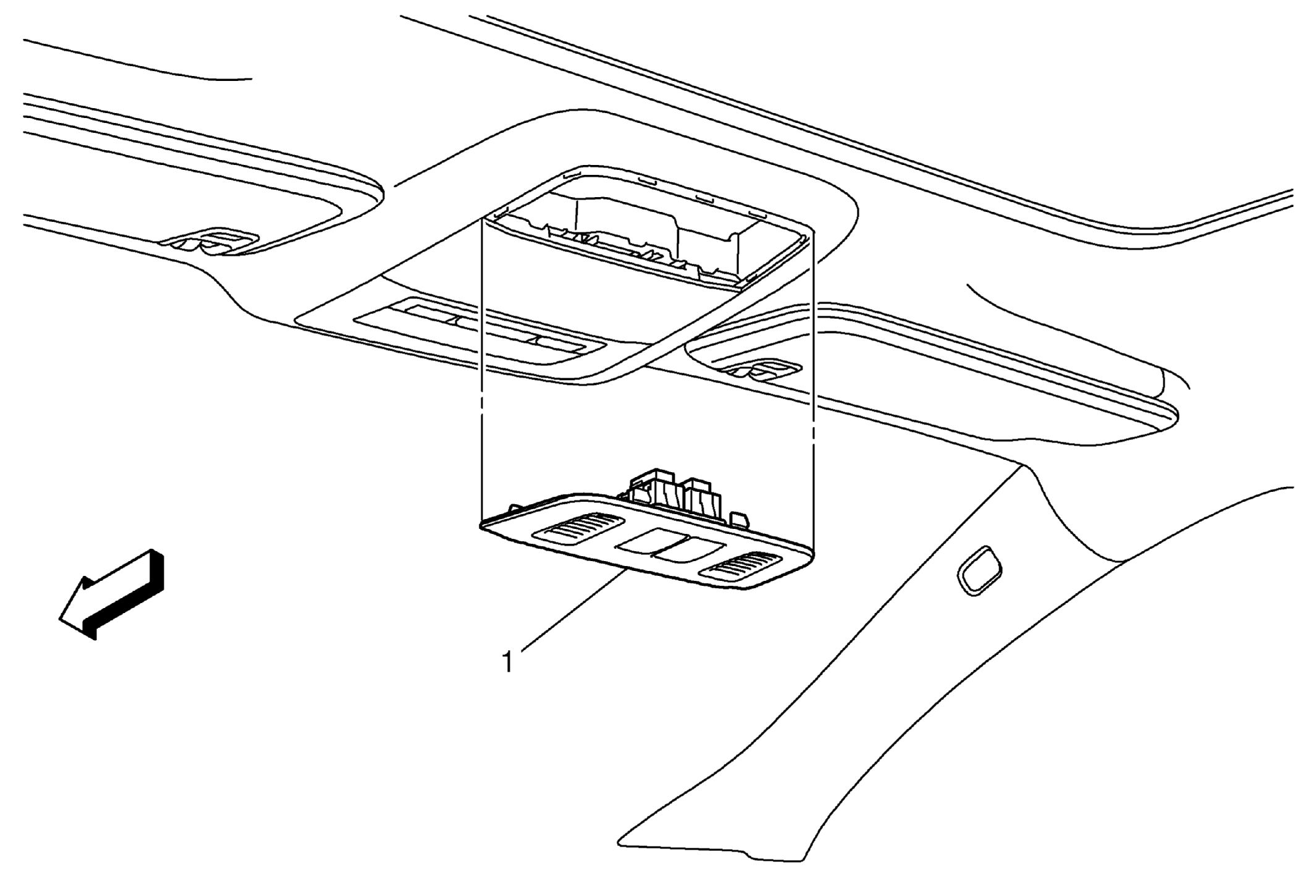

| Callout |
Component Name |
| 1 |
Sunroof Actuator Trim Cover
Procedure:
Disconnect the electrical connector.
Tip:
Carefully use a flat-bladed tool to release the retainer from the sunroof actuator trim cover to the roof console. |
