High Speed GMLAN (2 Of 2)
High Speed GMLAN (2 Of 2)

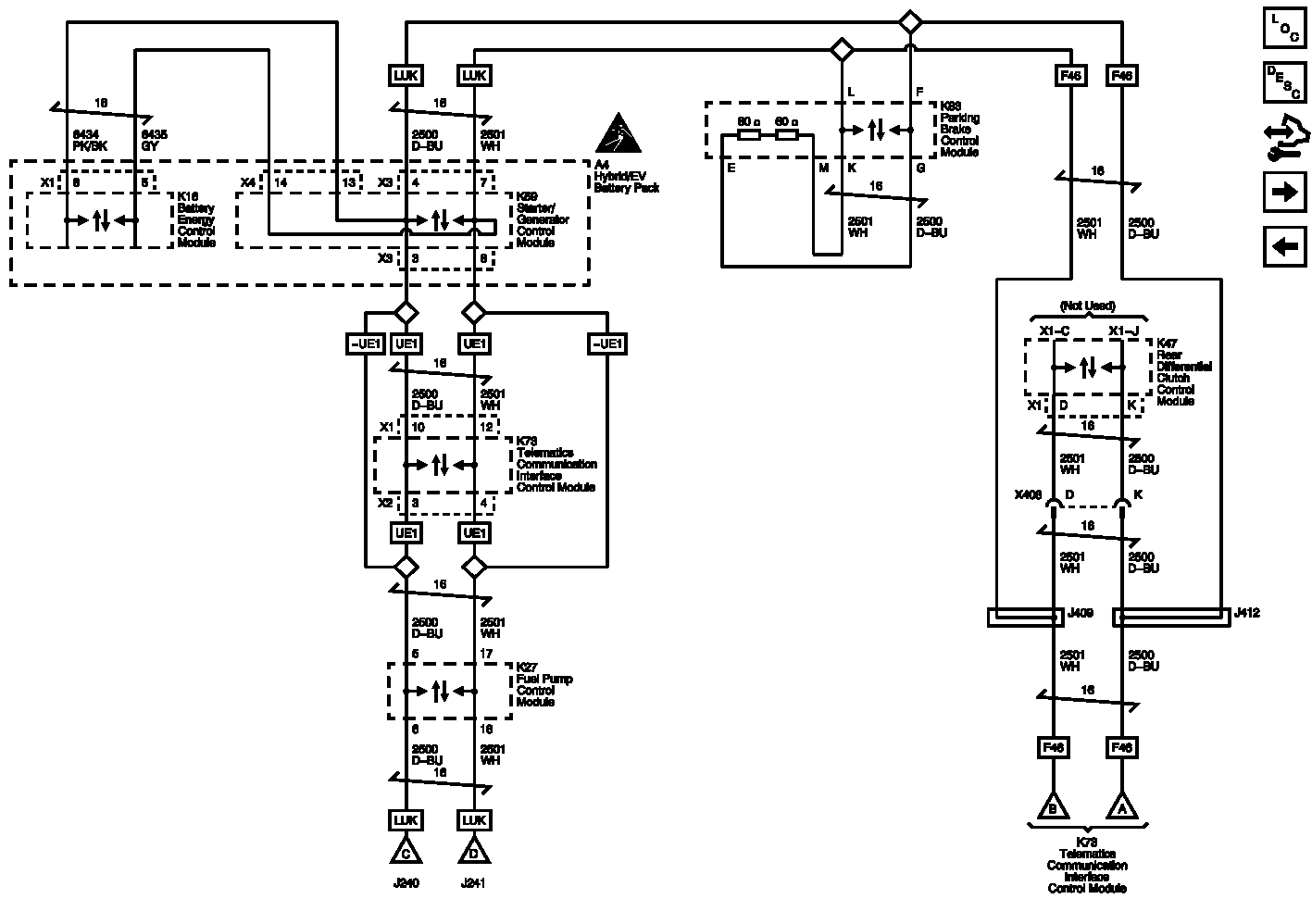

Fig 1: High Speed GMLAN (2 Of 2) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
