Power Steering Wiring Schematics

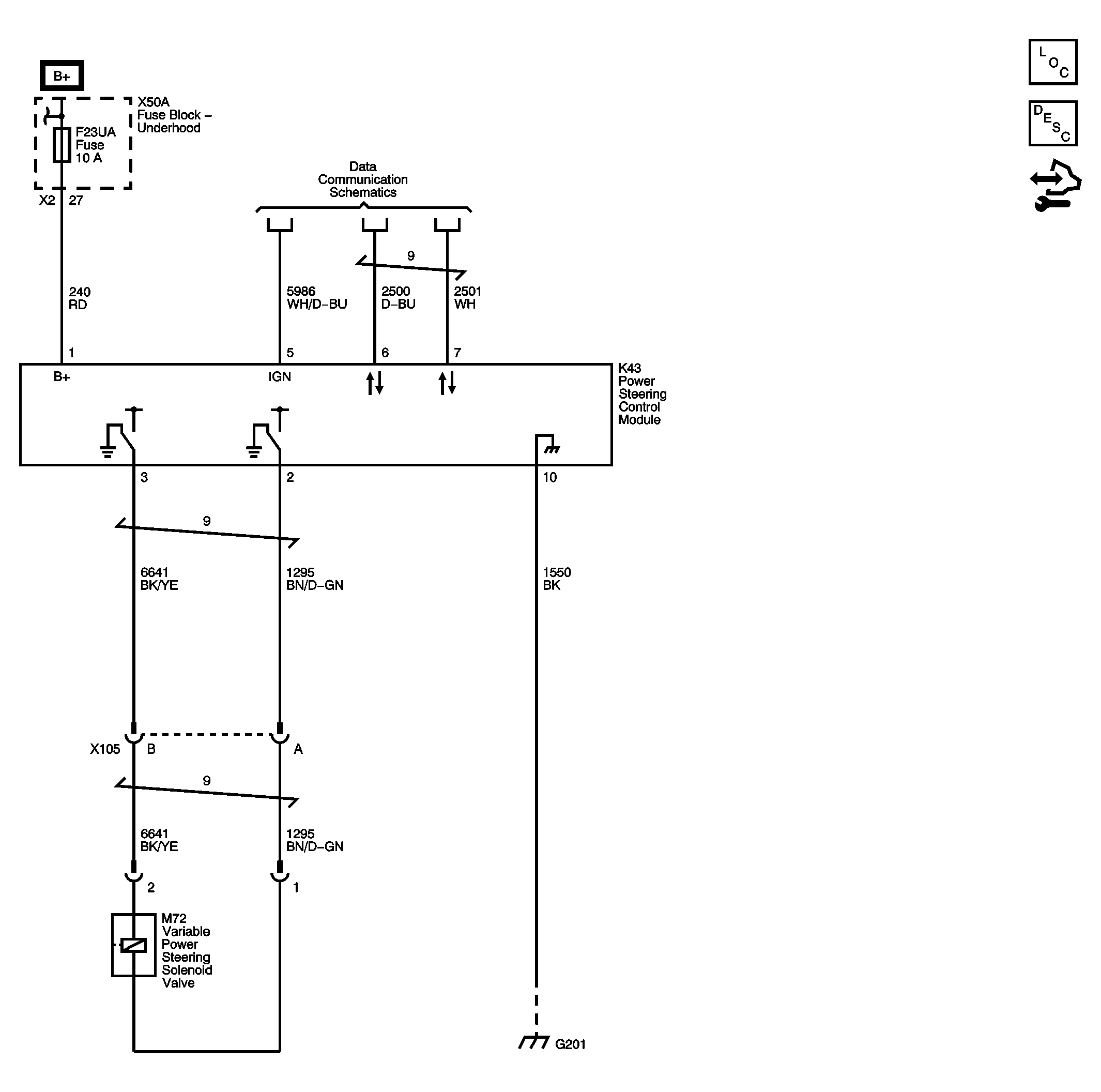

Fig 1: Variable Effort Steering (NXC) Wiring Schematic

GM2376637

Courtesy of GENERAL MOTORS CORP.
