Power Steering Pump Replacement

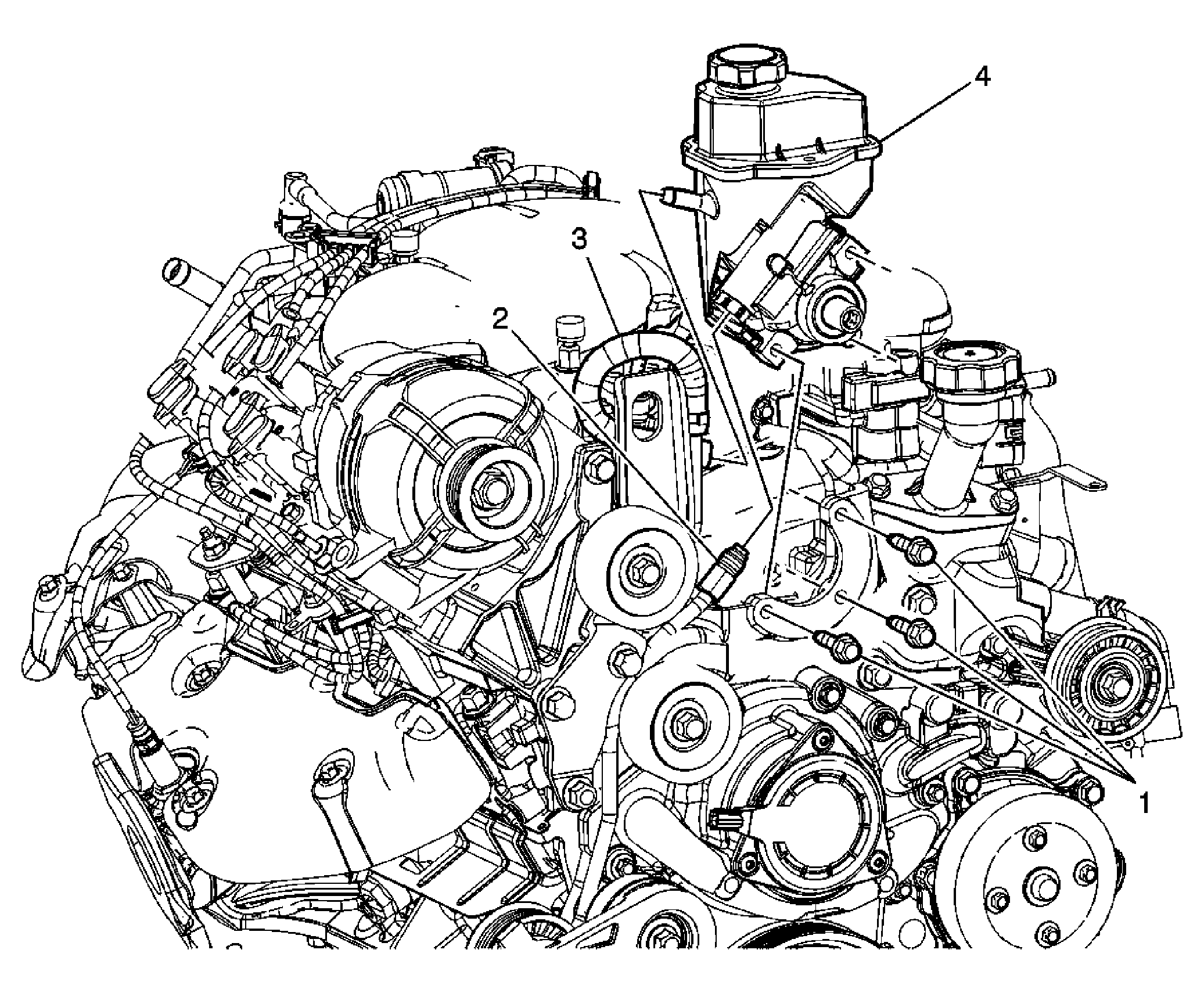

Fig 1: Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the drive belt. Refer to Drive Belt Replacement . Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
1	Bolt, Power Steering Pump (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 34 N.m (25 lb ft)
2	Fitting, Power Steering Gear Inlet Pipe/Hose Tighten: 27 N.m (20 lb ft) Tip: Discard the O-ring seal and use a NEW O-ring seal prior to installation.
3	Power Steering Pump Inlet Pipe/Hose Tip: Compress the clamp and disconnect the power steering pump inlet pipe/hose from the reservoir.
4	Pump, Power Steering Tip: After installation, fill and bleed the power steering system. Refer to Power Steering System Bleeding .
