Liftgate Release Switch Connector End View

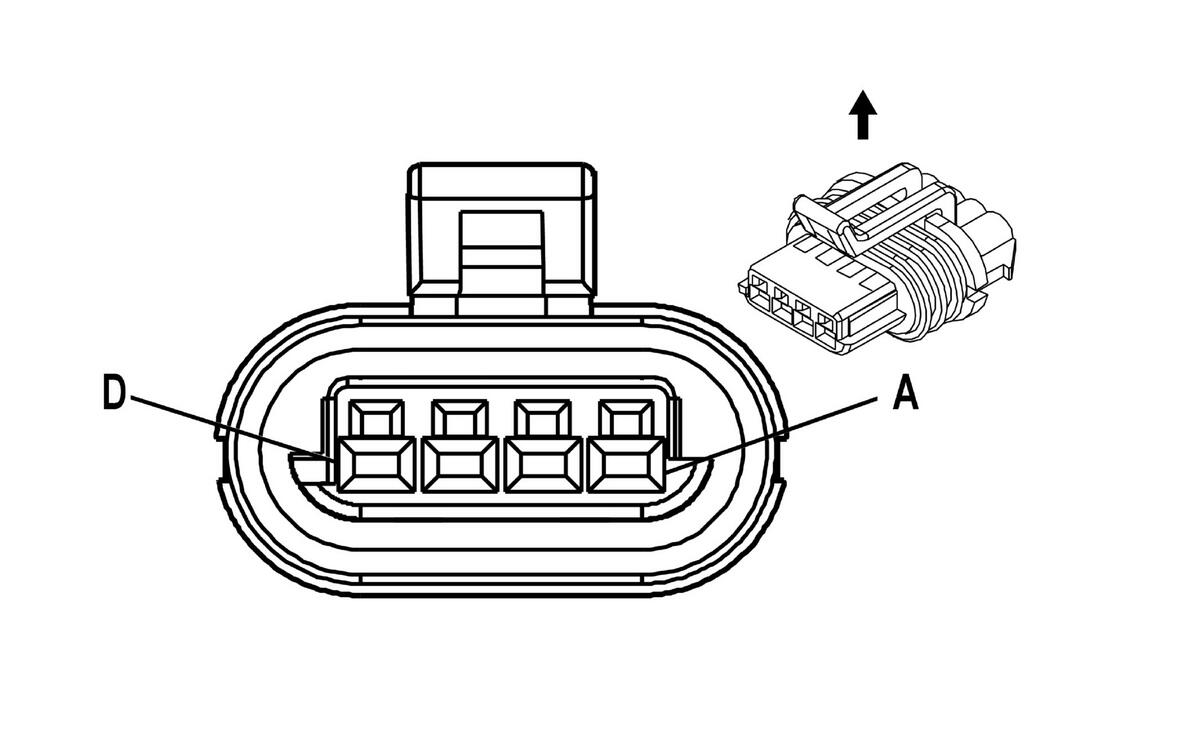

Fig 1: Liftgate Release Switch Connector End View
GM655858Courtesy of GENERAL MOTORS CORP.
Liftgate Release Switch Connector Part Information

Connector Part Information
  • OEM: 15336846
  • Service: 88986450
  • Description: 3-Way F GT 150 Series Sealed (BU)
Terminal Part Information
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Liftgate Release Switch Connector End View

Pin Wire Color Circuit No. Function
A - - Not Used
B - - Not Available
C BK 1150 Ground
D WH/BK 1221 Liftgate Release Switch Signal
