Installation Procedure

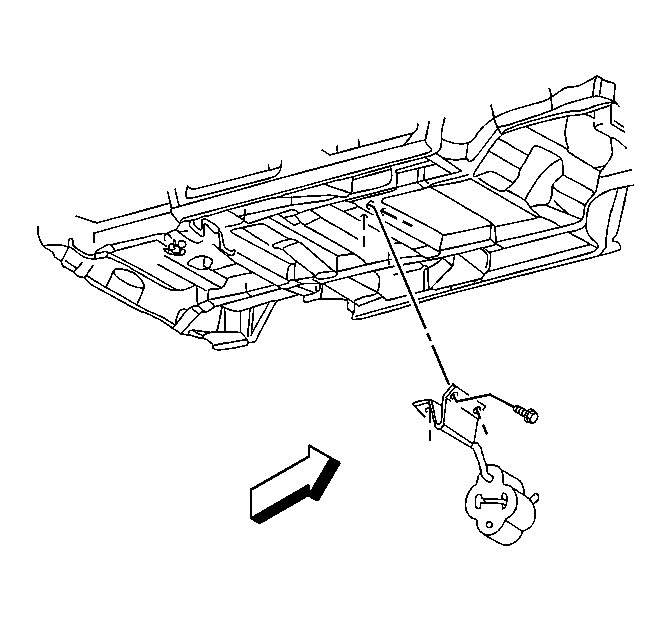

    Fig 1: Catalytic Converter Hanger
    GM1645227Courtesy of GENERAL MOTORS CORP.
  1. Install the catalytic converter hanger.
    2. NOTE: Refer to Fastener Notice .
  2. Install the catalytic converter hanger bolts.

    Tighten:  Tighten the bolts to 45 N.m (33 lb ft).

  3. Install the catalytic converter hanger insulator to the catalytic converter.
  4. Lower the vehicle.
