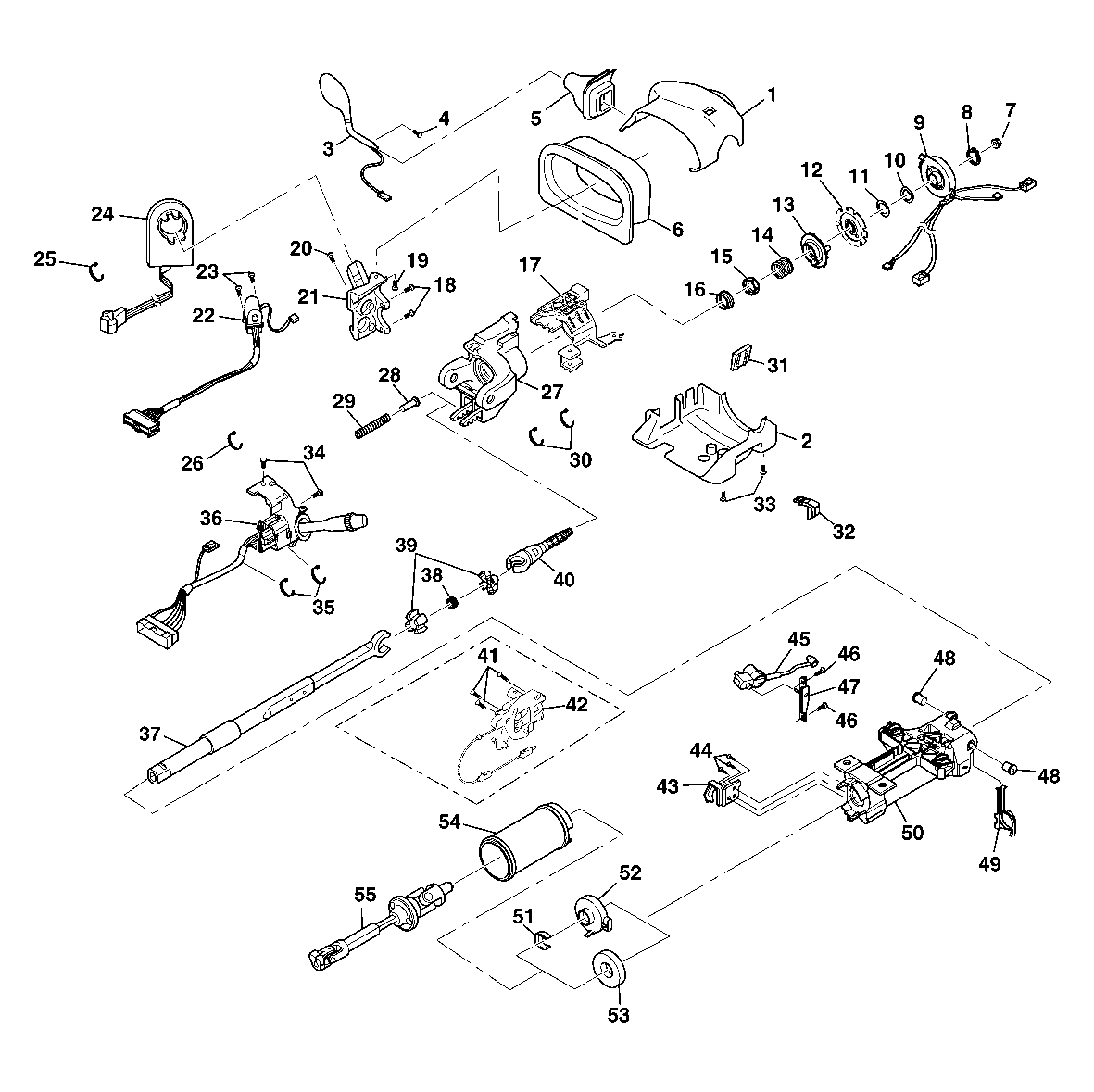

| 1 |
Upper Trim Cover |
| 2 |
Lower Trim Cover |
| 3 |
Shift Lever Assembly |
| 4 |
Shift Lever Screw |
| 5 |
Shift Lever Seal |
| 6 |
Steering Column Closeout Trim Cover |
| 7 |
Hexagon Locking Nut |
| 8 |
Retaining Ring |
| 9 |
SIR Coil |
| 10 |
Wave Washer |
| 11 |
Bearing Retainer |
| 12 |
Shaft Lock Shield Assembly |
| 13 |
Turn Signal Cancel Cam Assembly |
| 14 |
Upper Bearing Spring |
| 15 |
Upper Bearing Inner Race Seat |
| 16 |
Inner Race |
| 17 |
Signal Switch Housing Assembly |
| 18 |
Pan Head Tapping Screws |
| 19 |
TORX® Head Screw |
| 20 |
Pan Head Tapping Screw |
| 21 |
Ignition Lock Cylinder Case |
| 22 |
Ignition Switch Assembly |
| 23 |
Tapping Screws |
| 24 |
Theft Deterrent Control Module |
| 25 |
Wire Harness Strap |
| 26 |
Wire Harness Strap |
| 27 |
Steering Column Tilt Head Assembly |
| 28 |
Spring Guide |
| 29 |
Tilt Spring |
| 30 |
Wire Harness Straps |
| 31 |
Trim Cover Protector |
| 32 |
Tilt Knob |
| 33 |
Pan Head Tapping Screws |
| 34 |
Pan Head Tapping Screws |
| 35 |
Wire Harness Straps |
| 36 |
Turn Signal and Multifunction Switch Assembly |
| 37 |
Lower Steering Shaft Assembly |
| 38 |
Joint Preload Spring |
| 39 |
Centering Sphere |
| 40 |
Race and Upper Shaft Assembly |
| 41 |
Flat Head 6-Lobed Socket Tapping Screws |
| 42 |
Linear Shift Shaft Assembly |
| 43 |
Cable Support Bracket |
| 44 |
Flat Head Screws |
| 45 |
Automatic Transmission Shift Lock Control |
| 46 |
Pan Head Tapping Screws |
| 47 |
Automatic Transmission Shift Lock Control Mounting Bracket Assembly |
| 48 |
Pivot Pins |
| 49 |
Wire Restraint Clip |
| 50 |
Steering Column Support Assembly |
| 51 |
Sensor Locator |
| 52 |
Steering Shaft Position Sensor |
| 53 |
Steering Shaft Seal |
| 54 |
Boot Seal |
| 55 |
Intermediate Steering Shaft Assembly |
