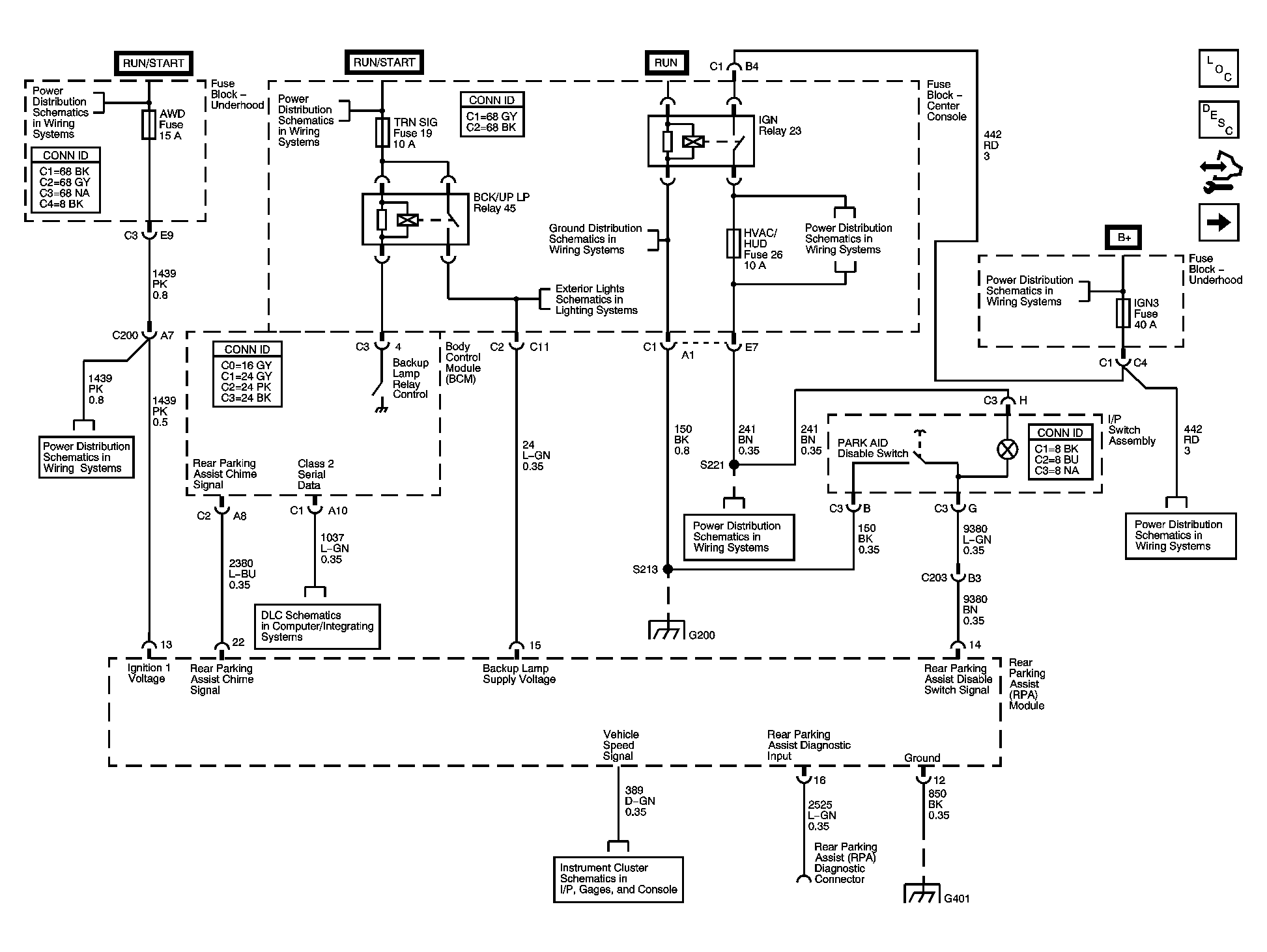

Home >> Buick >> 2006 >> Rendezvous CX, 3.5 L, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Object Detection System >> Schematic and Routing Diagrams >> Object Detection Schematics
