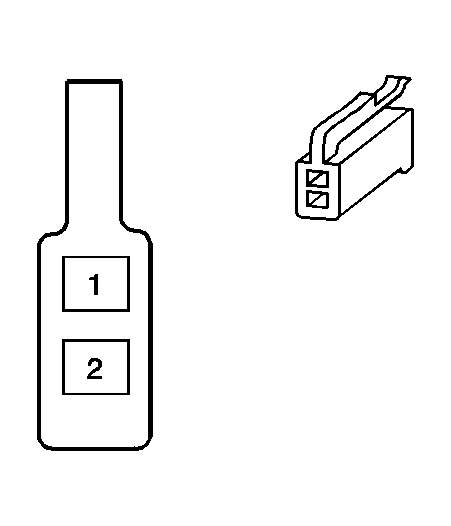

Radio Antenna Module Connector End View C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12186511 2-Way F (BLK)
Pin	Wire Color	Circuit No.	Function
1	BLK	-	Rear Defog/FM Antenna
2	WHT	-	AM Antenna
