Stop Lamp/AT Shift Lock Control Switch Connector End View C1
Stop Lamp/AT Shift Lock Control Switch Connector End View C1

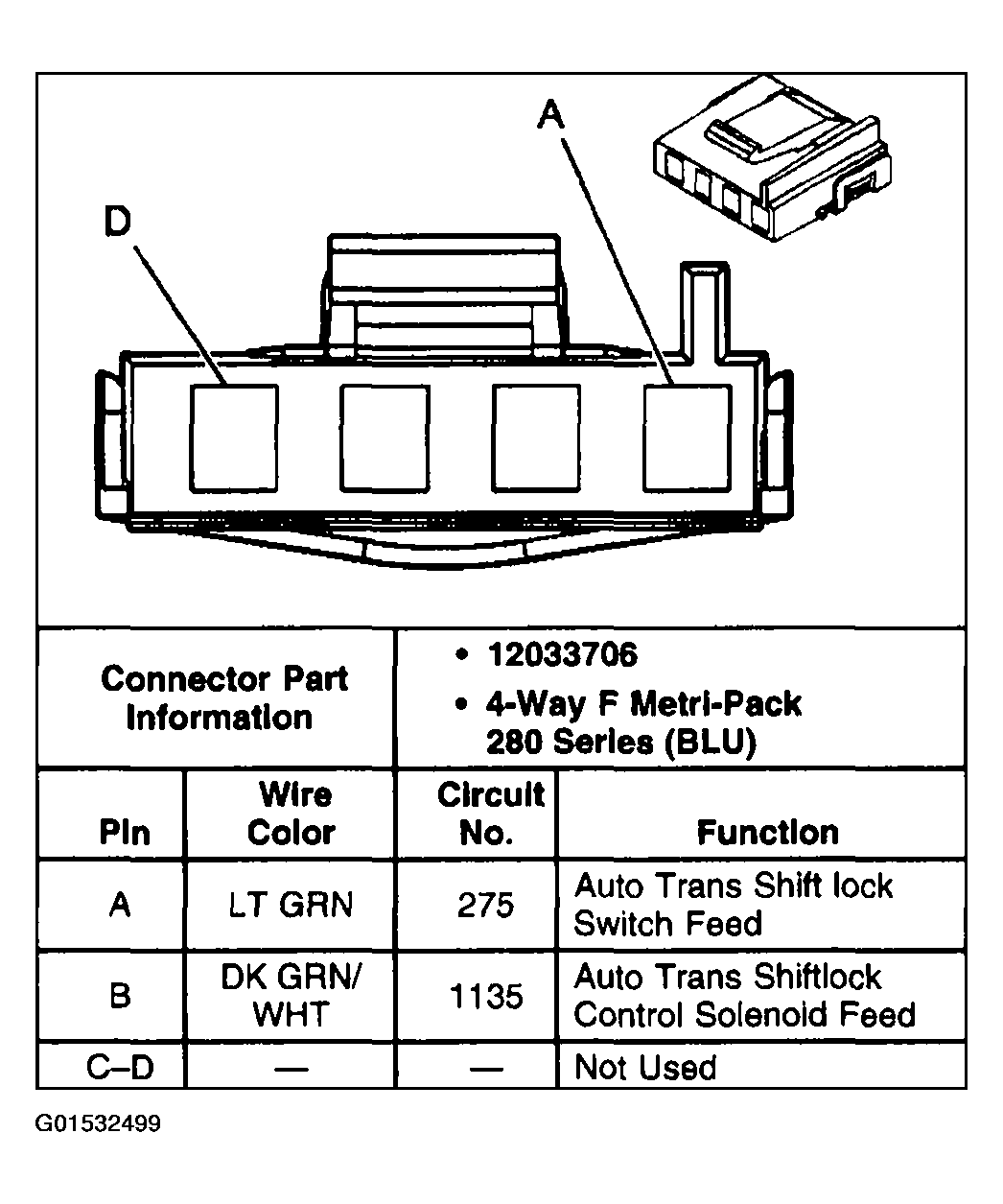

Fig 1: Stop Lamp/AT Shift Lock Control Switch C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
