LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
2003
>>
Park Avenue Base
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
Stop Lamp Switch Connector End View
Stop Lamp Switch Connector End View

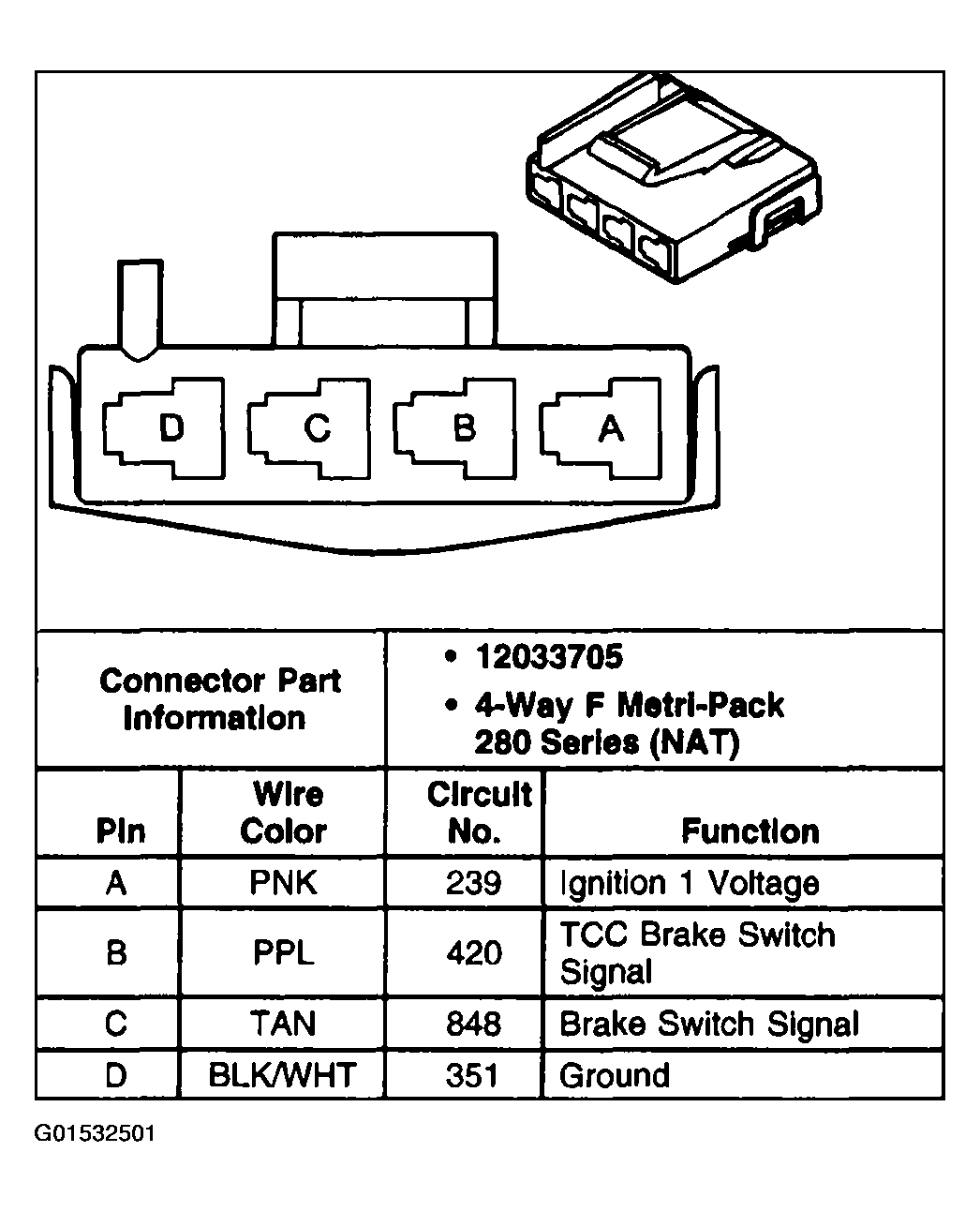

Fig 1: Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Fig 1: Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
