Seat Horizontal Position Sensor Connector End View - Driver

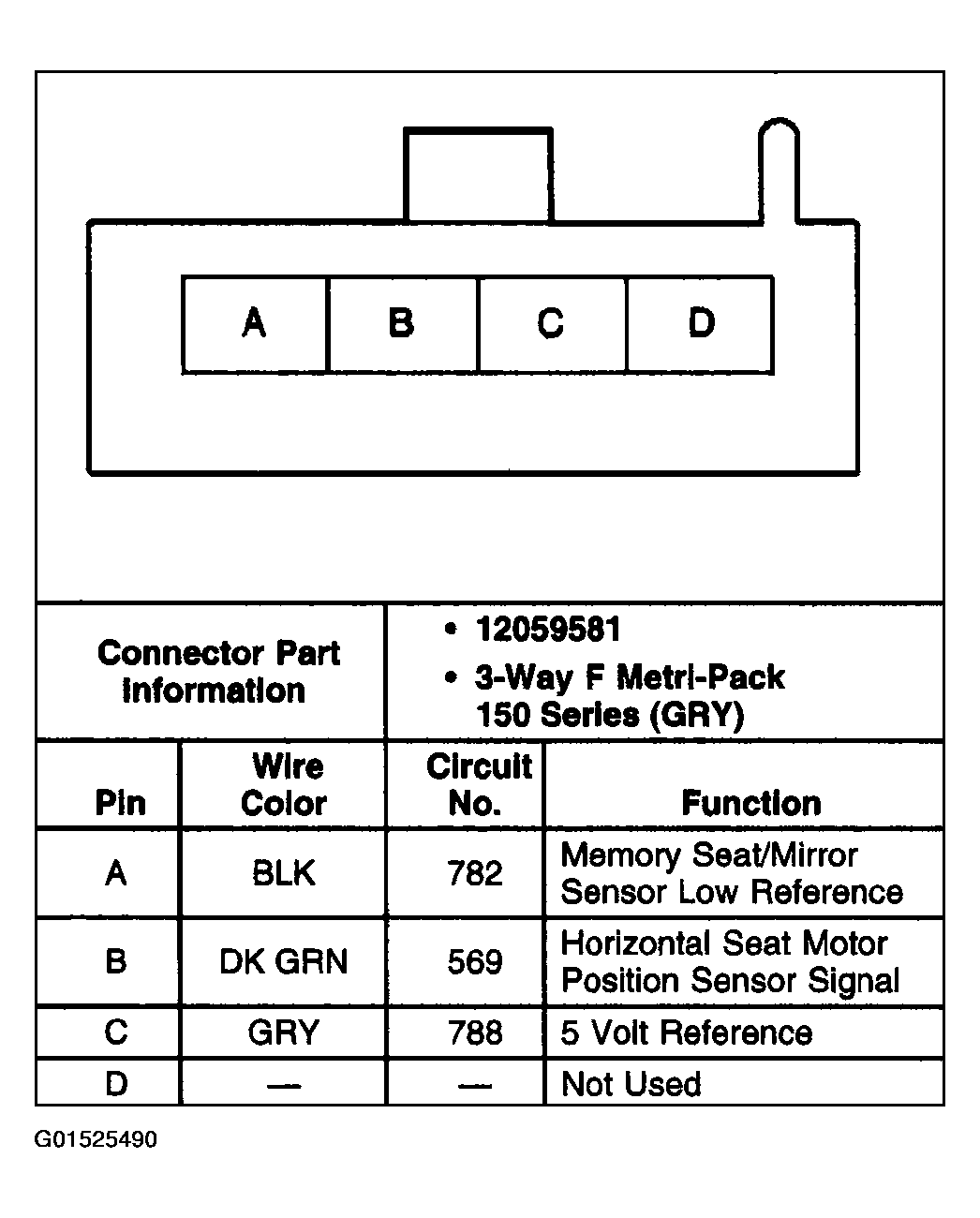

Fig 1: Seat Horizontal Position Sensor - Driver

G01525490

Courtesy of GENERAL MOTORS CORP.
