Recirculation Actuator Connector End View

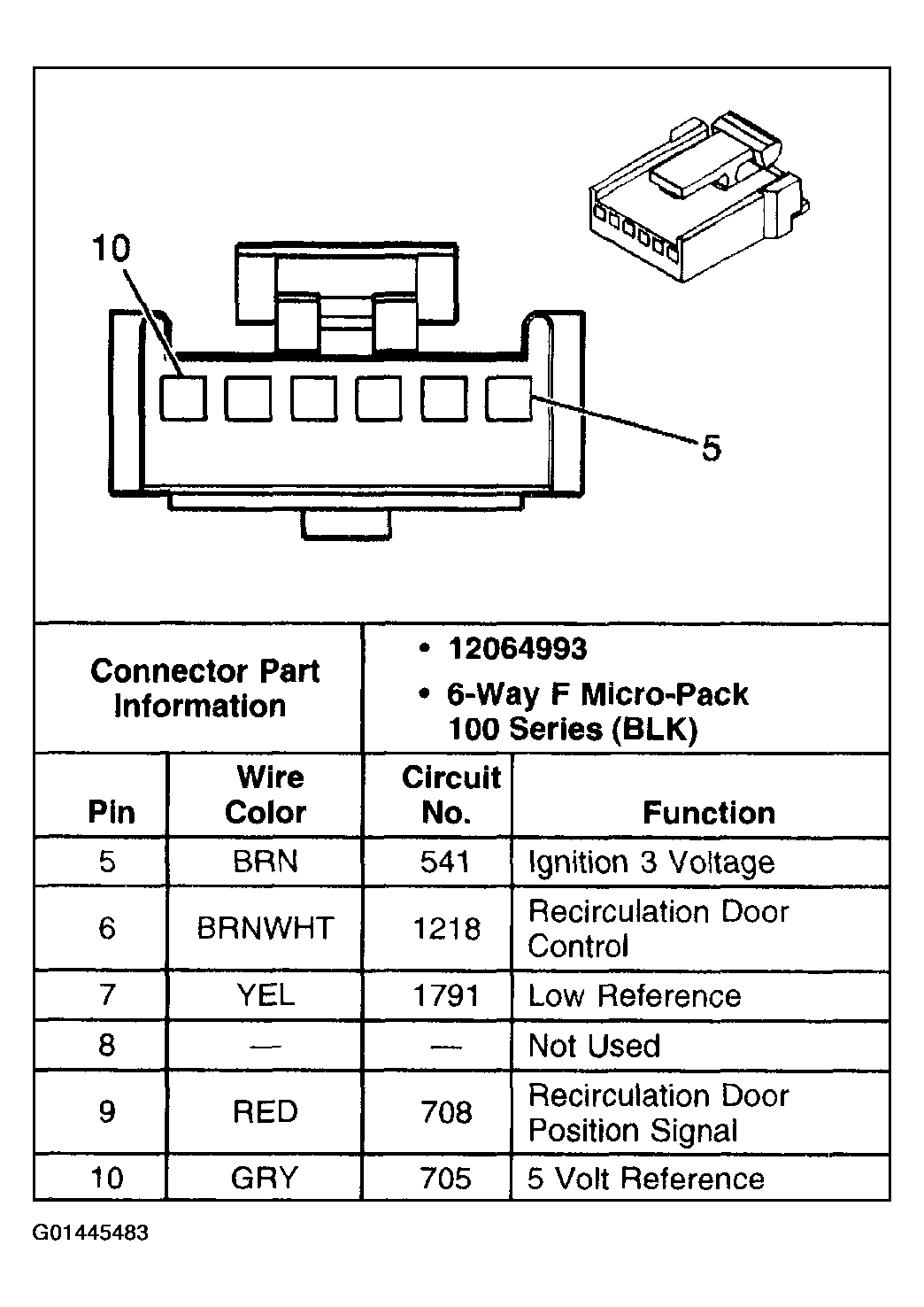

Fig 1: Recirculation Actuator

G01445483

Courtesy of GENERAL MOTORS CORP.
