Radio Antenna Module Connector End View C2

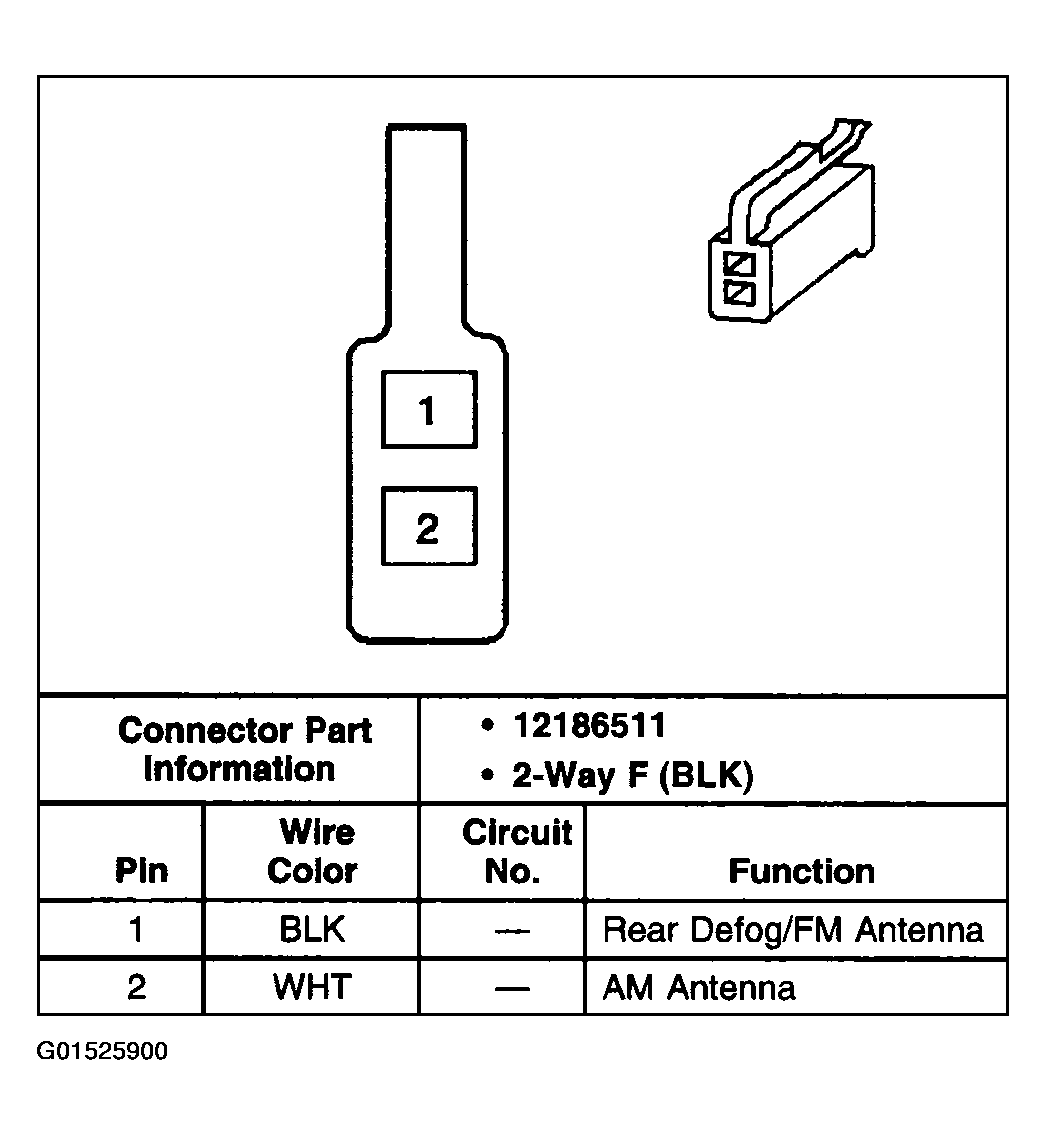

Fig 1: Radio Antenna Module C2

G01525900

Courtesy of GENERAL MOTORS CORP.
