Radio Antenna Module Connector End View C1

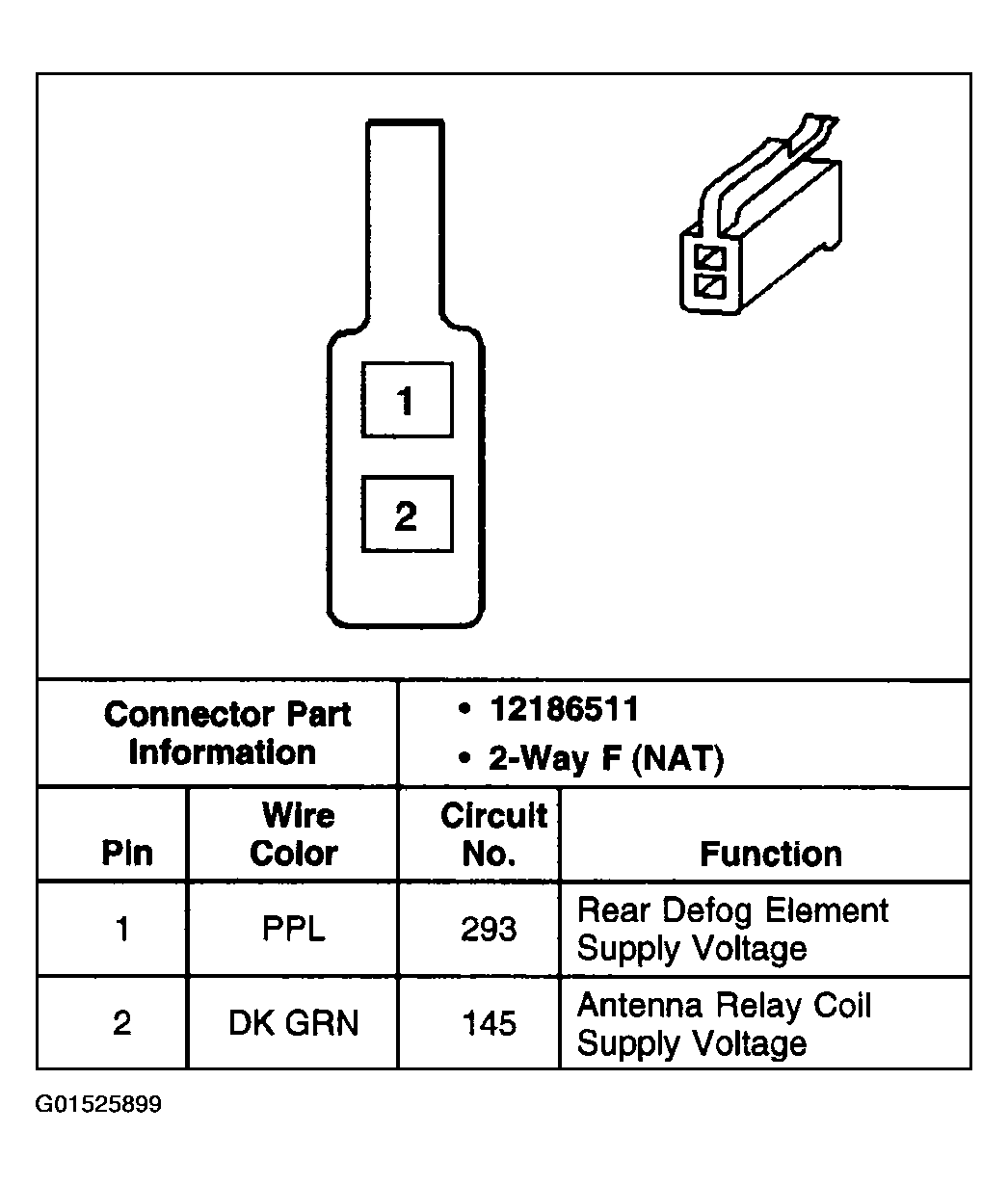

Fig 1: Radio Antenna Module C1

G01525899

Courtesy of GENERAL MOTORS CORP.
