IP Dimming Module Connector End View

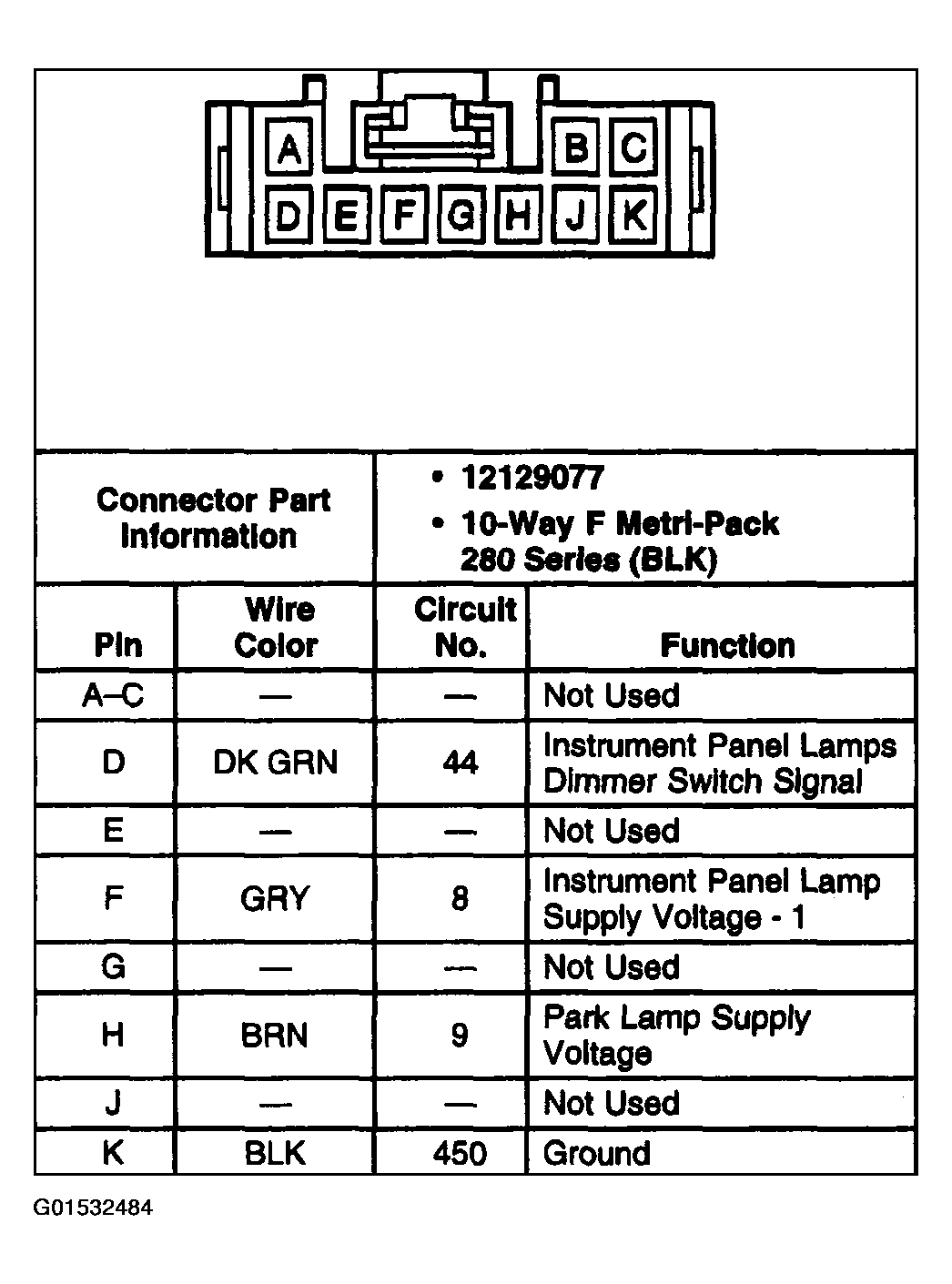

Fig 1: IP Dimming Module

G01532484

Courtesy of GENERAL MOTORS CORP.
