Driver Information Center Switch Connector End View

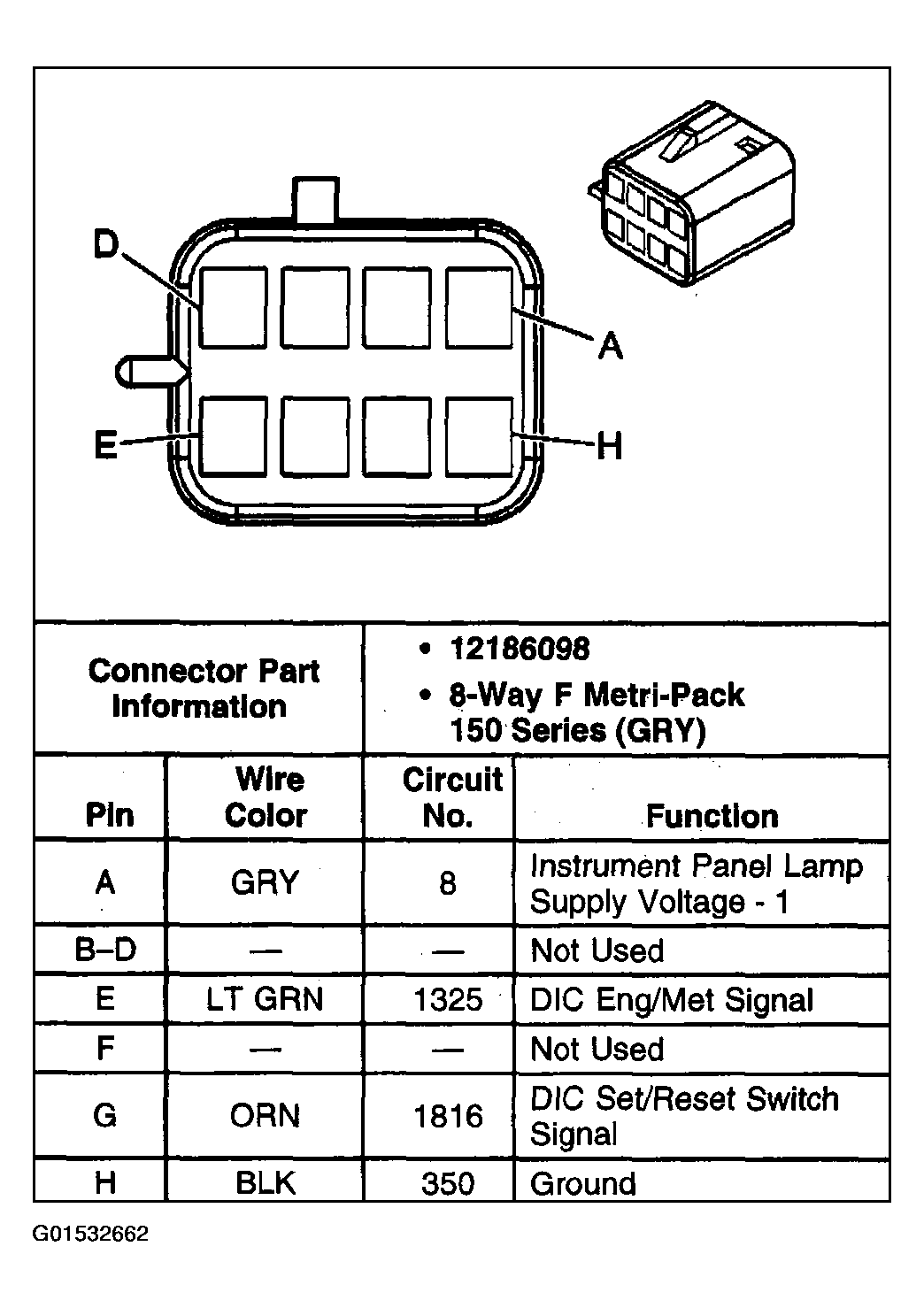

Fig 1: Driver Information Center Switch (With UB7)

Courtesy of GENERAL MOTORS CORP.

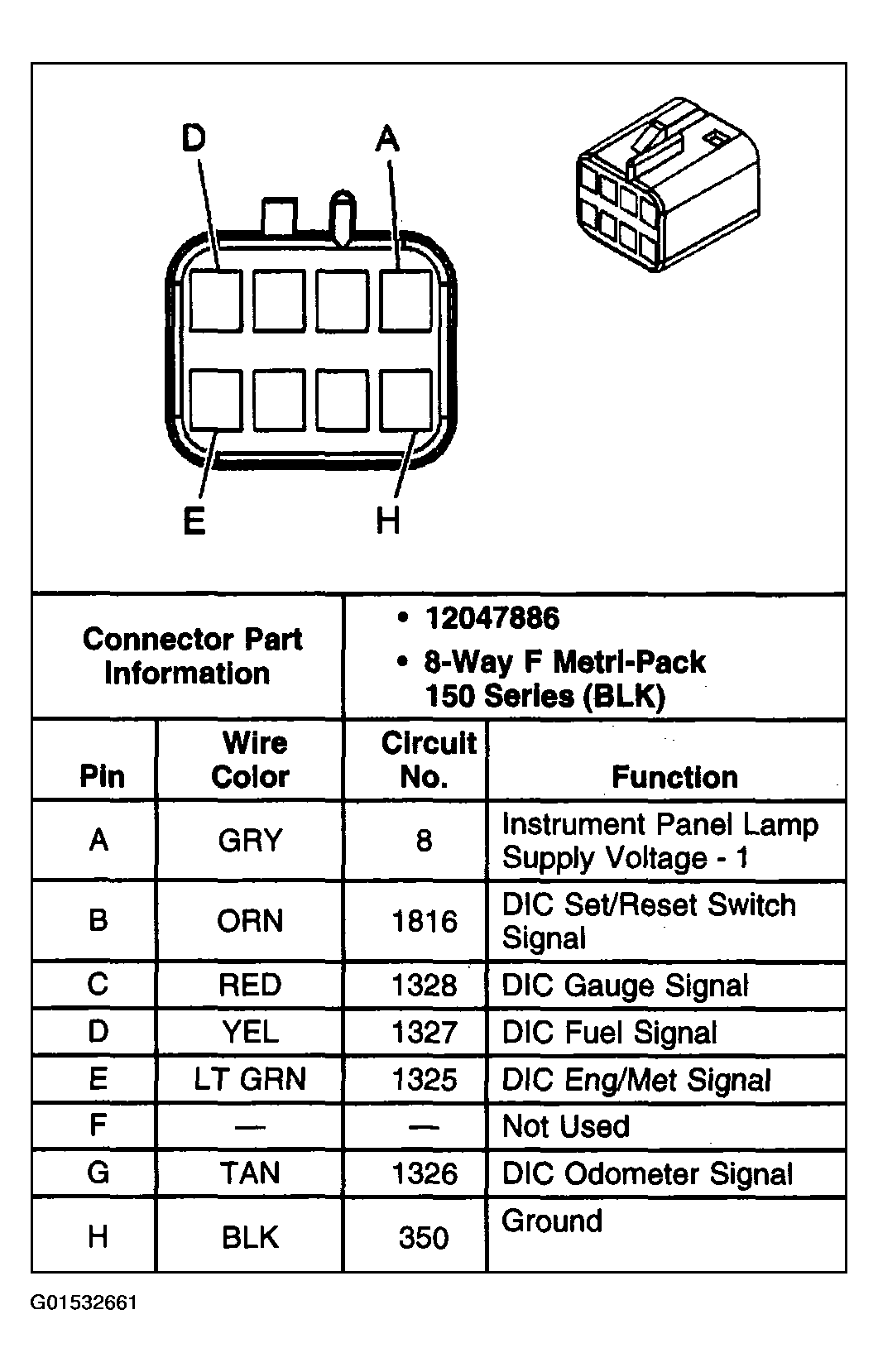

Fig 1: Driver Information Center Switch (With UH8)

Courtesy of GENERAL MOTORS CORP.
