Shift Speed Specifications

NOTE: For shift speed specifications, see Fig 1 .

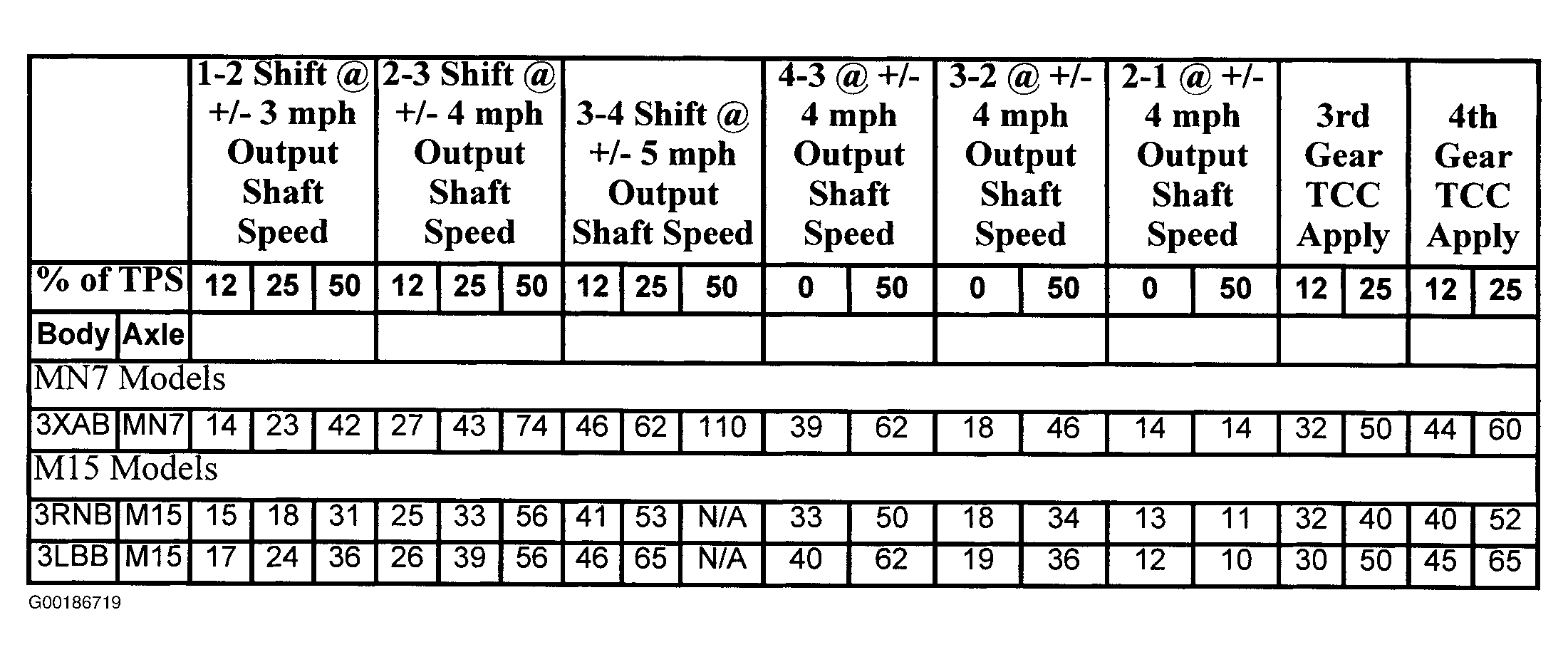

Fig 1: Shift Speed Specifications
G00186719Courtesy of GENERAL MOTORS CORP.
