Steering Column Disassembled View (Floor Shift)

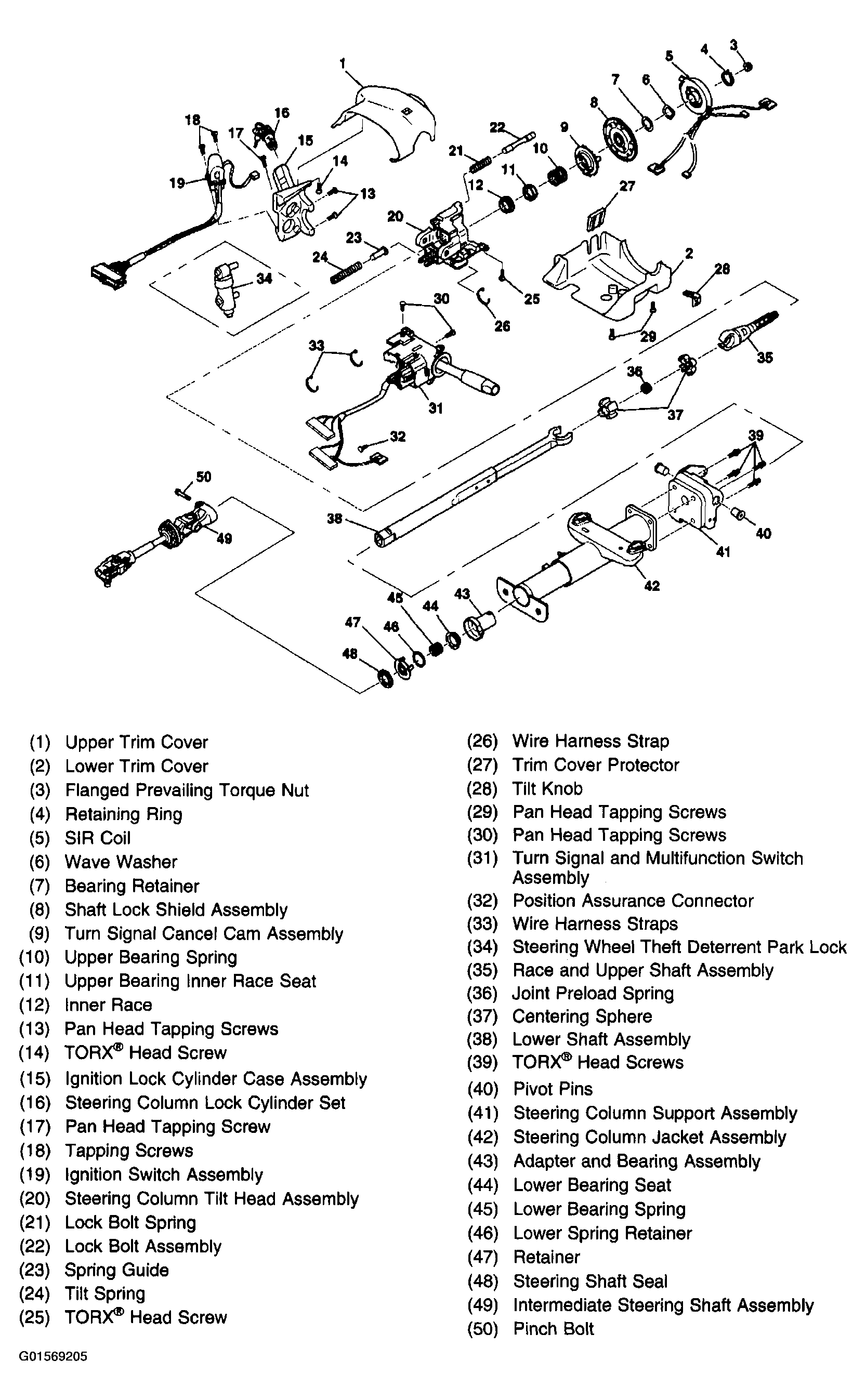

Fig 1: Exploded View Of Tilt Steering Column, Floor Shift

G01569205

Courtesy of GENERAL MOTORS CORP.
