Installation Procedure
WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

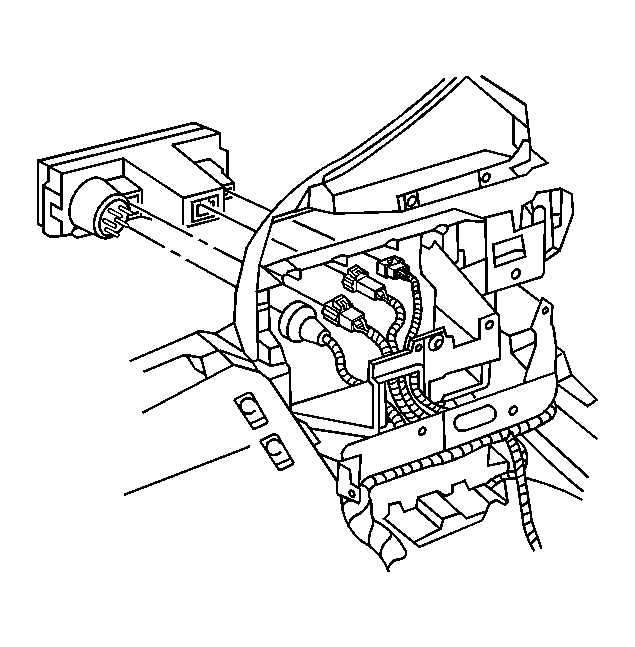

- Connect the electrical connectors and the vacuum harness to the HVAC control assembly.

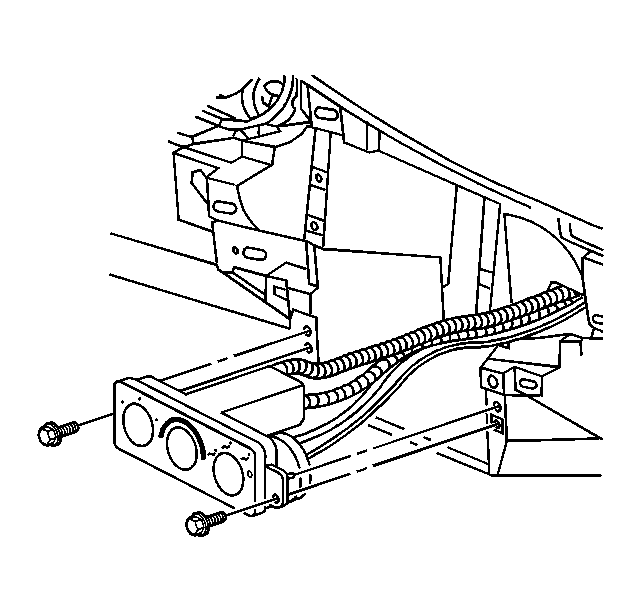

- Install the HVAC control assembly into the I/P.
- Install the retaining screws to secure the HVAC control assembly.
Tighten: Tighten the screws to 2 N.m (18 lb in).
- Install the front floor console. Refer to Console Replacement - Front Floor in Instrument Panel, Gages, and Console.
- Start the engine and run for one minute.
IMPORTANT:
The key should be in the off position when connecting the electrical connectors to ensure proper calibration.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
IMPORTANT:
Do not adjust any controls on the HVAC control module while the HVAC control module is calibrating. If interrupted improper HVAC performance will result.
