Instrument Panel Fuse Block (2003)
NOTE:

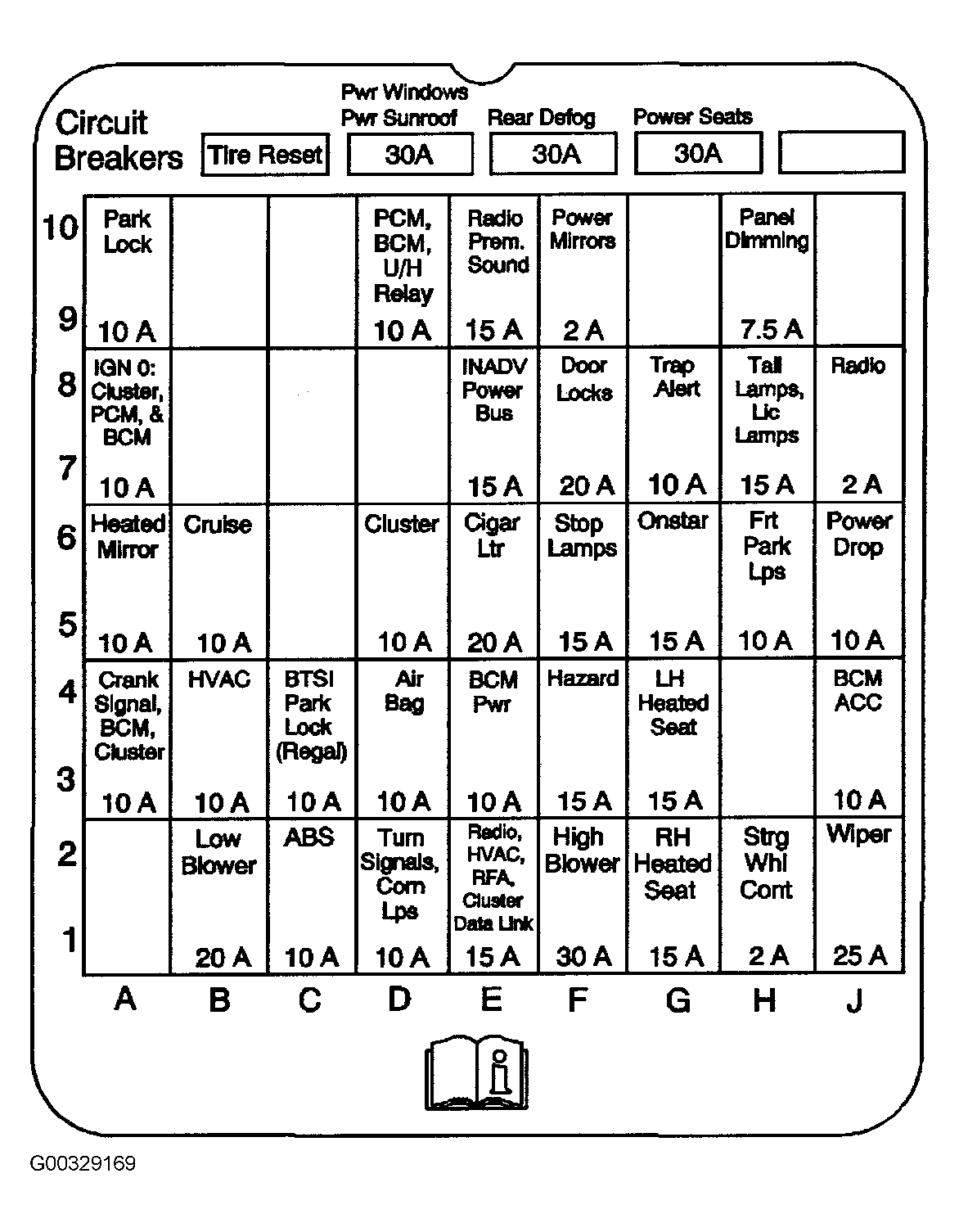

Instrument panel fuse block is located under passenger's side of instrument panel. See Fig 1.
INSTRUMENT PANEL FUSE BOX LEGEND (2003)
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| PWR WINDOWS PWR SUNROOF Circuit Breaker | 30 AMP | LF Window Switch (w/o CF5) and Sunroof Module (Express Open) 1 (CF5) |
| REAR DEFOG Circuit Breaker | 30 AMP | Rear Window Defogger Relay |
| POWER SEATS Circuit Breaker | 30 AMP | Driver Seat Adjuster Switch (AG1) and Passenger Seat Adjuster Switch (AG2) |
| PARK LOCK | 10 AMP | Automatic Transaxle Control (BTSI) |
| PCM, BCM, U/H RELAY | 10 AMP | CRANK and IGN MAIN Relays, Body Control Module (BCM) and Powertrain Control Module (PCM) |
| RADIO PREM SOUND | 15 AMP | Low Frequency Audio Amplifier (U85) and Remote CD Player |
| POWER MIRRORS | 2 AMP | Outside Remote Control Rearview Mirror Switch |
| PANEL DIMMING | 7.5 AMP | Radio, Headlamp Switch, Instrument Cluster and Heater-A/C Control (CJ3) |
| IGN 0: CLUSTER, PCM & BCM | 10 AMP | Powertrain Control Module (PCM), Body Control Module (BCM) and Instrument Cluster |
| INADV POWER BUS | 15 AMP | Body Control Module (BCM) and Accessory Time Delay (RAP) Relay (KP2) |
| DOORLOCKS | 20 AMP | Rear Compartment Lid Release Relay and Body Control Module (BCM) |
| TRAP ALERT | - | Not Used |
| TAIL LAMPS, LIC LAMPS | 15 AMP | PANEL DIMMING Fuse, Radio, Headlamp Switch, Instrument Cluster, Heater-A/C Control (CJ3), LR and RR Marker Lamp, LH and RH Tail/Stop/Turn Signal Lamp, LR and RR Park Lamps, Rear License Lamps |
| RADIO | 2 AMP | Radio |
| HEATED MIRROR | - | Not Used |
| CRUISE | 10 AMP | Cruise Control Switch (K34), Cruise Control Module (K34), and Cruise Control Release Switch |
| CLUSTER | 10 AMP | Instrument Cluster |
| CIGAR LTR | 20 AMP | Power Drop Connector, Cigar Lighter and Accessory Power Receptacle (If equipped) |
| STOP LAMPS | 15 AMP | Stop Lamps Switch |
| ONSTAR | 15 AMP | Vehicle Communications Interface Module (VCIM) |
| FRT PARK LPS | 10 AMP | LH and RH Headlamps |
| POWER DROP | 10 AMP | Console Compartment Lamp Switch (Regal) and Power Drop (Connector |
| CRANK SIGNAL, BCM, CLUSTER | 10 AMP | (Instrument Cluster, Body Control Module (BCM) and Powertrain Control Module (PCM) |
| HVAC | 10 AMP | Vacuum Control Assembly (CJ2), Rear Window Defogger Relay, LH and RH Air Temperature Actuators, HVAC Control Module, Inside Rearview Mirror (C79), Driver and Passenger Heated Seat Switches (KA1) |
| BTSI PARK LOCK (REGAL) | 10 AMP | Stop Lamp Switch (Century), A/T Shift Lock Control Switch (Regal), and Brake To Shift Relay |
| AIR BAG | 10 AMP | 1 (Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| BCM PWR | 10 AMP | Body Control Module (BCM) |
| HAZARD | 15 AMP | Turn Signal Switch |
| LH HEATED SEAT | 15 AMP | Driver Seat Heater Control Module (KA1) |
| BCM ACC | 10 AMP | Body Control Module (BCM) |
| LOW BLOWER | 20 AMP | HVAC Control Module (CJ3) |
| ABS | 10 AMP | Electronic Brake Control Module (EBCM) (JL9/JM4) |
| TURN SIGNALS, CORN LPS | 10 AMP | Turn Signal Switch |
| RADIO, HVAC, RFA, CLUSTER CEL TEL | 15 AMP | HVAC Control Module, Radio, Data Link Connector (DLC), Remote Control Door Lock Receiver (RCDLR) and Instrument Cluster |
| HIGH BLOWER | 30 AMP | Blower Motor Resistor Assembly (CJ3) and Blower Motor Control Processor (CJ2) |
| RH HEATED SEAT | 15 AMP | Passenger Heated Seat Control Module (Regal) |
| STRG WHL CONT | 2 AMP | Inflatable Restraint Steering Wheel Module Coil, LH and RH Radio Control Switches (UK3) |
| WIPER | 25 AMP | Windshield Wiper Motor and Windshield Wiper/Washer Switch |
