Removal Procedure
- Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF
in Interior Trim.
- Remove the rear seat sound barrier. Refer to SOUND BARRIER REPLACEMENT - REAR SEAT BACK
in Interior Trim.

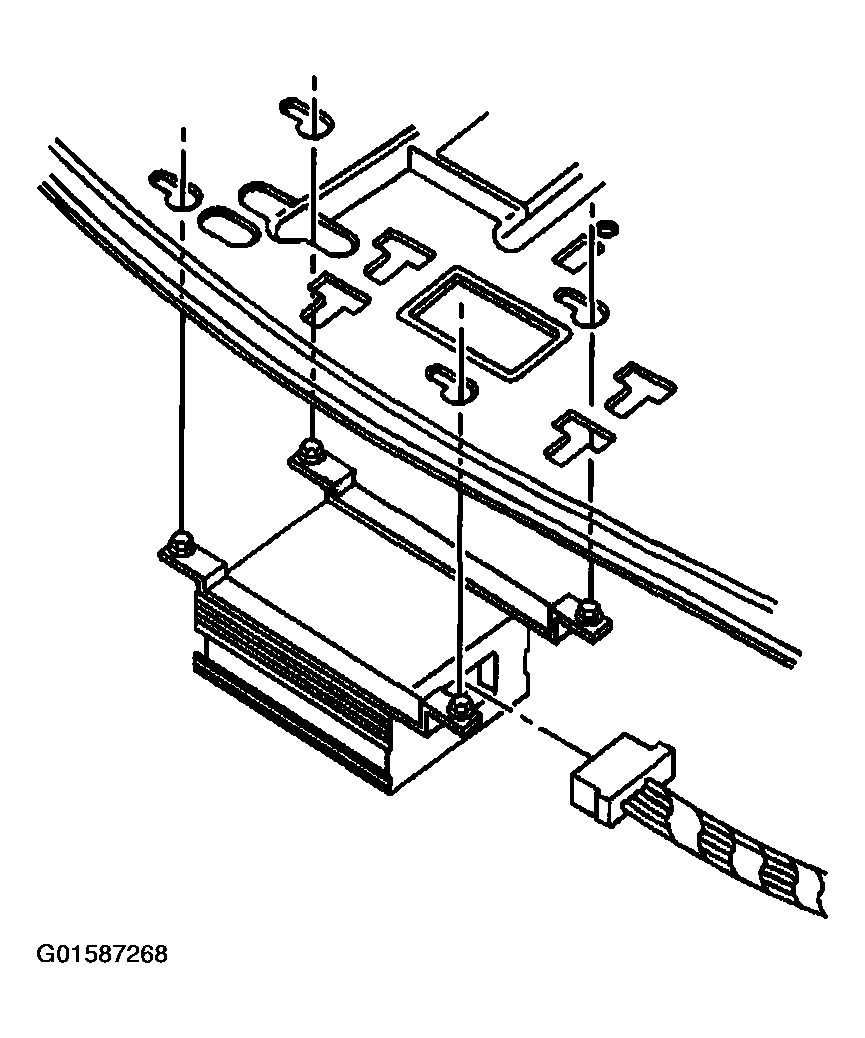

- Disconnect the electrical connector from the low frequency audio amplifier.
- Loosen the nuts on the low frequency audio amplifier.
- Move the low frequency audio amplifier to the right and down.
- Remove the low frequency audio amplifier from the rear shelf.
Courtesy of GENERAL MOTORS CORP.
