Installation Procedure

  1. Install the power steering pulley to the power steering pump Using J 25033-C  .
  2. Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in), plus or minus.

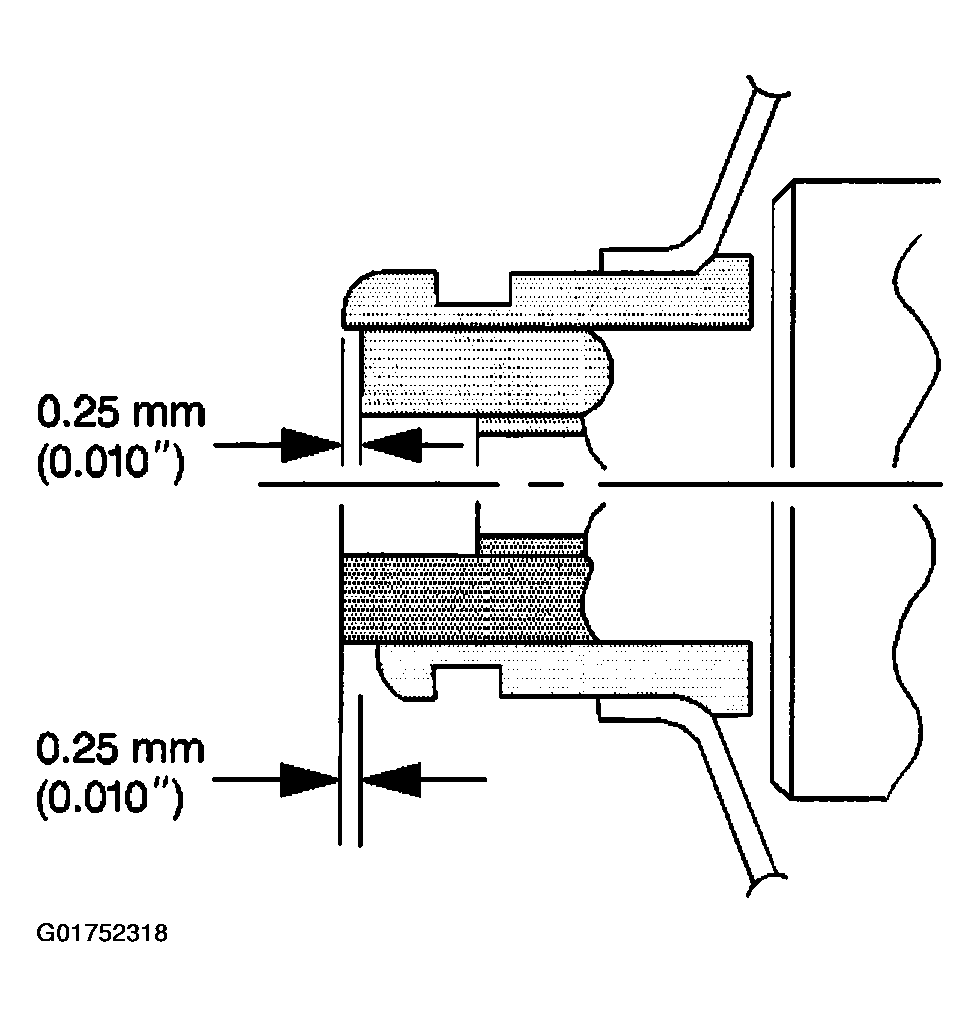

    3. Fig 1: Axial Tolerance Of Power Steering Pulley On Power Steering Pump
    G01752318Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering pump to the engine.
  4. Install the power steering pump drive belt.
  5. Bleed the power steering system. Refer to Bleeding Power Steering System .
  6. Inspect the power steering system for leaks.
