Seat Horizontal Position Sensor - Driver Connector End View

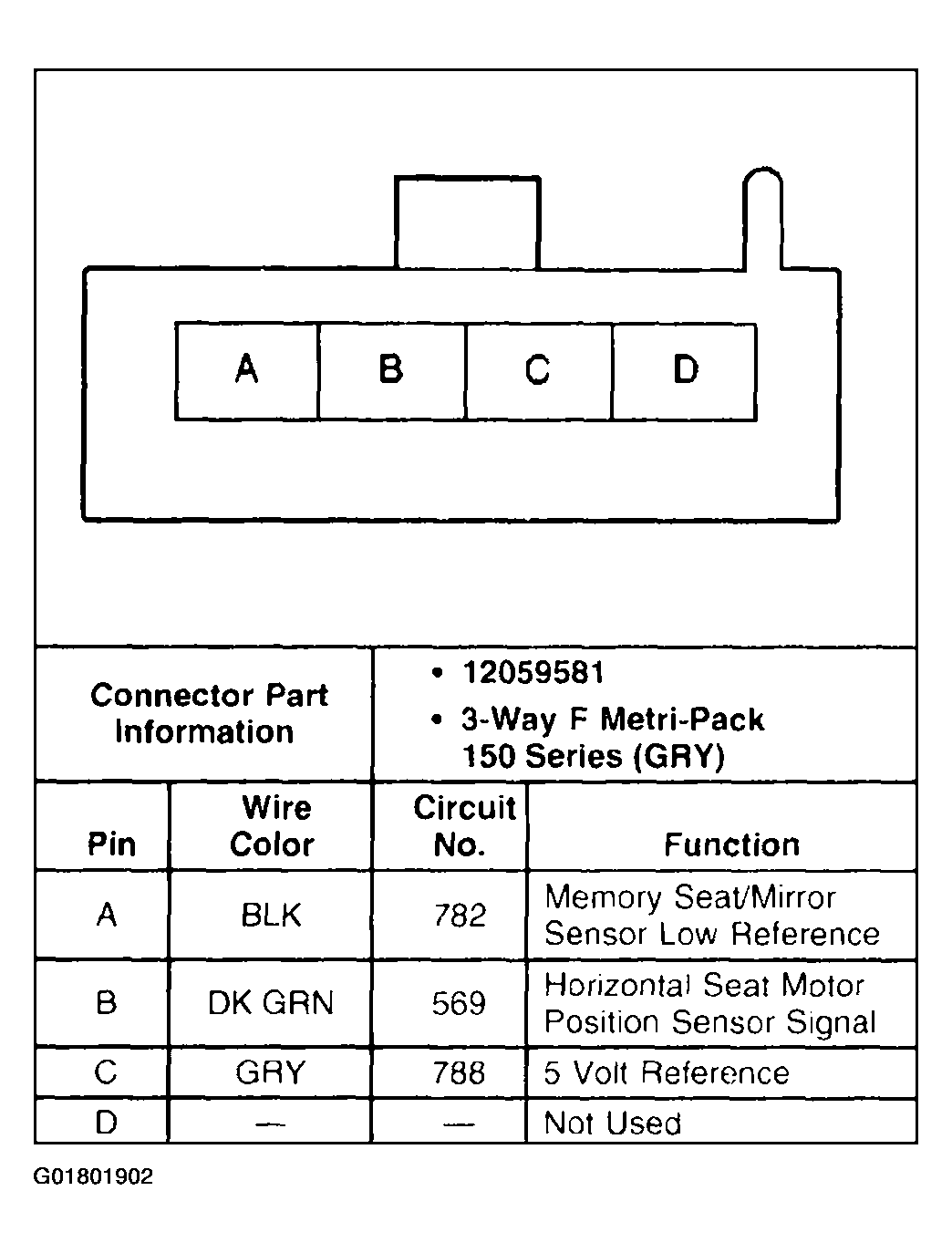

Fig 1: Seat Horizontal Position Sensor - Driver Connector End View

G01801902

Courtesy of GENERAL MOTORS CORP.
