Recirculation Actuator Connector End View

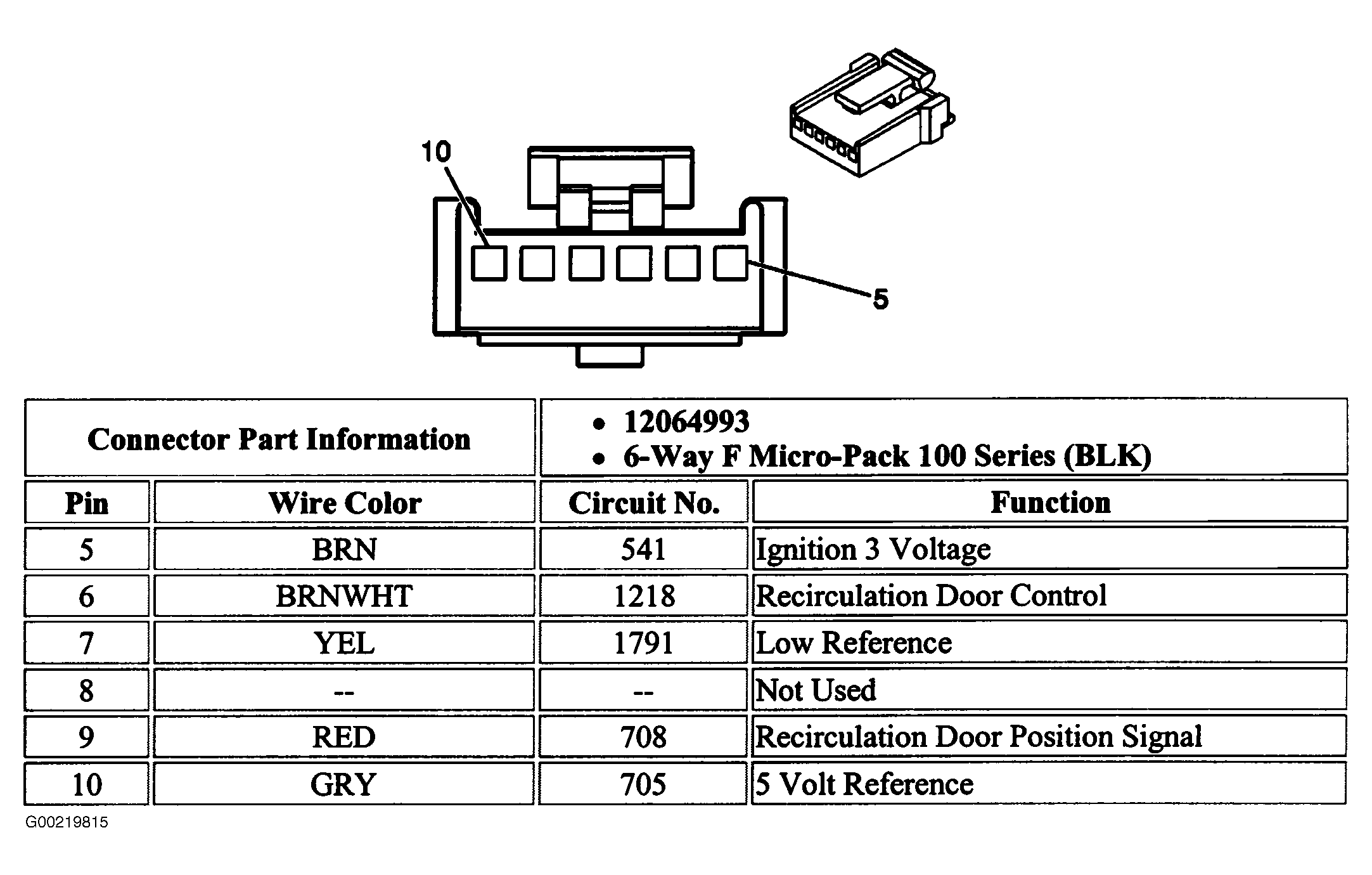

Fig 1: Recirculation Actuator Harness

G00219815

Courtesy of GENERAL MOTORS CORP.
