Radio Antenna Module Connector End View C1

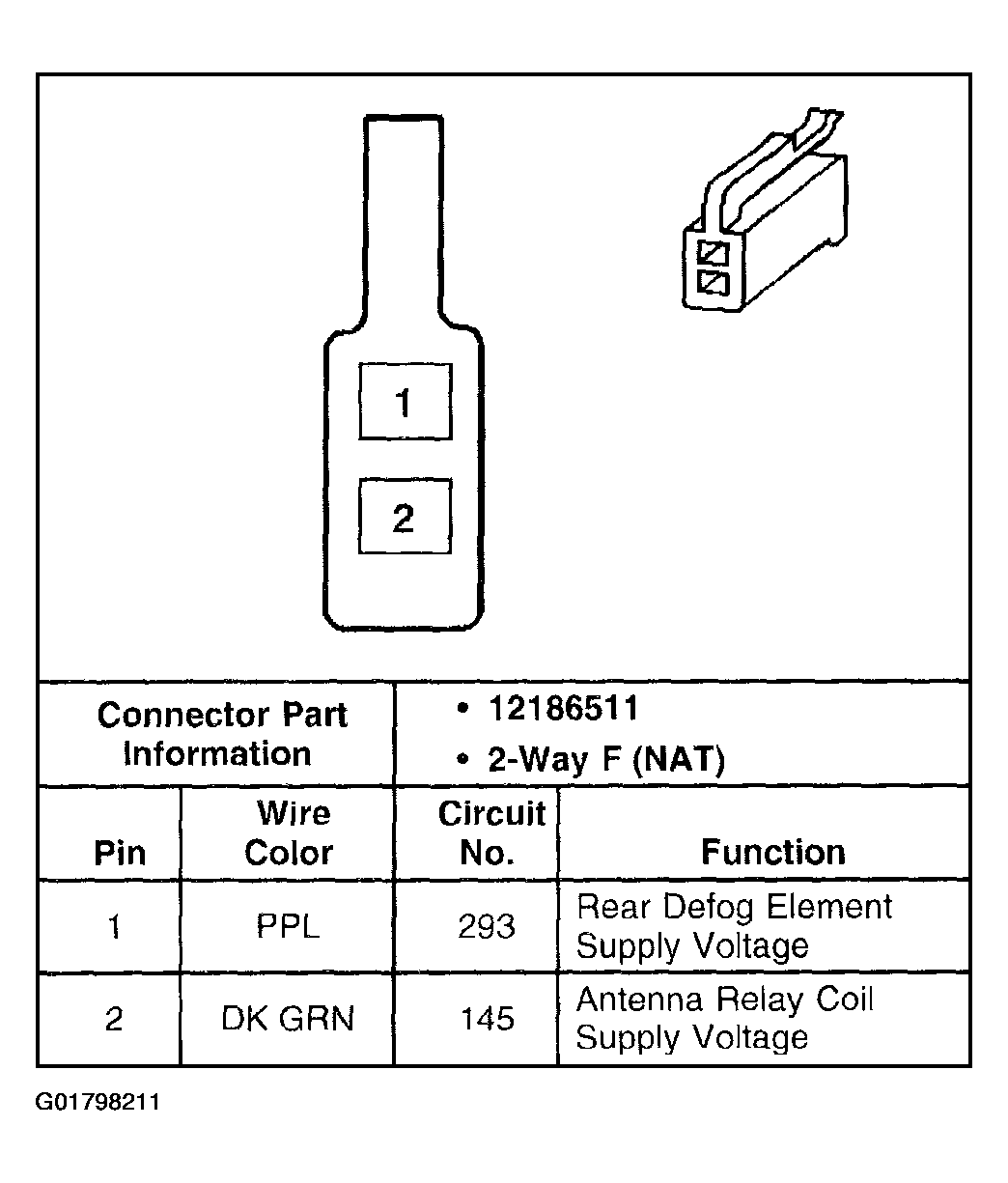

Fig 1: Radio Antenna Module Connector End View C1

G01798211

Courtesy of GENERAL MOTORS CORP.
