Outside Moisture Sensor Connector End View

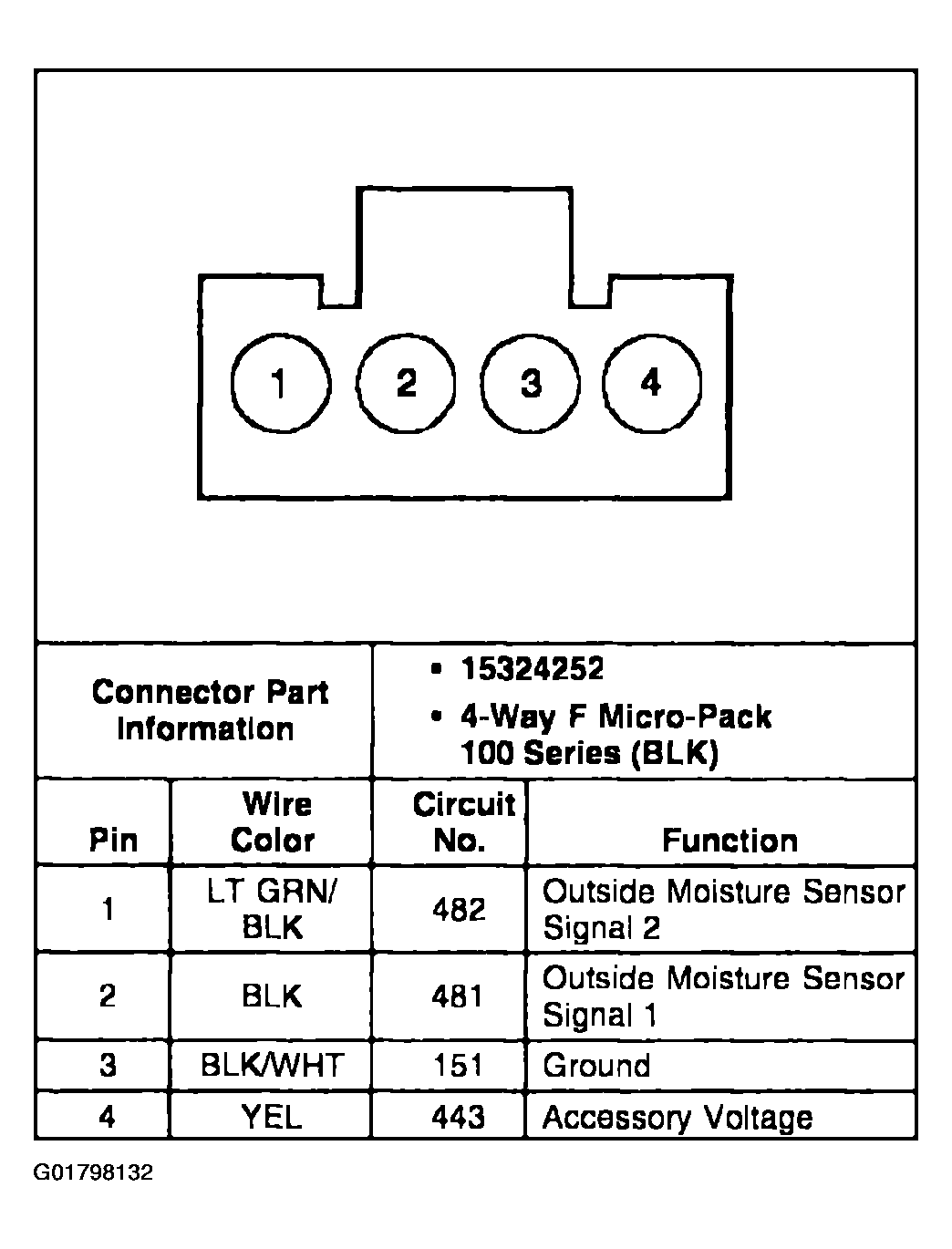

Fig 1: Outside Moisture Sensor Connector End View

G01798132

Courtesy of GENERAL MOTORS CORP.
