Lamp Control Module (LCM) C2 Connector End View (1 Of 2)

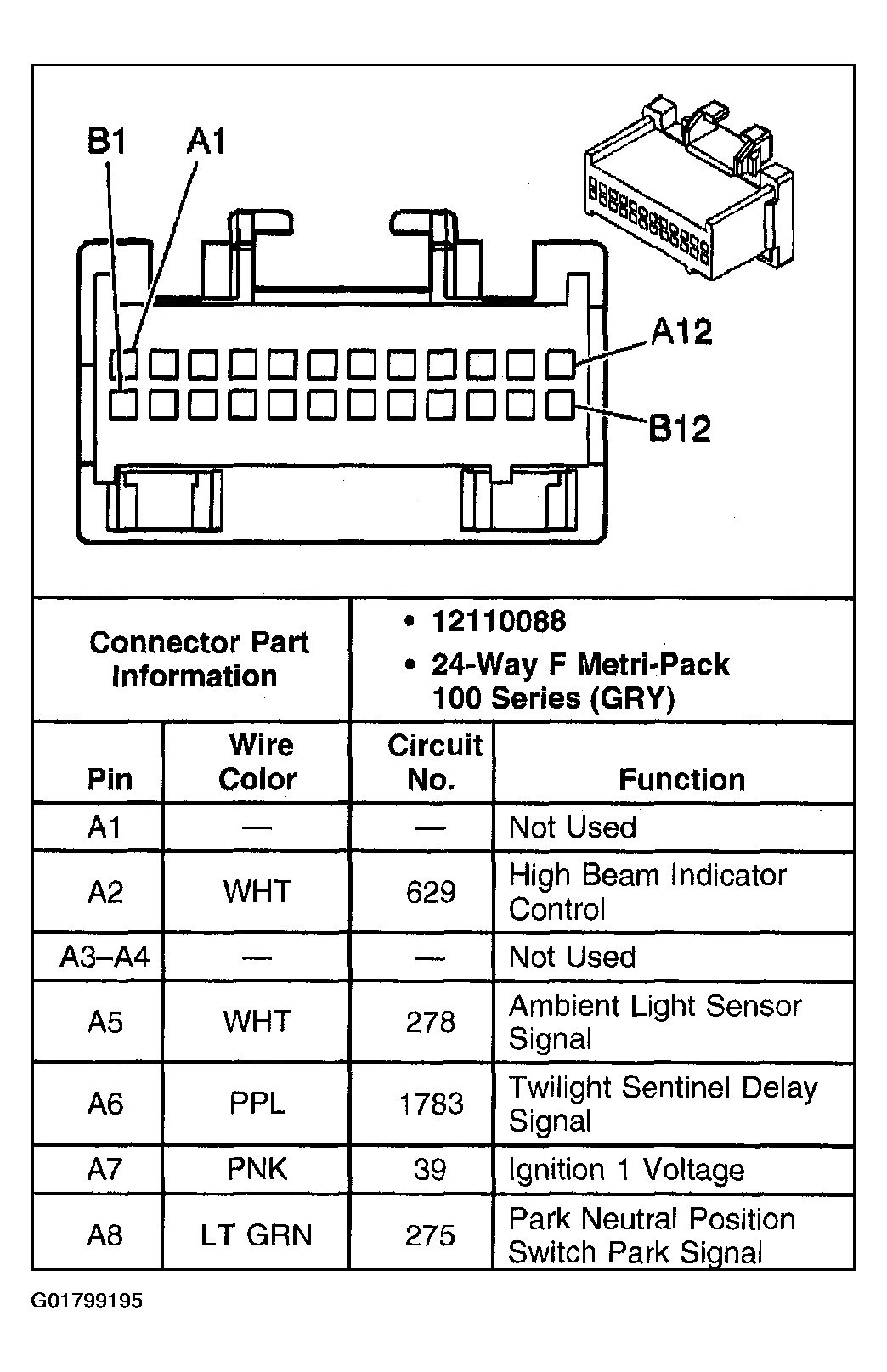

Fig 1: Lamp Control Module (LCM) C2 Connector End View (1 Of 2)

G01799195

Courtesy of GENERAL MOTORS CORP.
