Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower IP trim panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the fasteners (2) securing the heater A/C duct.
  3. Move the heater A/C duct aside in order to gain access to the panel dimming control module bracket.

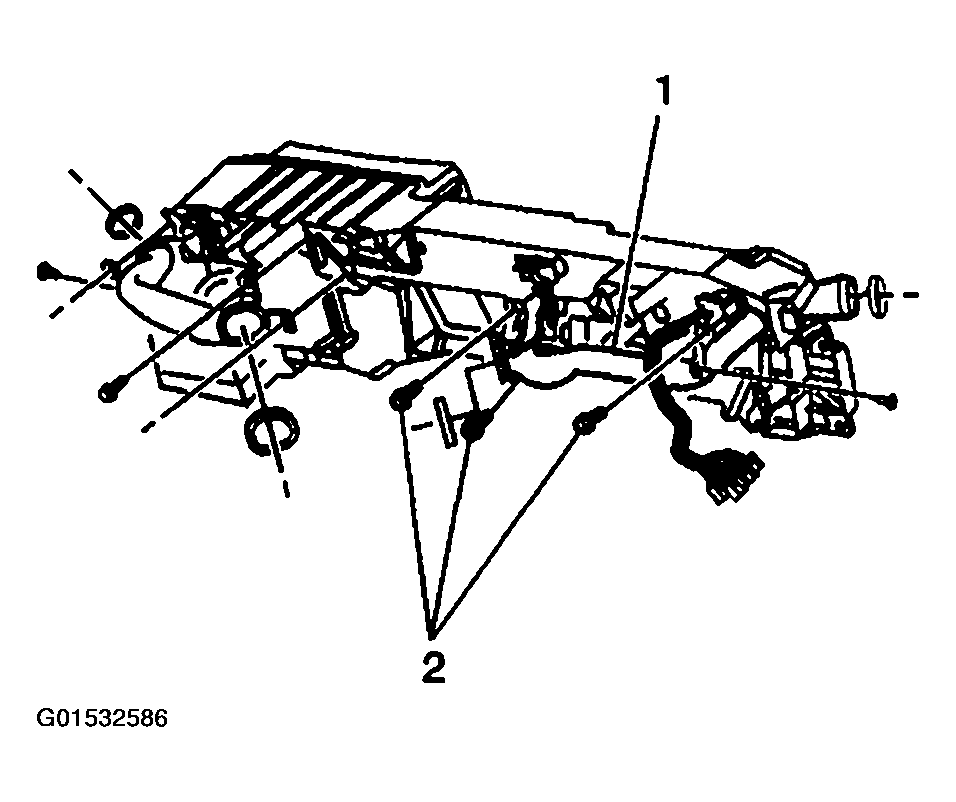

    Fig 1: Removing Fasteners Securing Heater A/C Duct
    G01532586Courtesy of GENERAL MOTORS CORP.
  4. Remove the module bracket from the IP.
  5. Remove the panel dimming module (1) from the bracket.
  6. Disconnect the electrical connectors from the module.

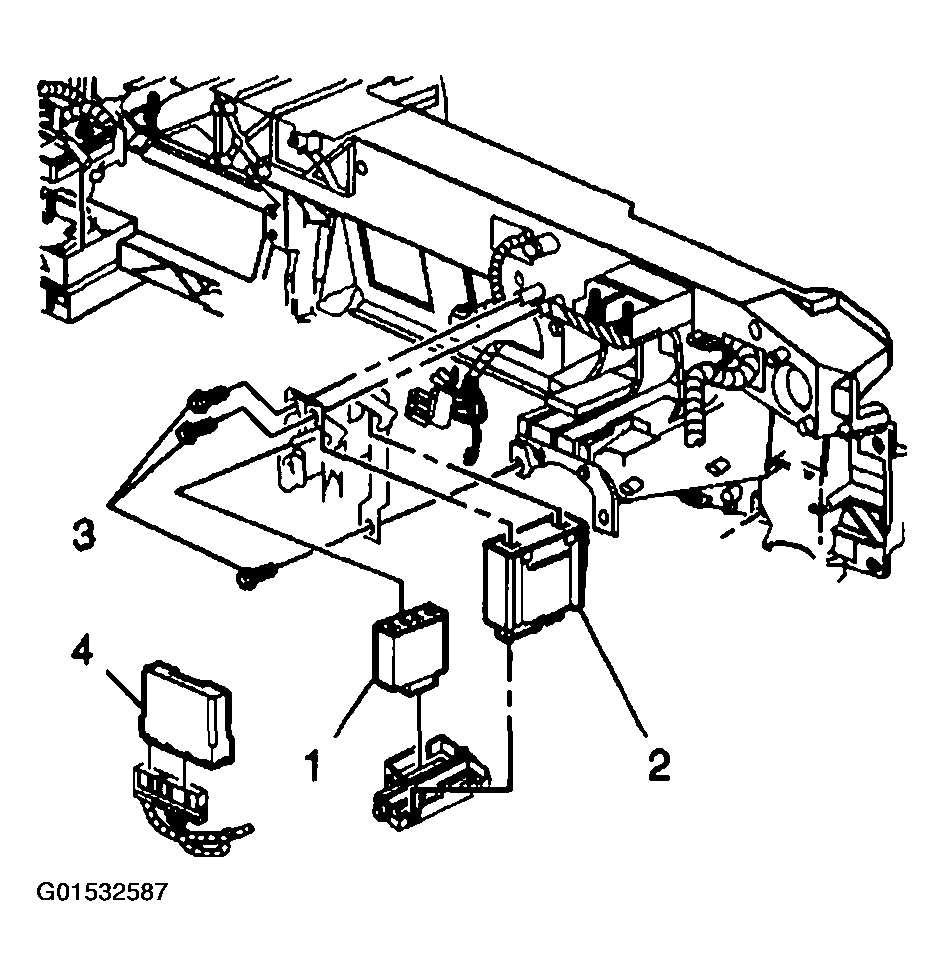

    Fig 2: Removing Panel Dimming Module
    G01532587Courtesy of GENERAL MOTORS CORP.
