Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the module.
  2. Install the module (1) to the bracket.
  3. Install the bracket to instrument panel.

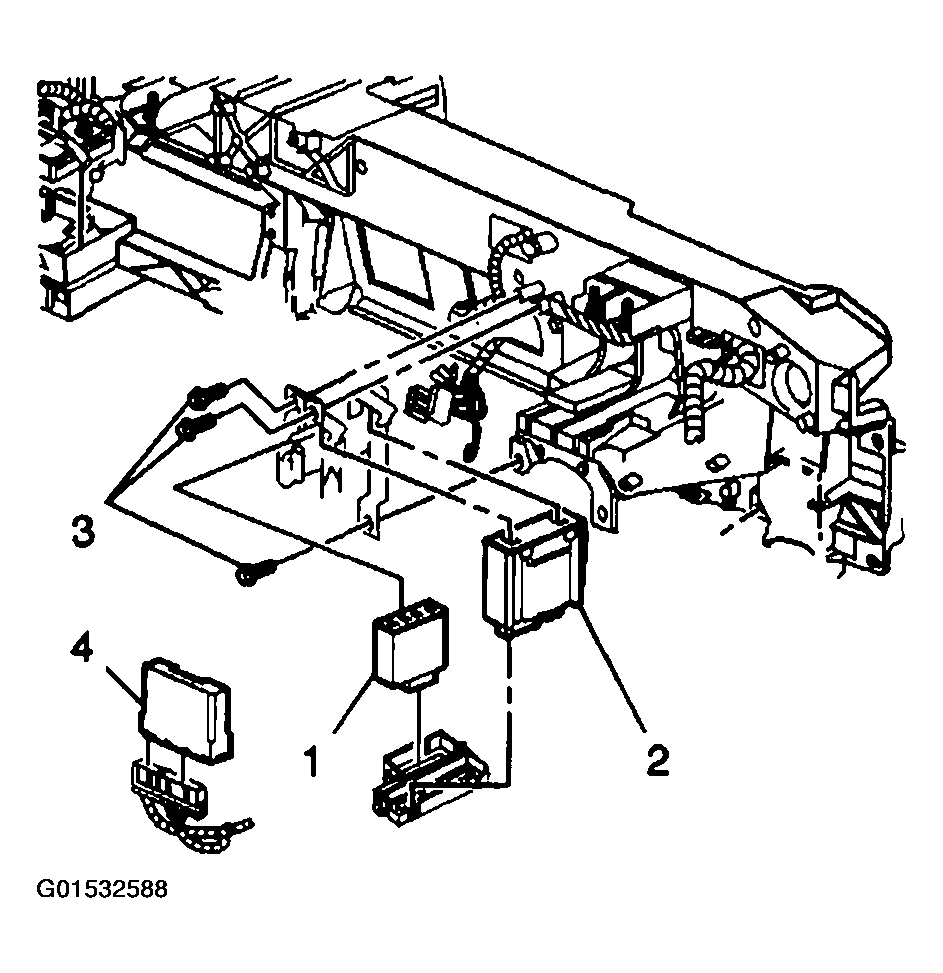

    Fig 1: Installing Panel Dimming Module
    G01532588Courtesy of GENERAL MOTORS CORP.
  4. Reposition the heater A/C duct.
  5. Install the fasteners (2) securing the heater A/C duct.
  6. Install the lower IP trim panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.

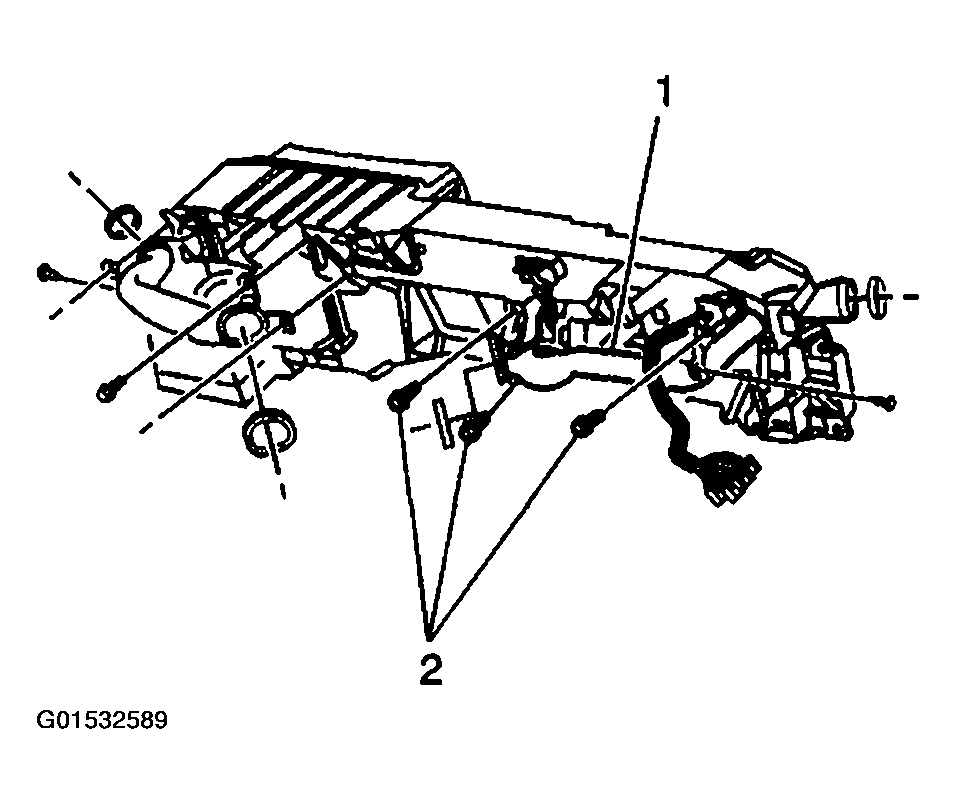

    Fig 2: Installing Fasteners Securing Heater A/C Duct
    G01532589Courtesy of GENERAL MOTORS CORP.
