Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower IP trim panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the fasteners (2) securing the heater A/C duct.
  3. Move the heater A/C duct aside in order to gain access to the panel dimming control module bracket.

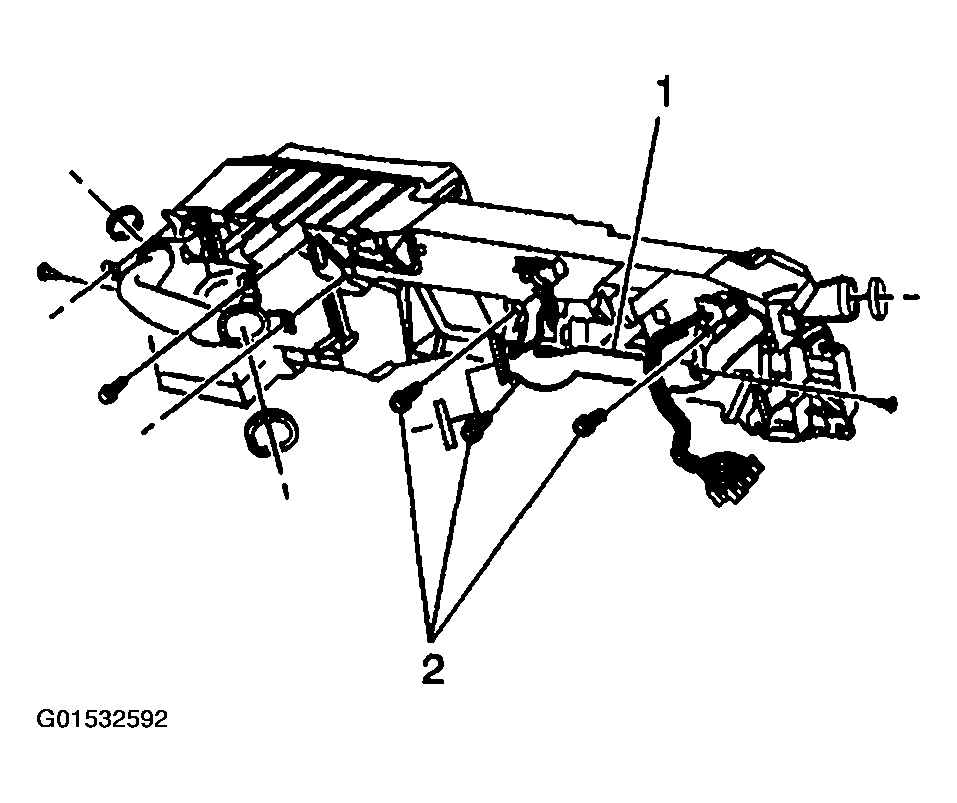

    Fig 1: Removing Fasteners Securing Heater A/C Duct
    G01532592Courtesy of GENERAL MOTORS CORP.
  4. Remove three fasteners (3) securing the lamp control module bracket to the instrument panel.
  5. Disconnect the electrical connectors from the lamp control module (2).

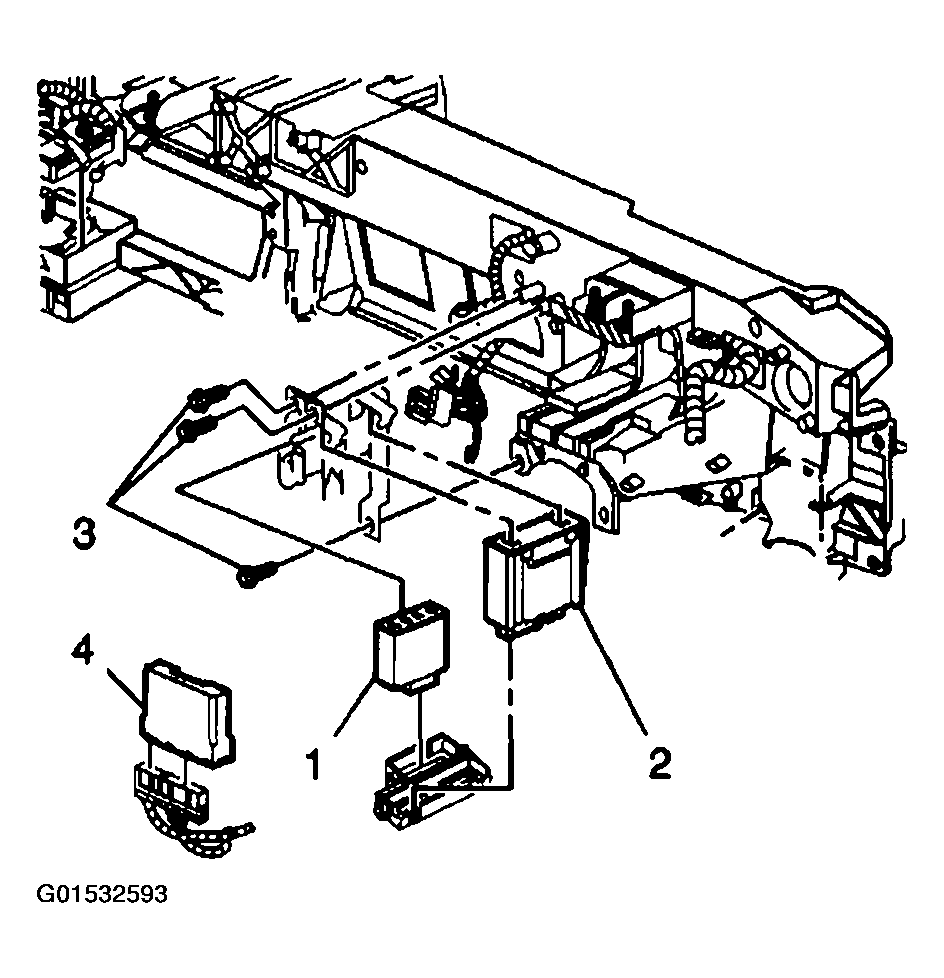

    Fig 2: Removing Fasteners & Electrical Connectors
    G01532593Courtesy of GENERAL MOTORS CORP.
