Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors from the lamp control module (2).
  2. Install the lamp control module bracket (2) to the instrument panel.

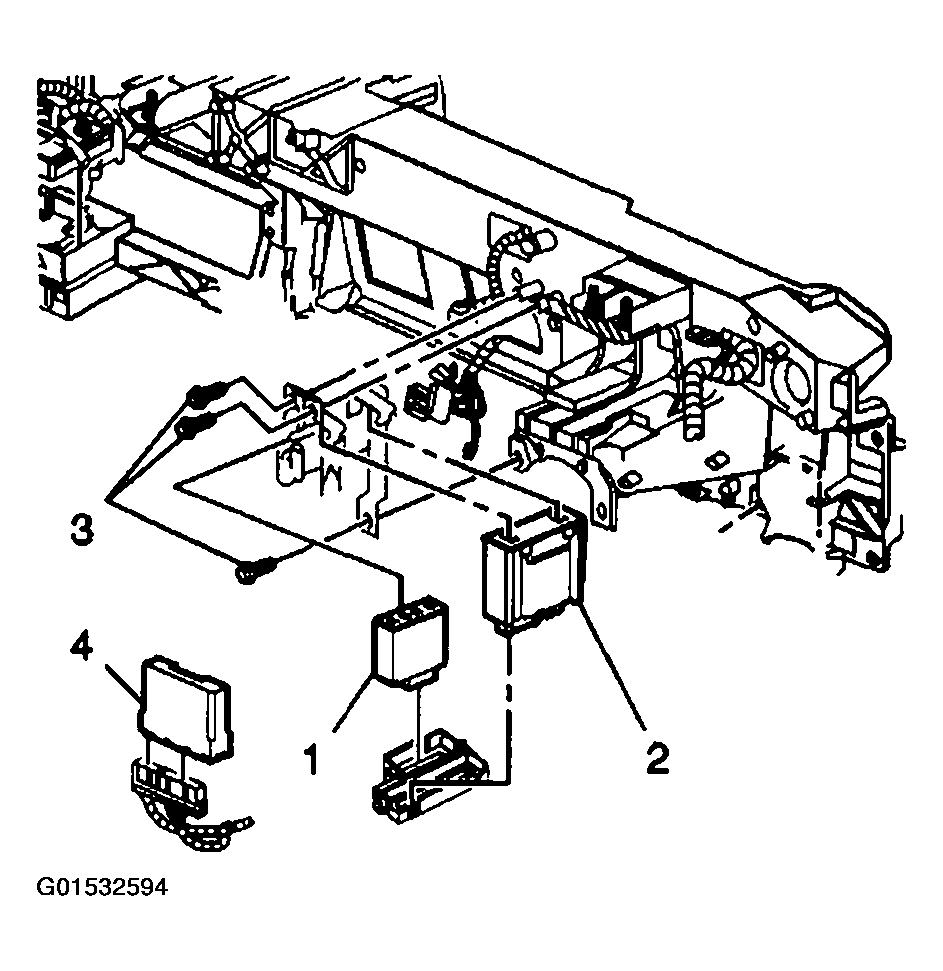

    Fig 1: Connecting Electrical Connectors & Fasteners
    G01532594Courtesy of GENERAL MOTORS CORP.
  3. Reposition the heater A/C duct.
  4. Install the fasteners (2) securing the heater A/C duct.

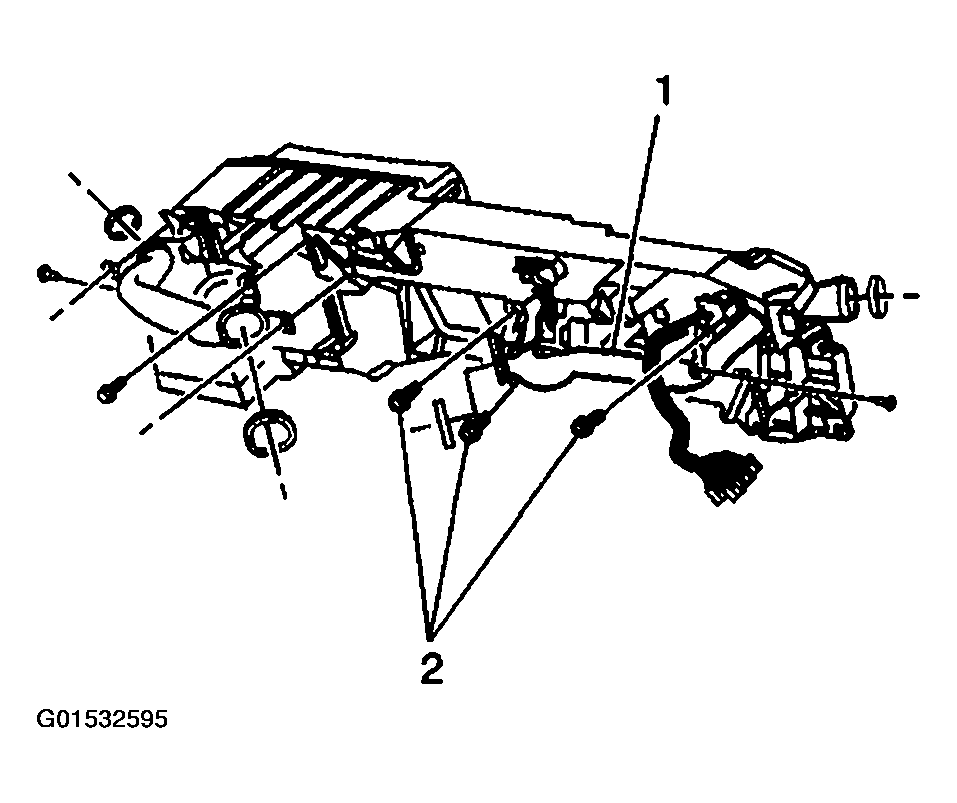

    Fig 2: Installing Fasteners Securing Heater A/C Duct
    G01532595Courtesy of GENERAL MOTORS CORP.
  5. Install the lower IP trim panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages and Console.
