Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ambient Light Sensor Connector

G01532467

Courtesy of GENERAL MOTORS CORP.

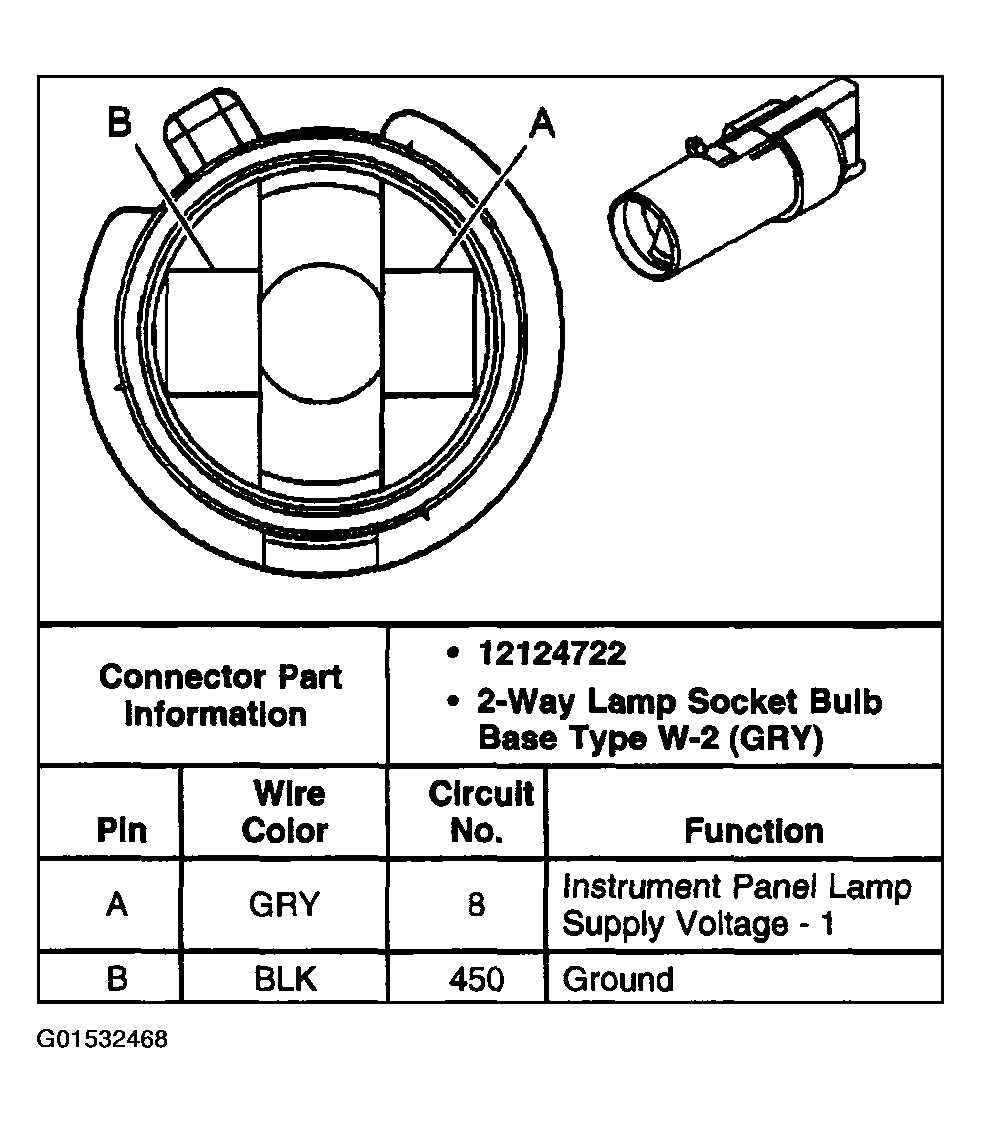

Fig 2: Identifying Ashtray Lamp Connector

G01532468

Courtesy of GENERAL MOTORS CORP.

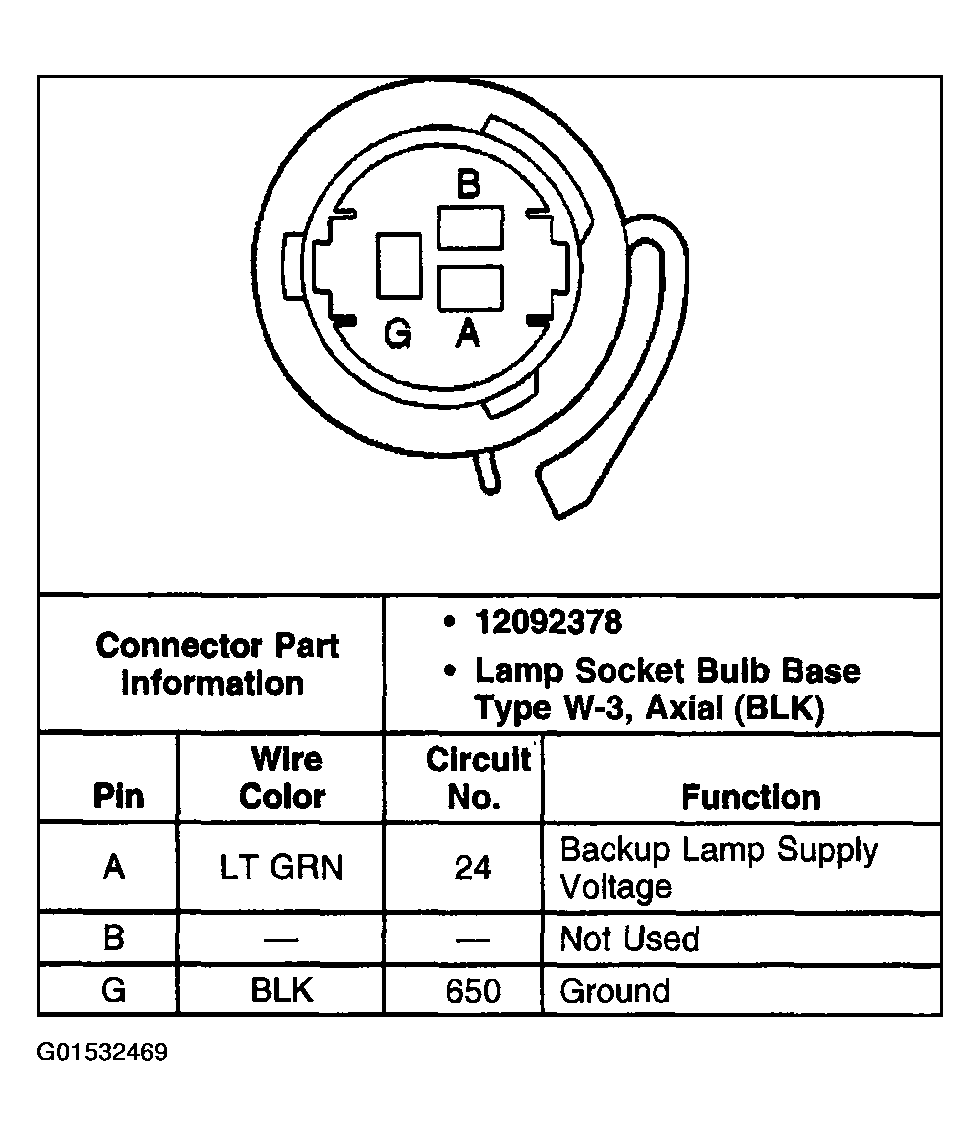

Fig 3: Identifying Back-Up Lamps Connector

G01532469

Courtesy of GENERAL MOTORS CORP.

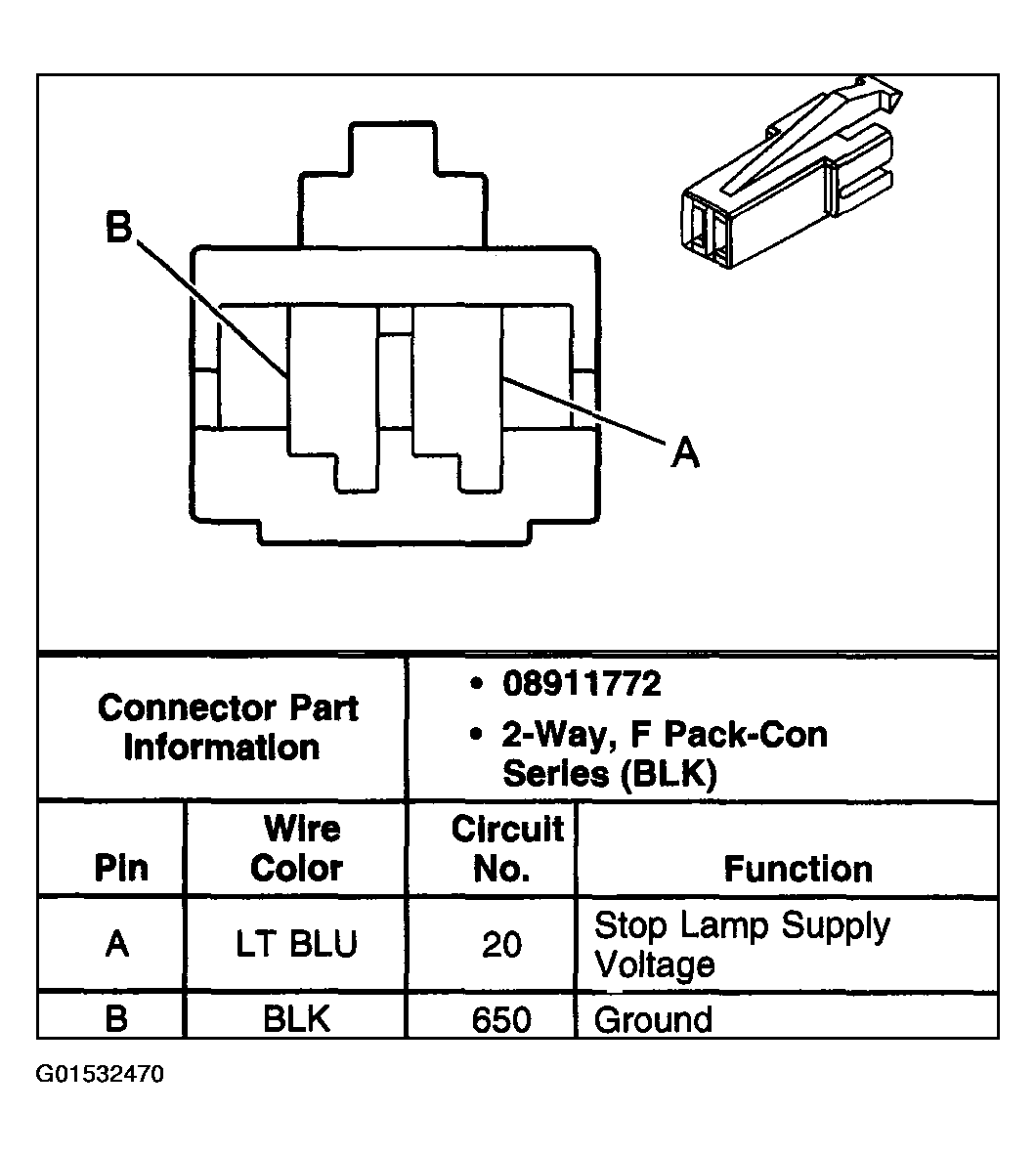

Fig 4: Identifying Center High Mounted Stop Lamp Connector

G01532470

Courtesy of GENERAL MOTORS CORP.

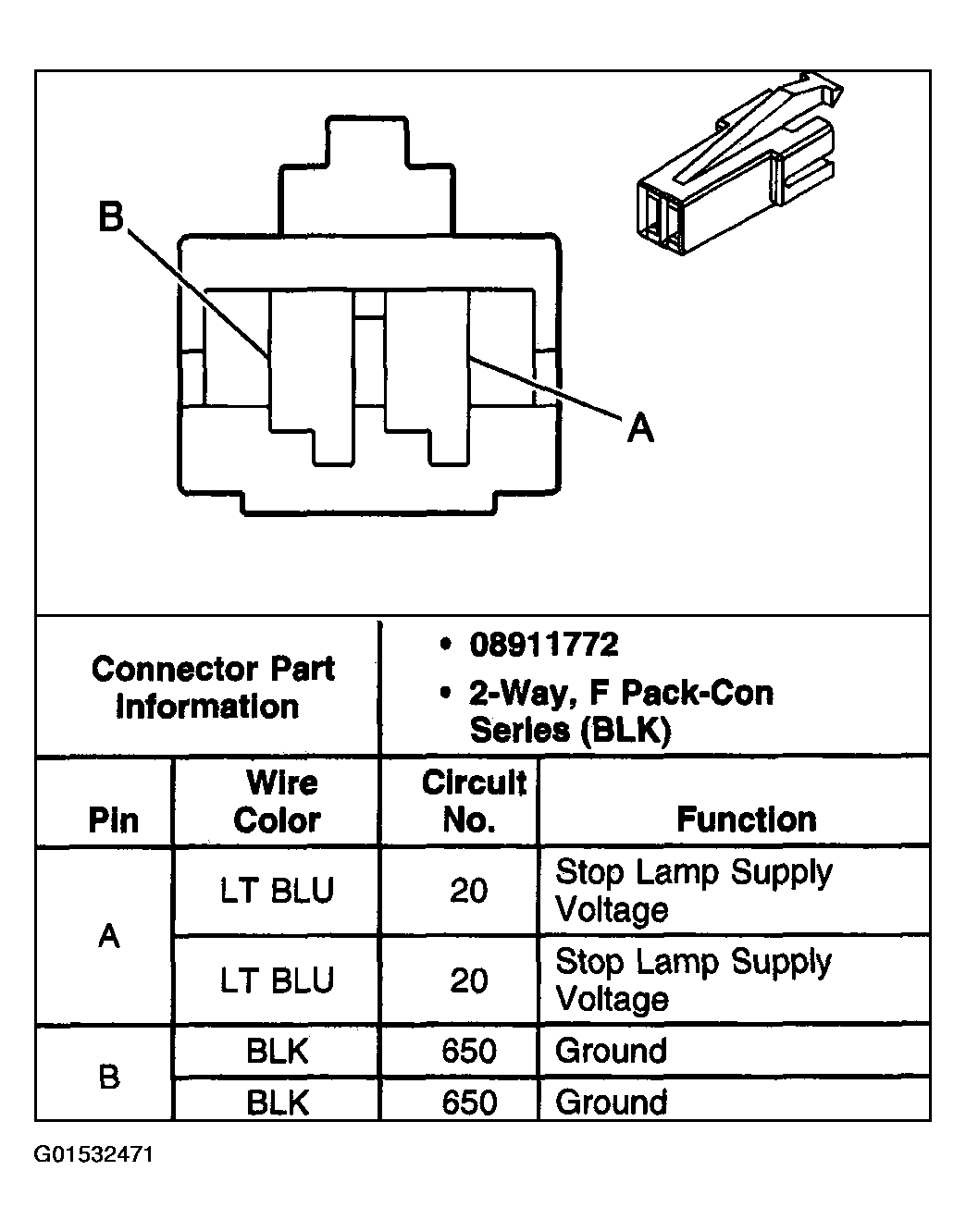

Fig 5: Identifying Center High Mounted Stop Lamp Connector

G01532471

Courtesy of GENERAL MOTORS CORP.

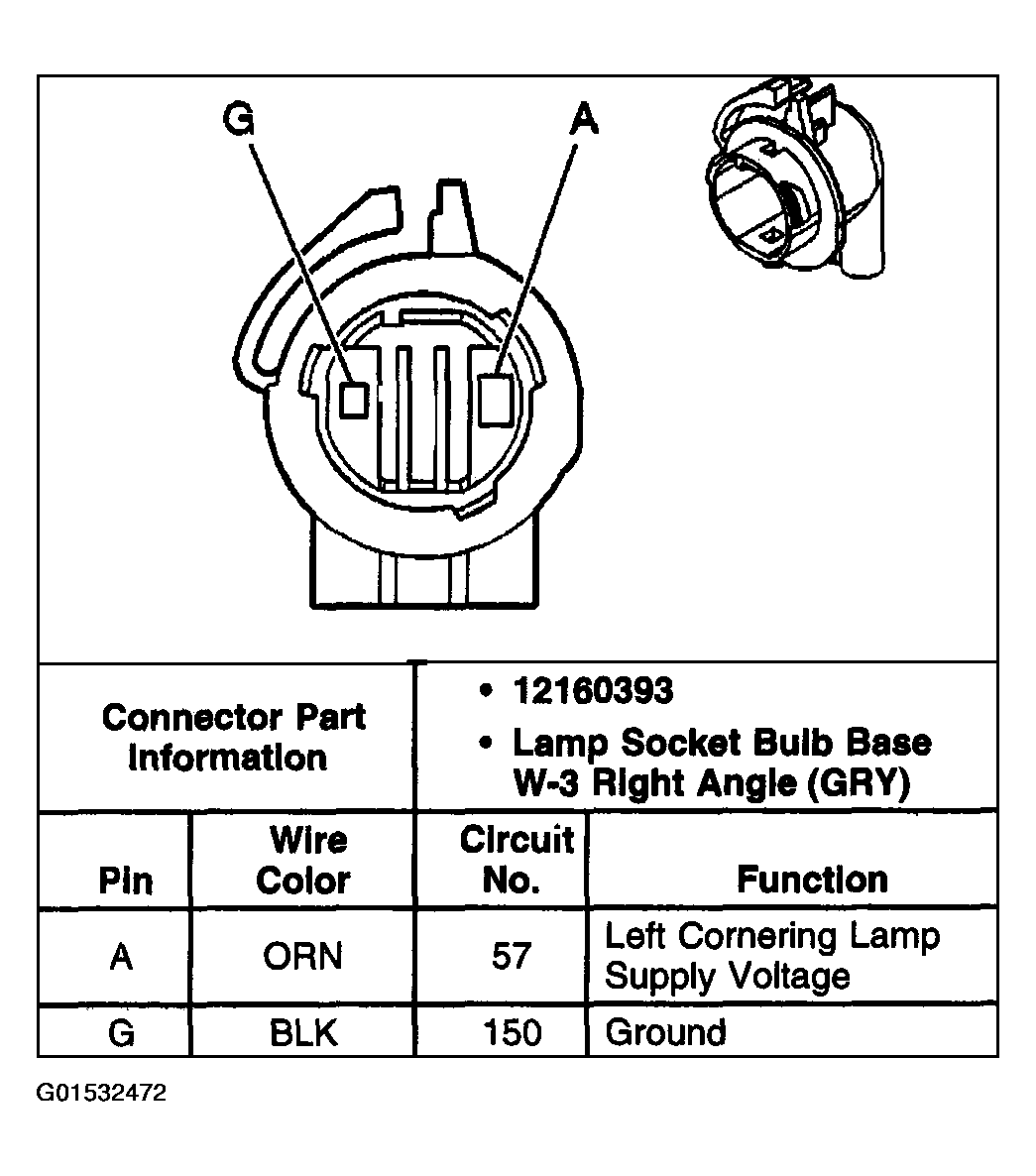

Fig 6: Identifying Cornering Lamp - Left Connector

G01532472

Courtesy of GENERAL MOTORS CORP.

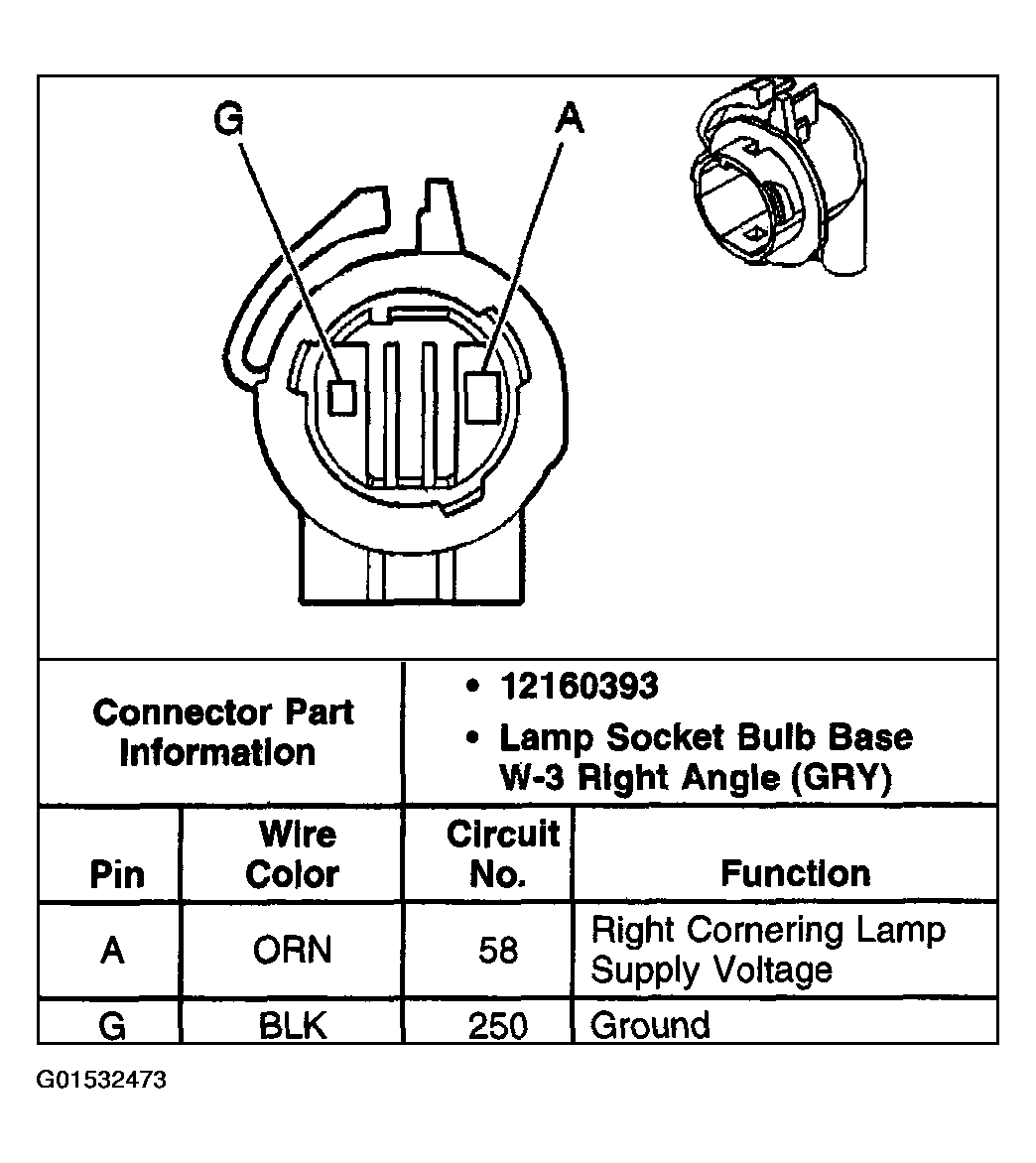

Fig 7: Identifying Cornering Lamp - Right Connector

G01532473

Courtesy of GENERAL MOTORS CORP.

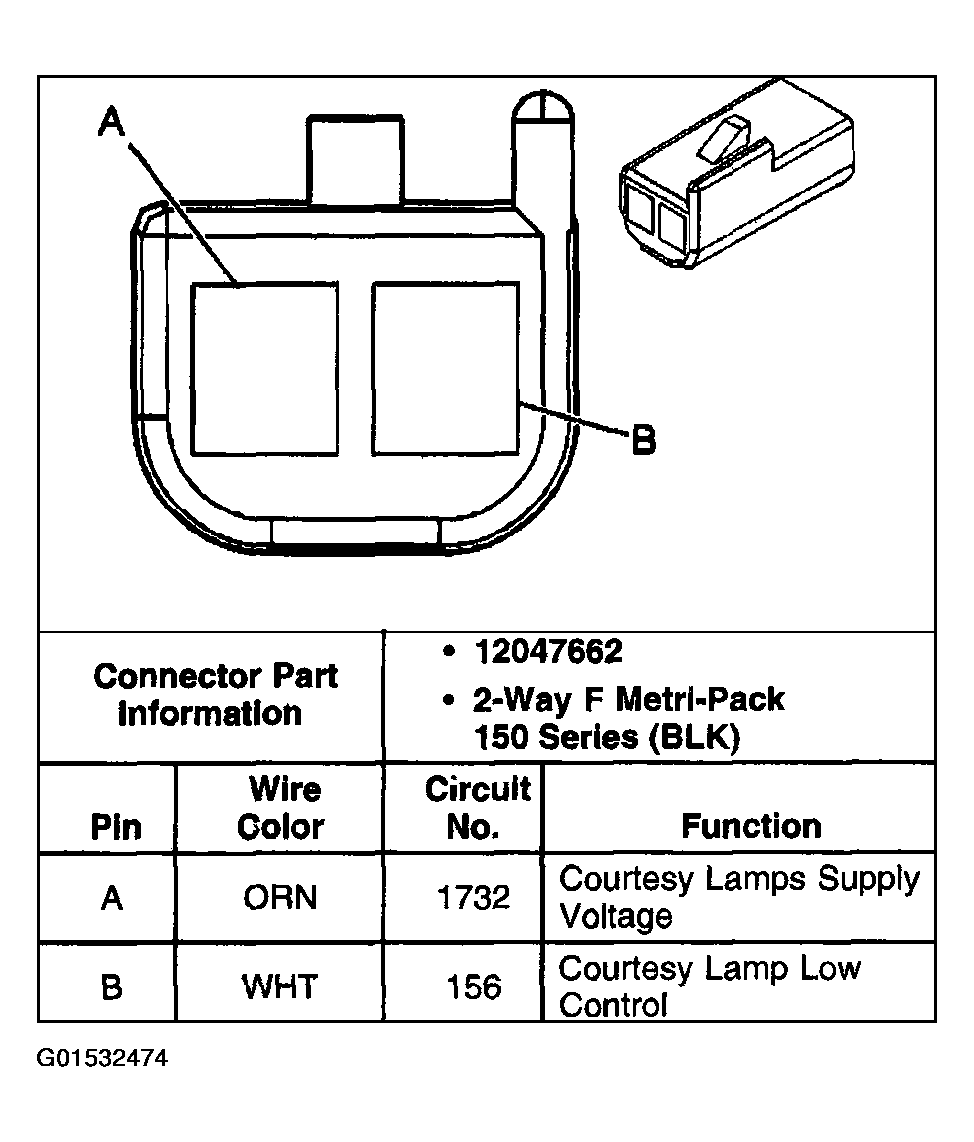

Fig 8: Identifying Door Courtesy Lamps - LF And RF Connector

G01532474

Courtesy of GENERAL MOTORS CORP.

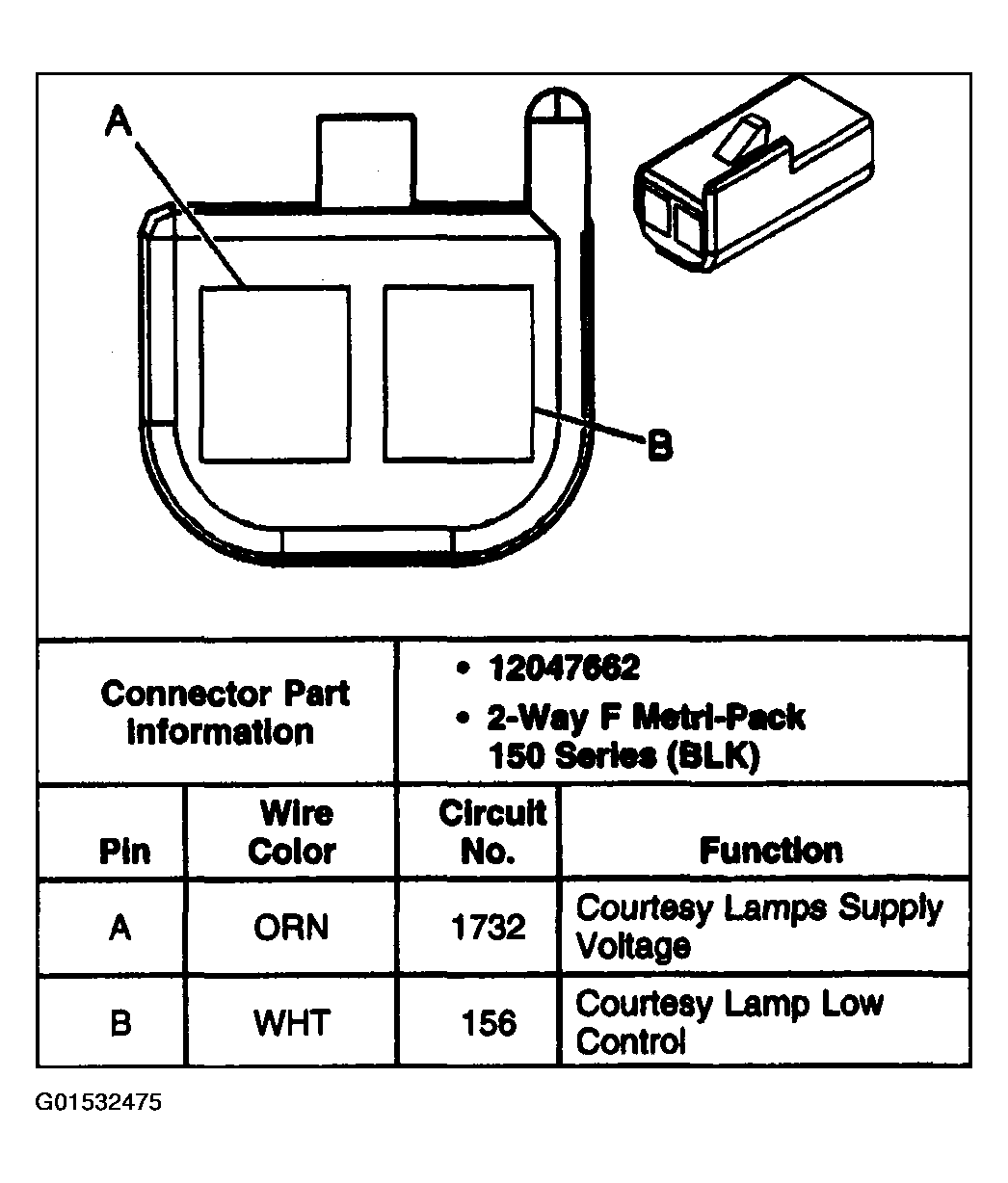

Fig 9: Identifying Door Courtesy Lamps - LR And RR Connector

G01532475

Courtesy of GENERAL MOTORS CORP.

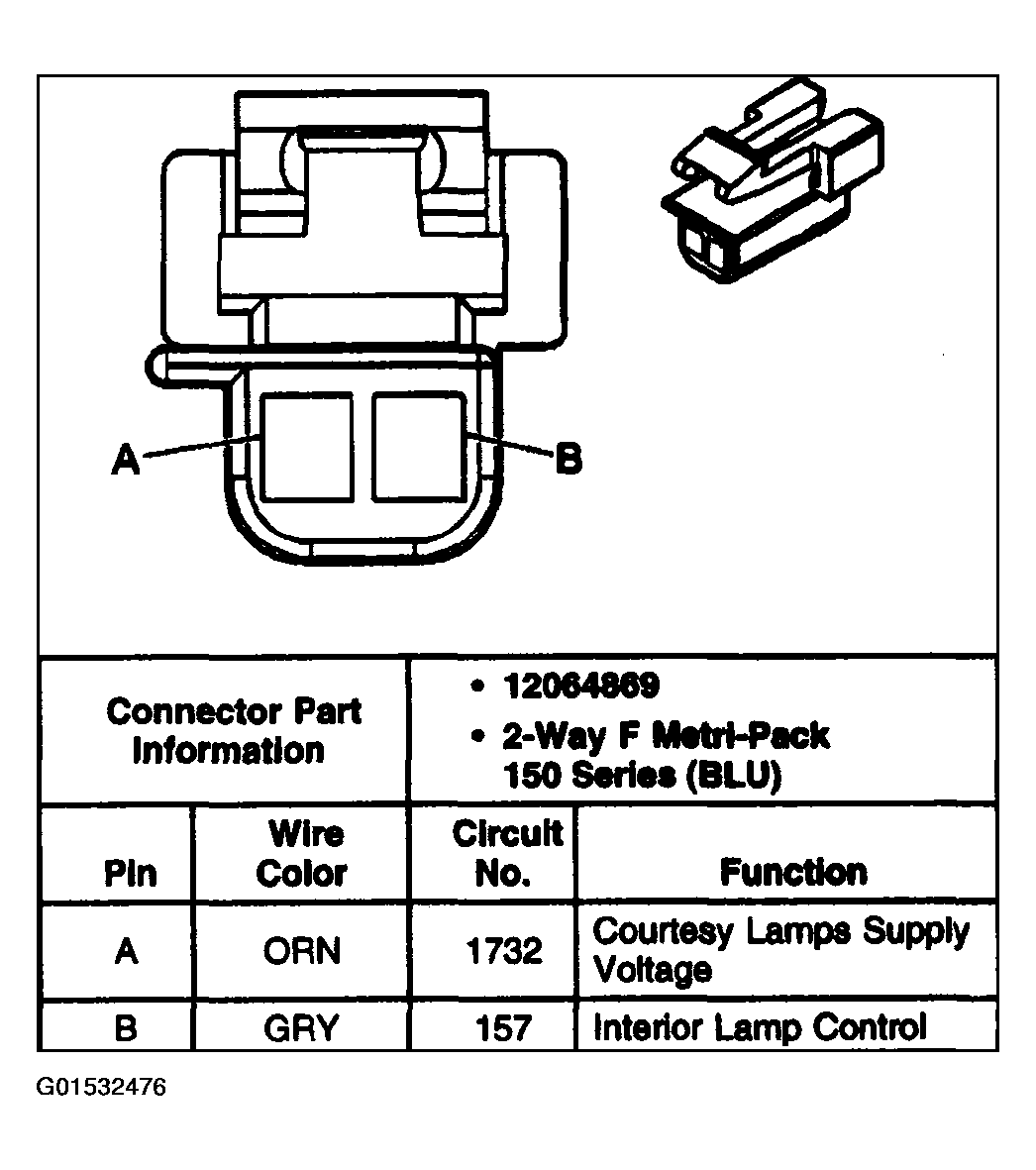

Fig 10: Identifying Footwell Courtesy Lamp - Left Connector

G01532476

Courtesy of GENERAL MOTORS CORP.

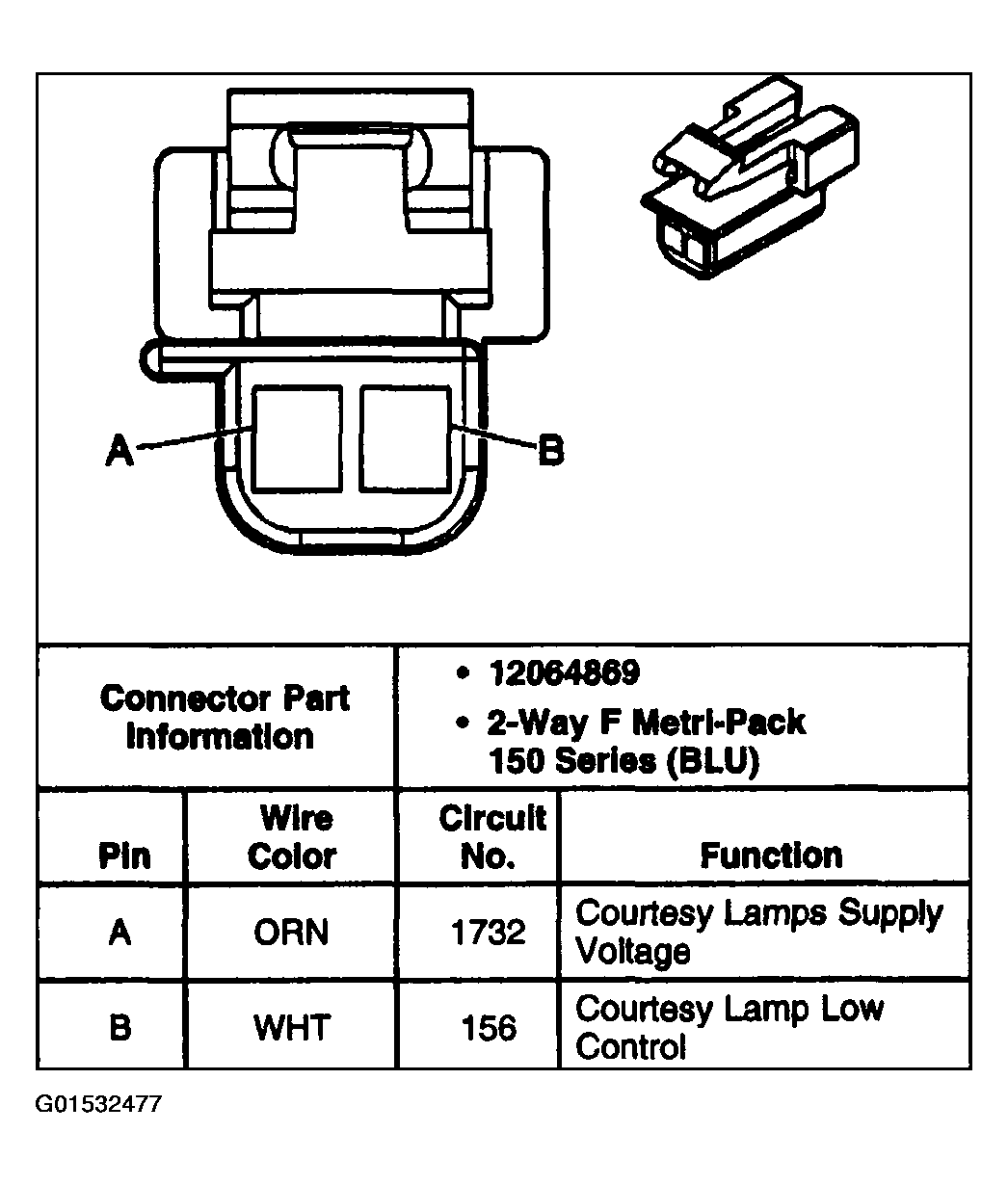

Fig 11: Identifying Footwell Courtesy Lamp - Right Connector

G01532477

Courtesy of GENERAL MOTORS CORP.

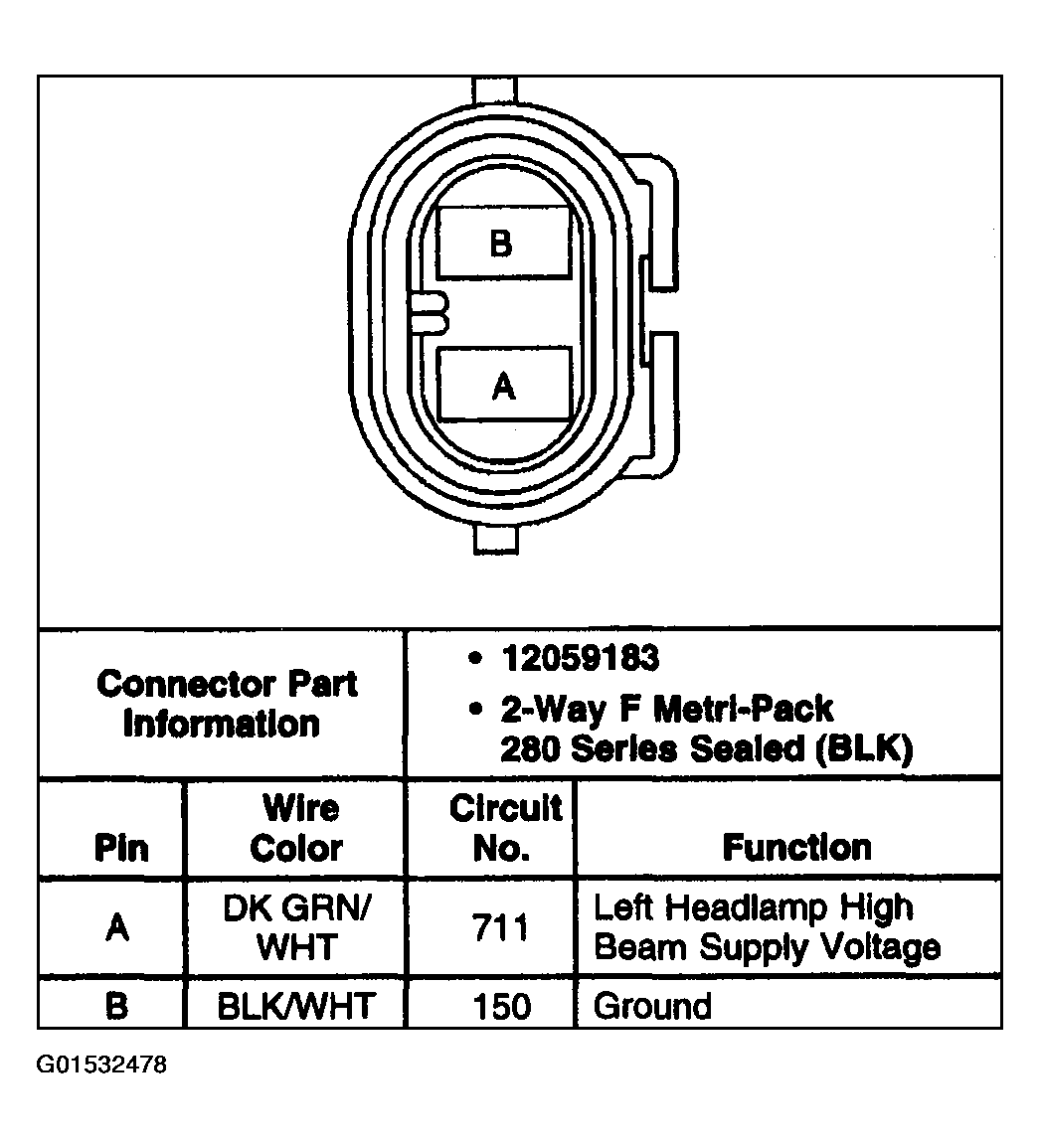

Fig 12: Identifying Headlamp - High Beam - Left Connector

G01532478

Courtesy of GENERAL MOTORS CORP.

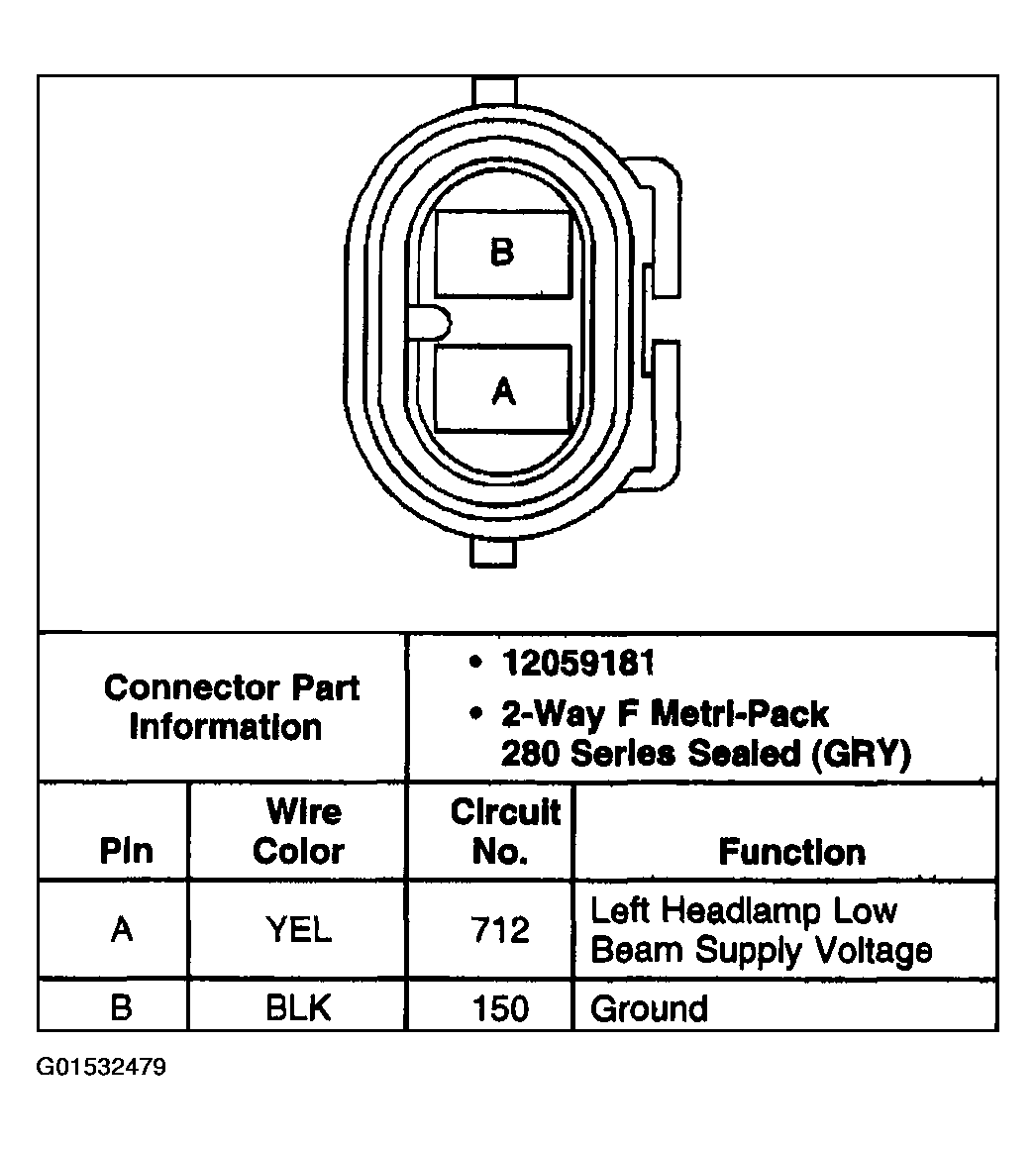

Fig 13: Identifying Headlamp - Low Beam - Left Connector

G01532479

Courtesy of GENERAL MOTORS CORP.

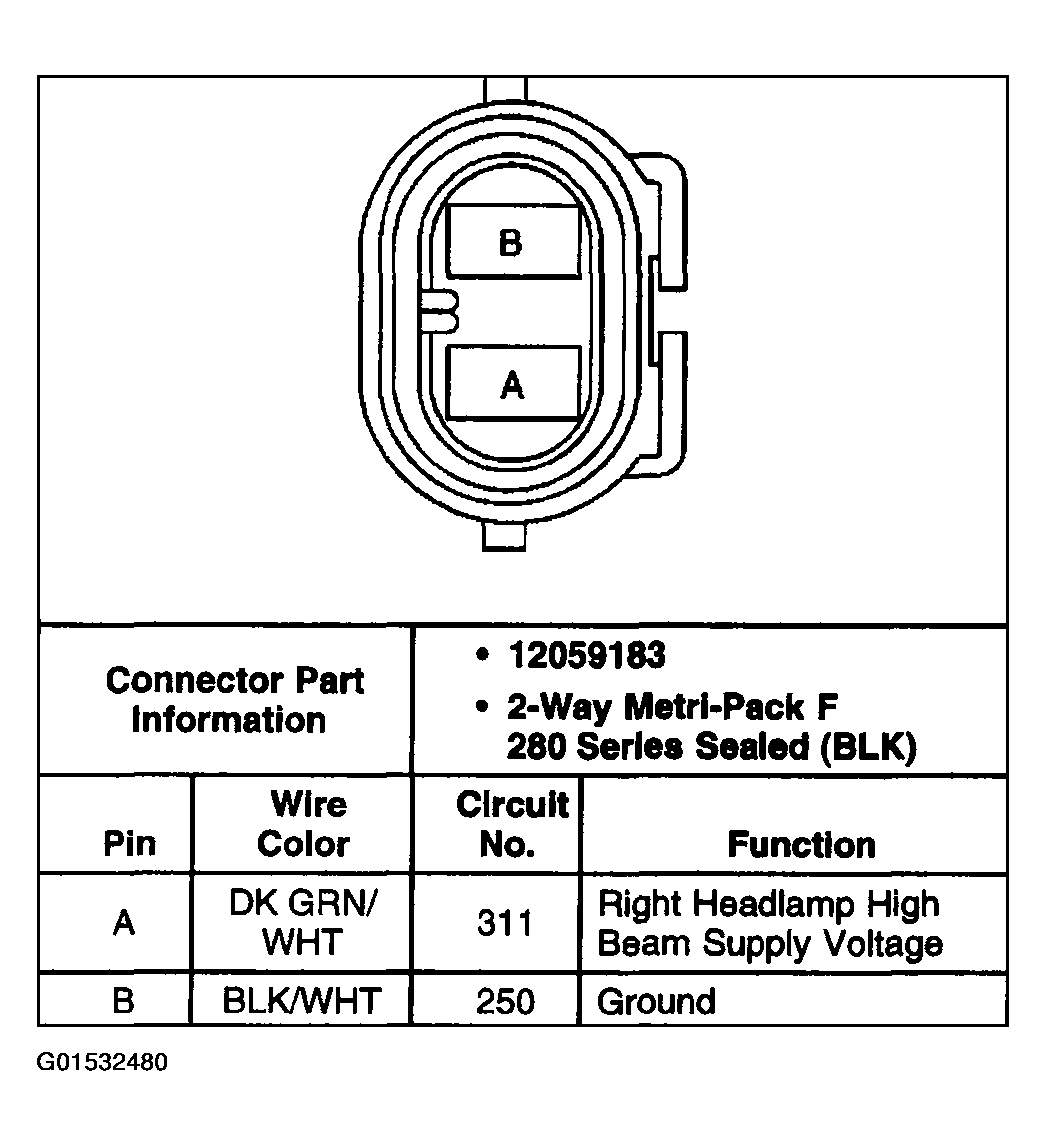

Fig 14: Identifying Headlamp - High Beam - Right Connector

G01532480

Courtesy of GENERAL MOTORS CORP.

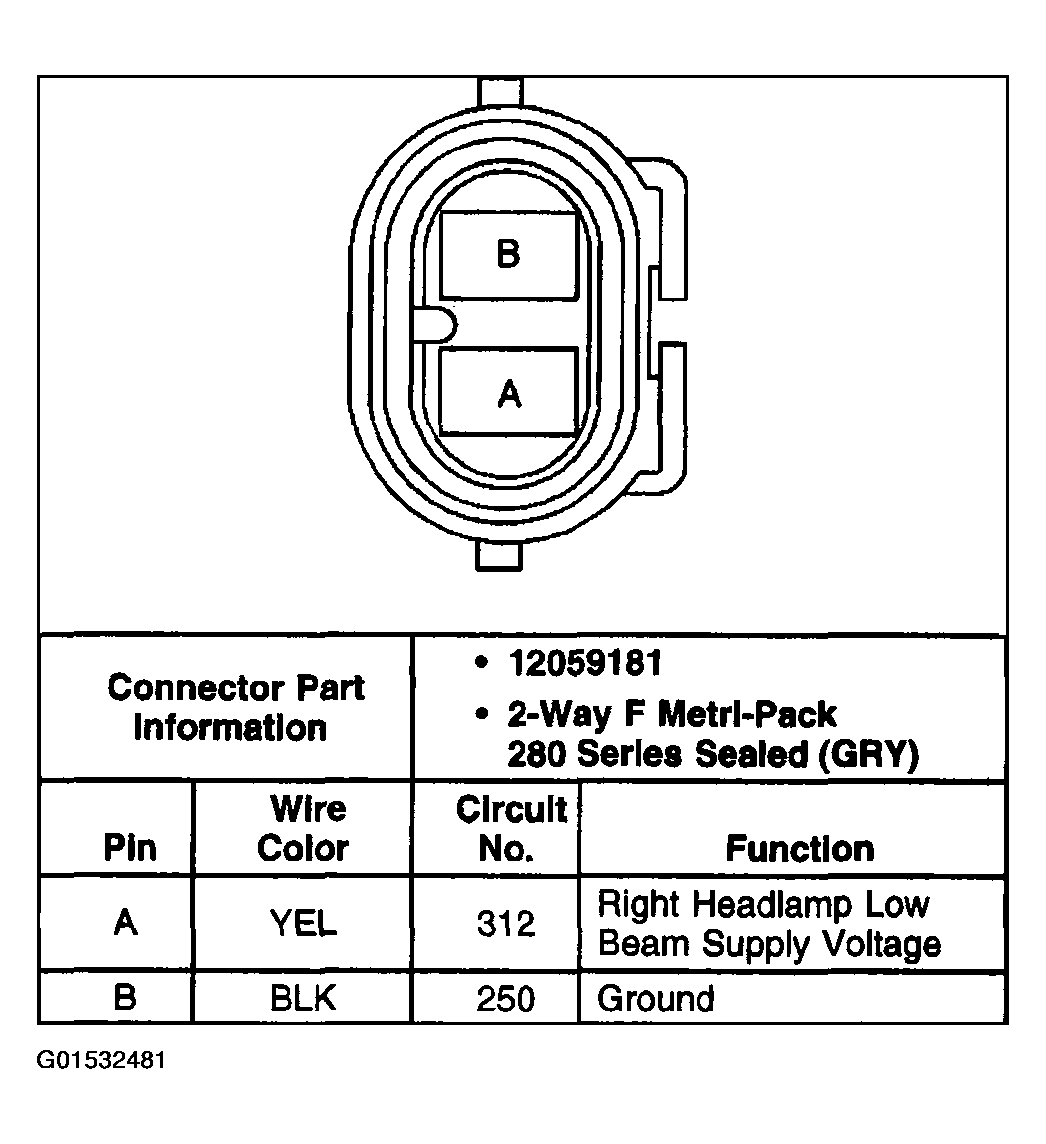

Fig 15: Identifying Headlamp - Low Beam - Right Connector

G01532481

Courtesy of GENERAL MOTORS CORP.

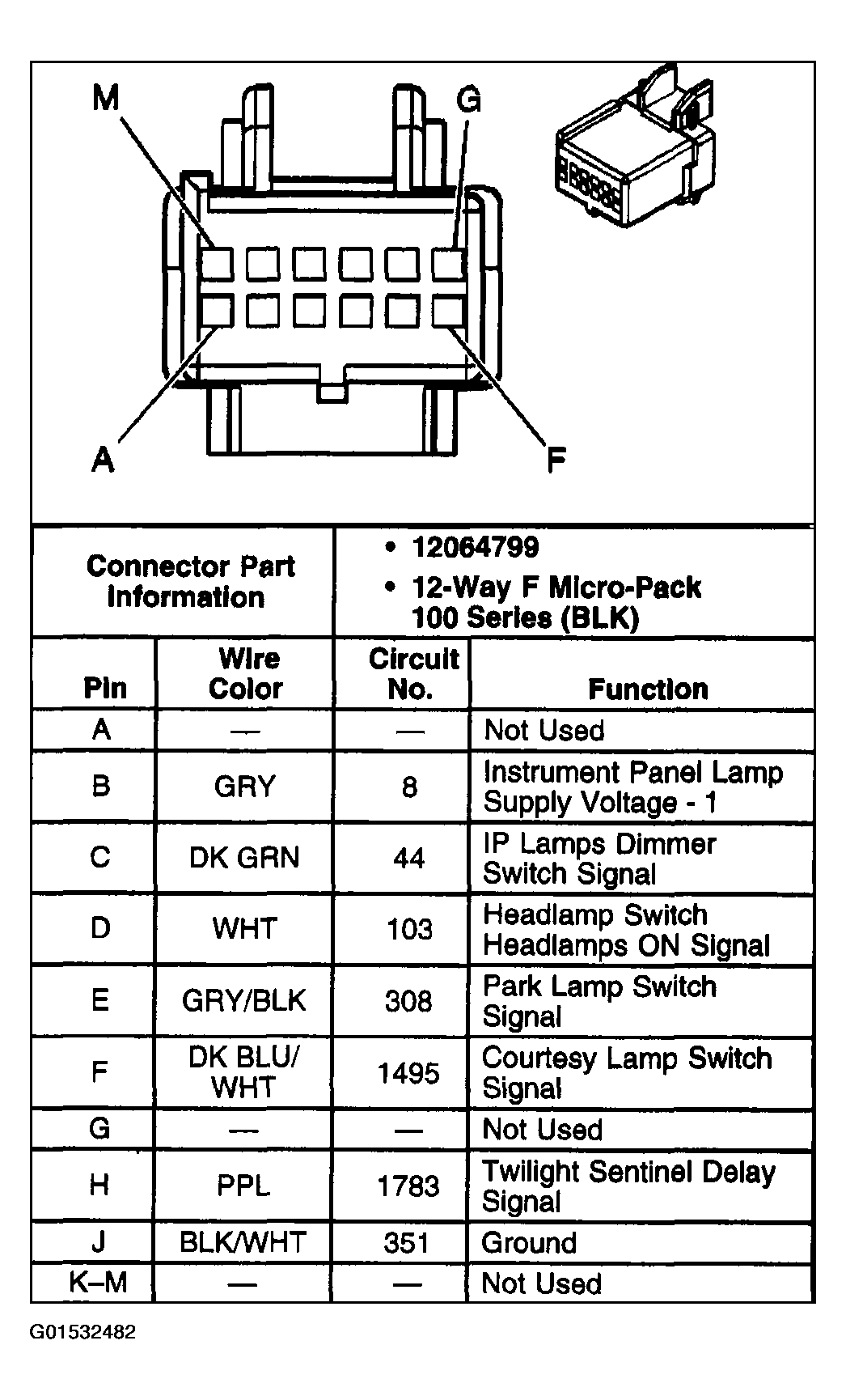

Fig 16: Identifying Headlamp Switch Connector

G01532482

Courtesy of GENERAL MOTORS CORP.

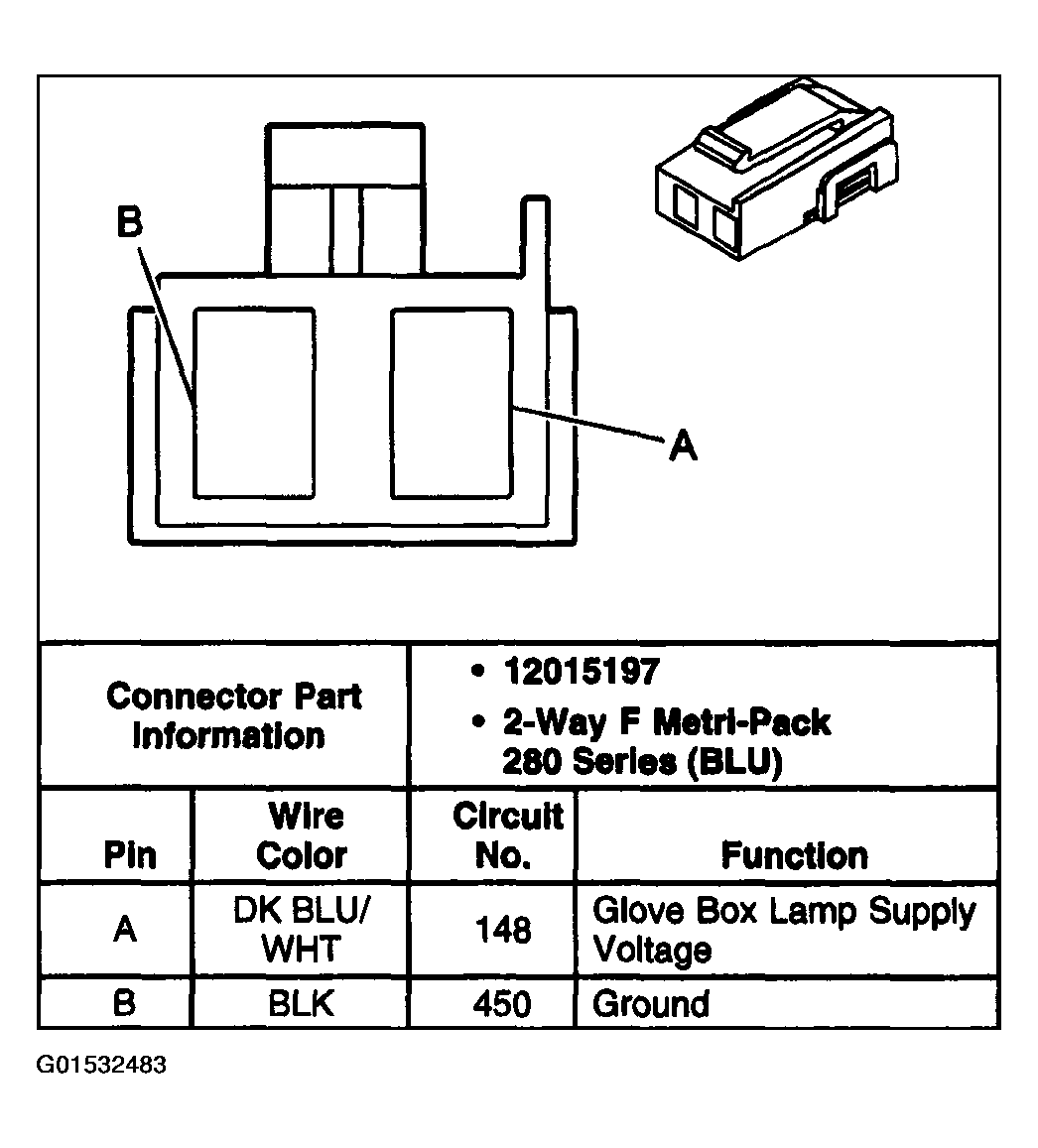

Fig 17: Identifying IP Compartment Lamp Switch Connector

G01532483

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying IP Dimming Module Connector

G01532484

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Lamp Control Module C1 Connector

G01532485

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Lamp Control Module C2 Connector

G01532486

Courtesy of GENERAL MOTORS CORP.

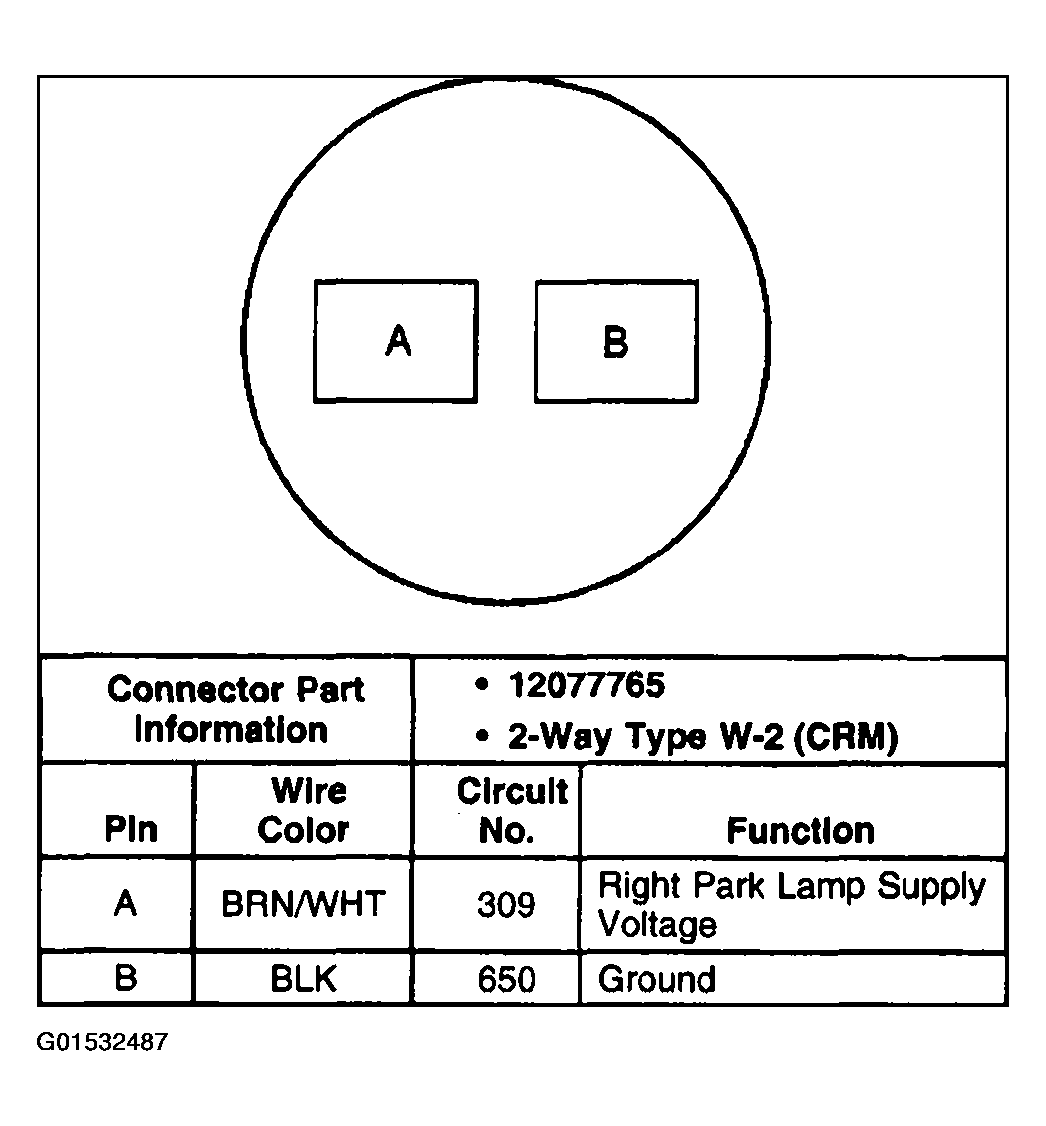

Fig 21: Identifying License Lamp Connector

G01532487

Courtesy of GENERAL MOTORS CORP.

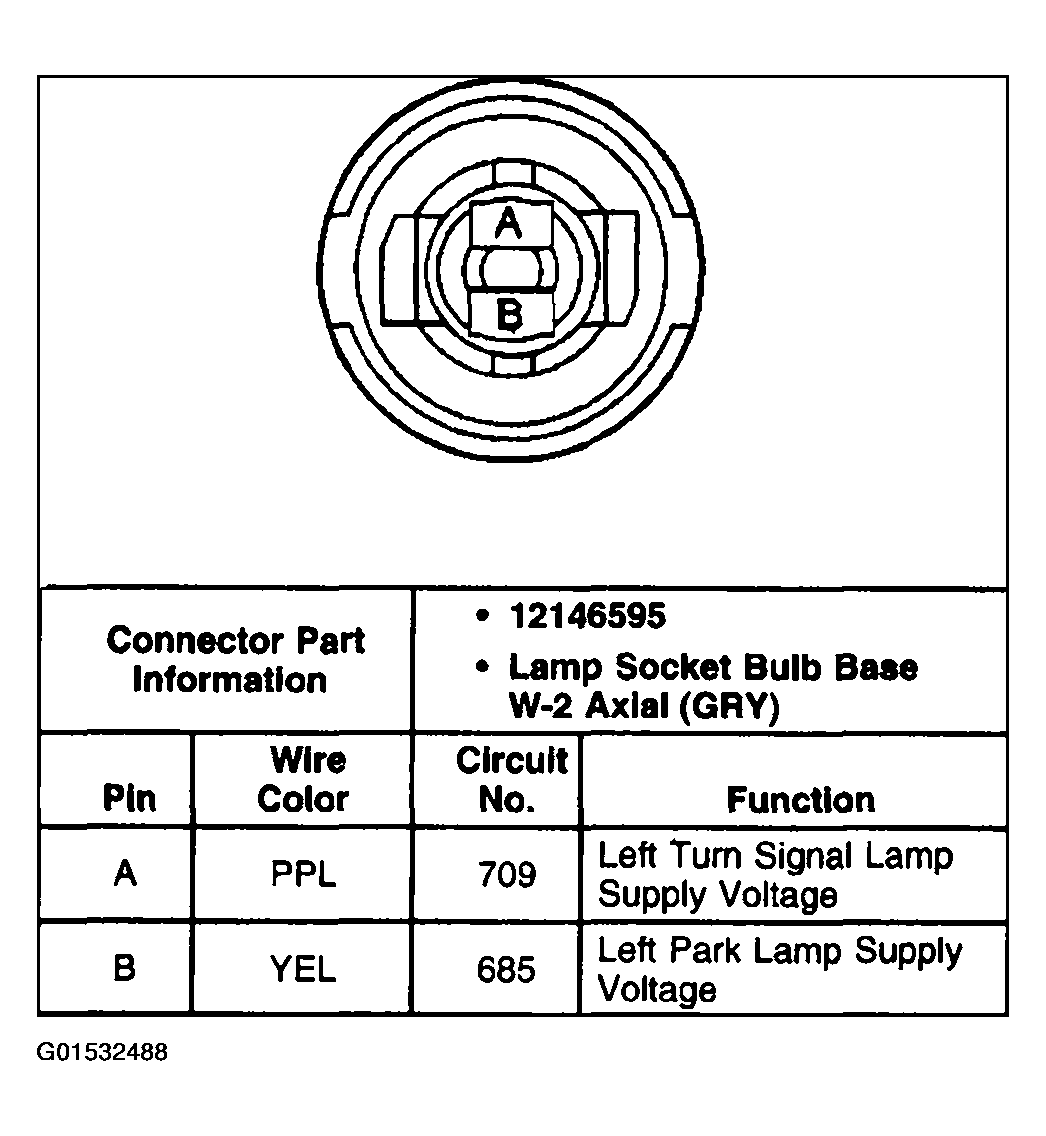

Fig 22: Identifying Marker Lamp - LF Connector

G01532488

Courtesy of GENERAL MOTORS CORP.

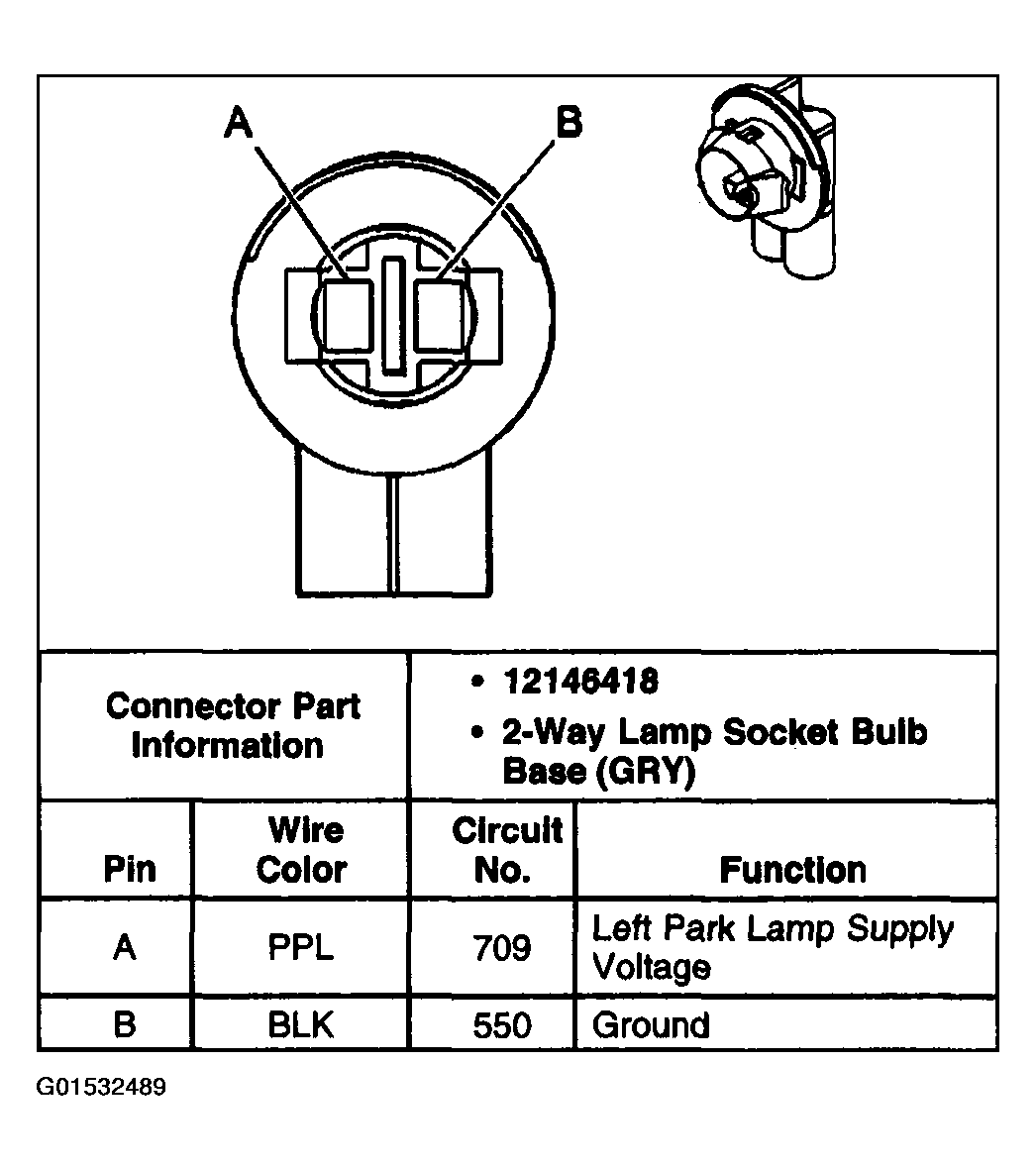

Fig 23: Identifying Marker Lamp - LR Connector

G01532489

Courtesy of GENERAL MOTORS CORP.

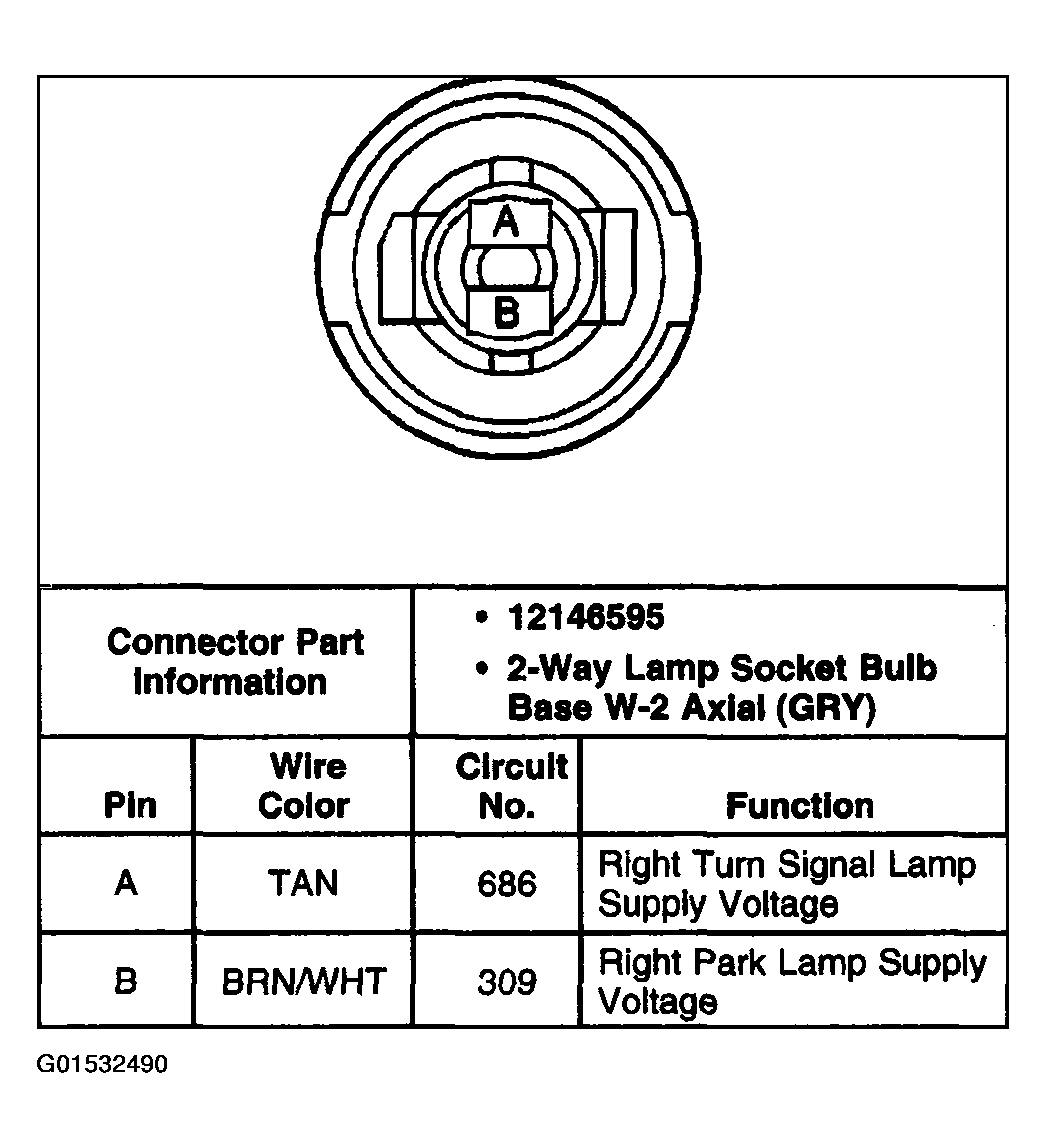

Fig 24: Identifying Marker Lamp - RF Connector

G01532490

Courtesy of GENERAL MOTORS CORP.

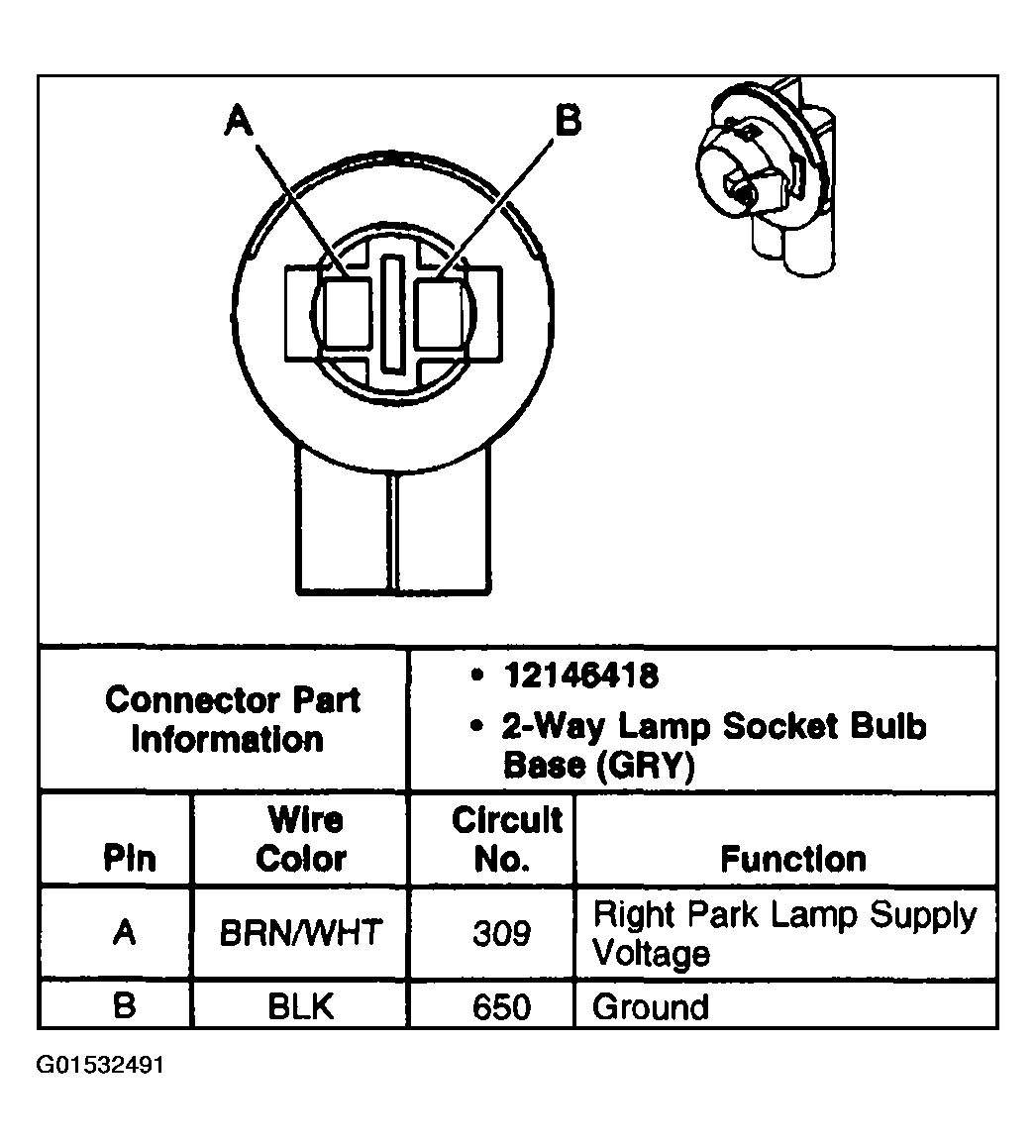

Fig 25: Identifying Marker Lamp - RR Connector

G01532491

Courtesy of GENERAL MOTORS CORP.

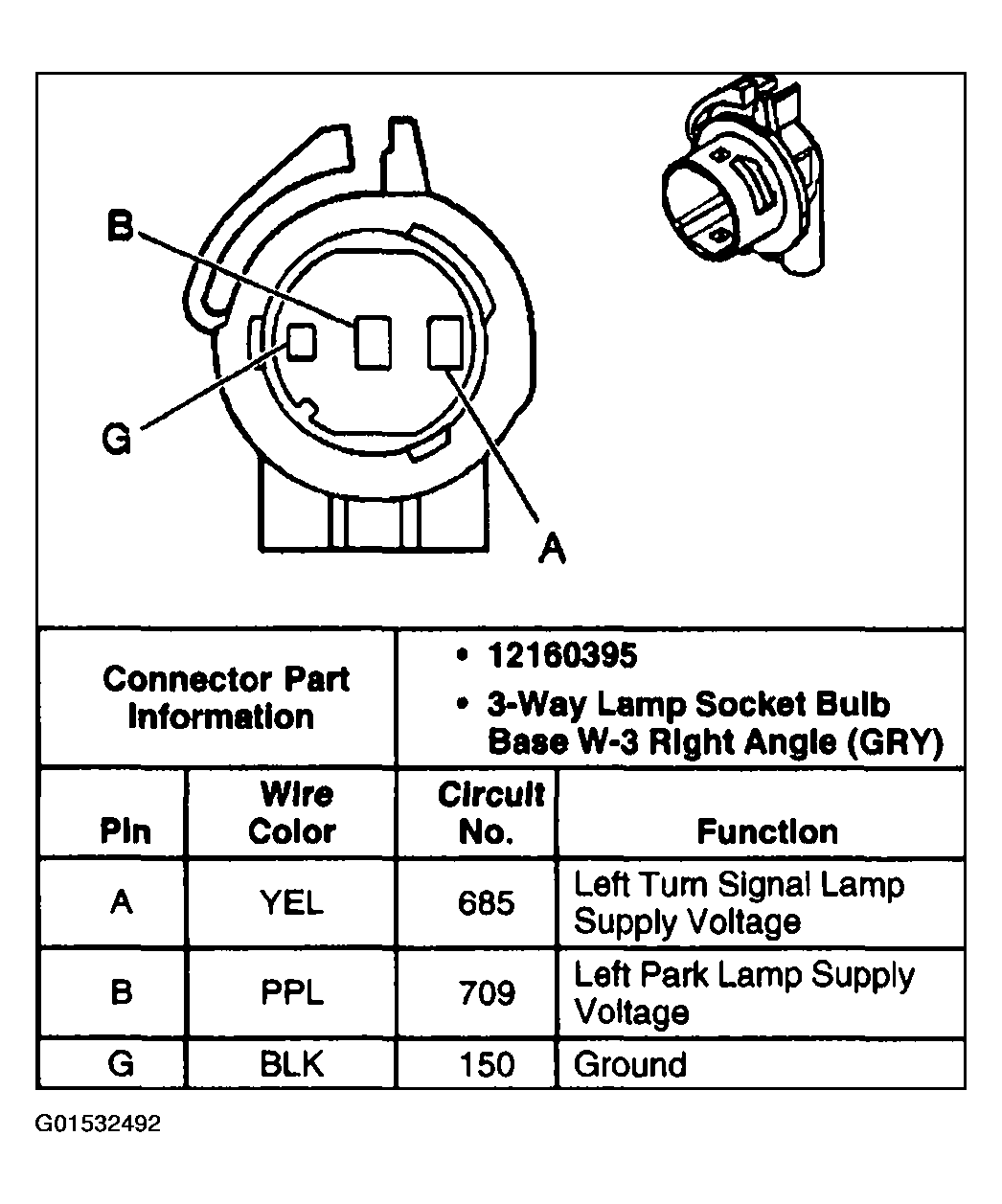

Fig 26: Identifying Park/Turn Signal Lamp - LF Connector

G01532492

Courtesy of GENERAL MOTORS CORP.

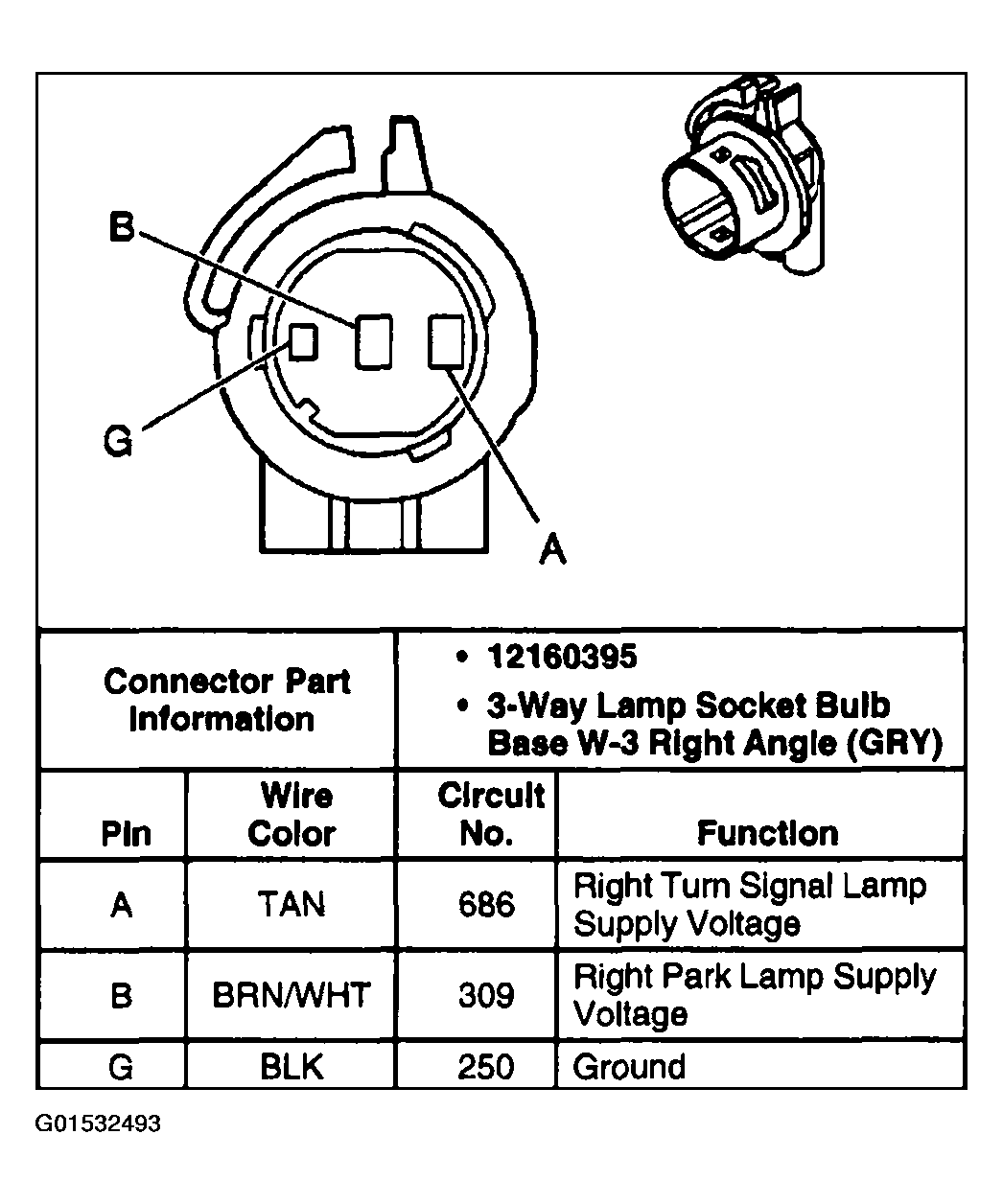

Fig 27: Identifying Park/Turn Signal Lamp - RF Connector

G01532493

Courtesy of GENERAL MOTORS CORP.

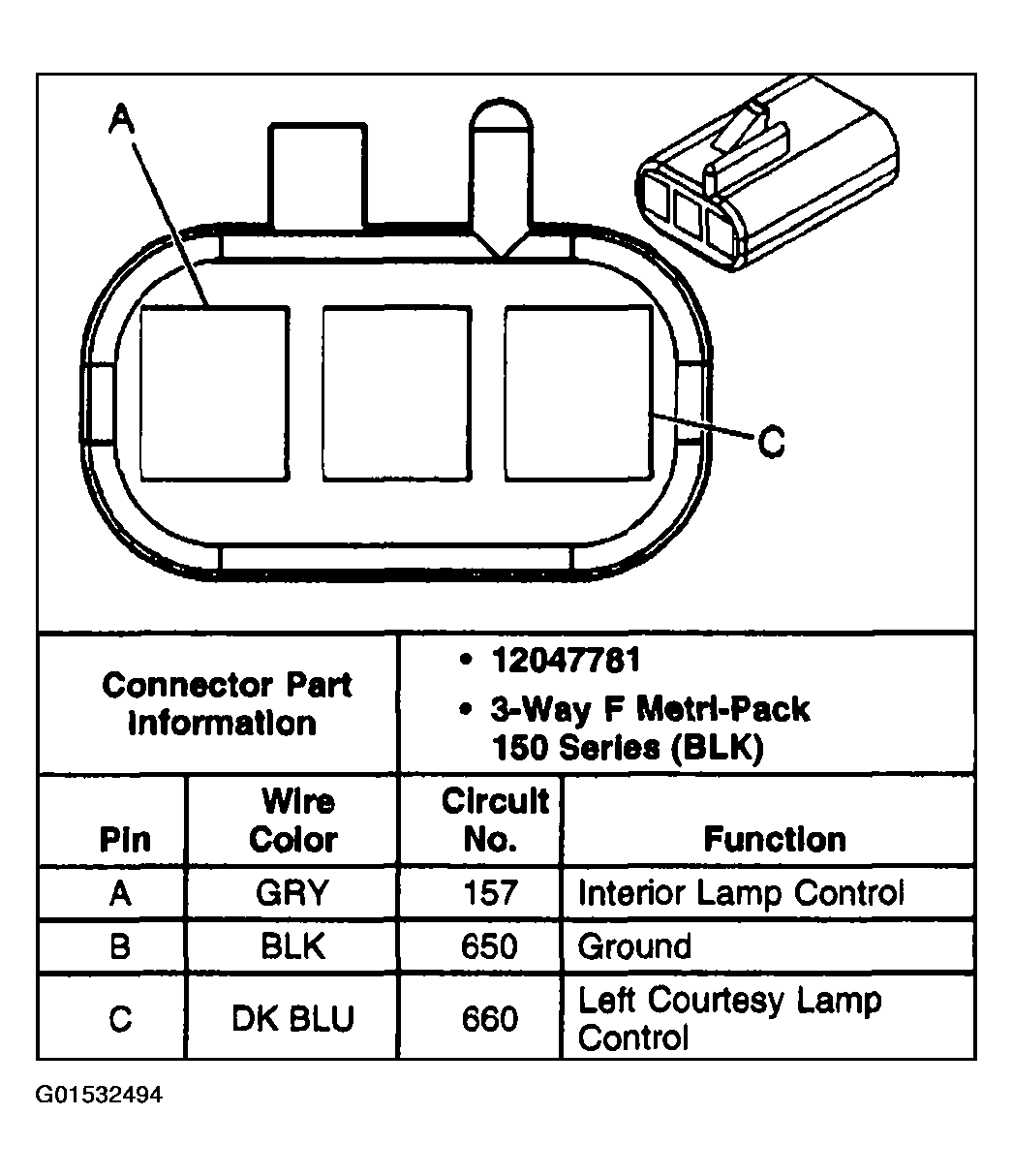

Fig 28: Identifying Reading Lamp Switch - LF Connector

G01532494

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying Reading Lamp Switch - LR Connector

G01532495

Courtesy of GENERAL MOTORS CORP.

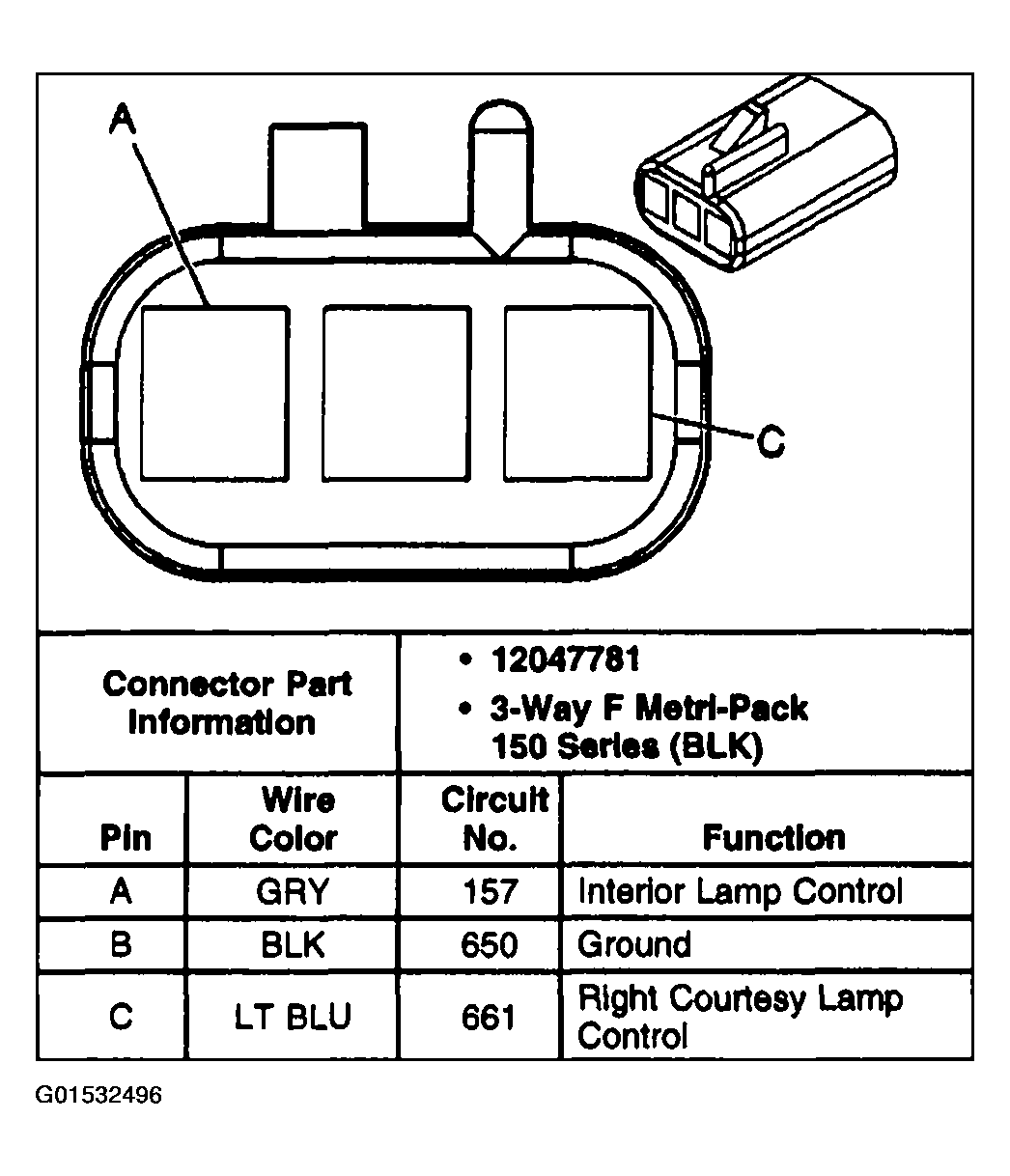

Fig 30: Identifying Reading Lamp Switch - RF Connector

G01532496

Courtesy of GENERAL MOTORS CORP.

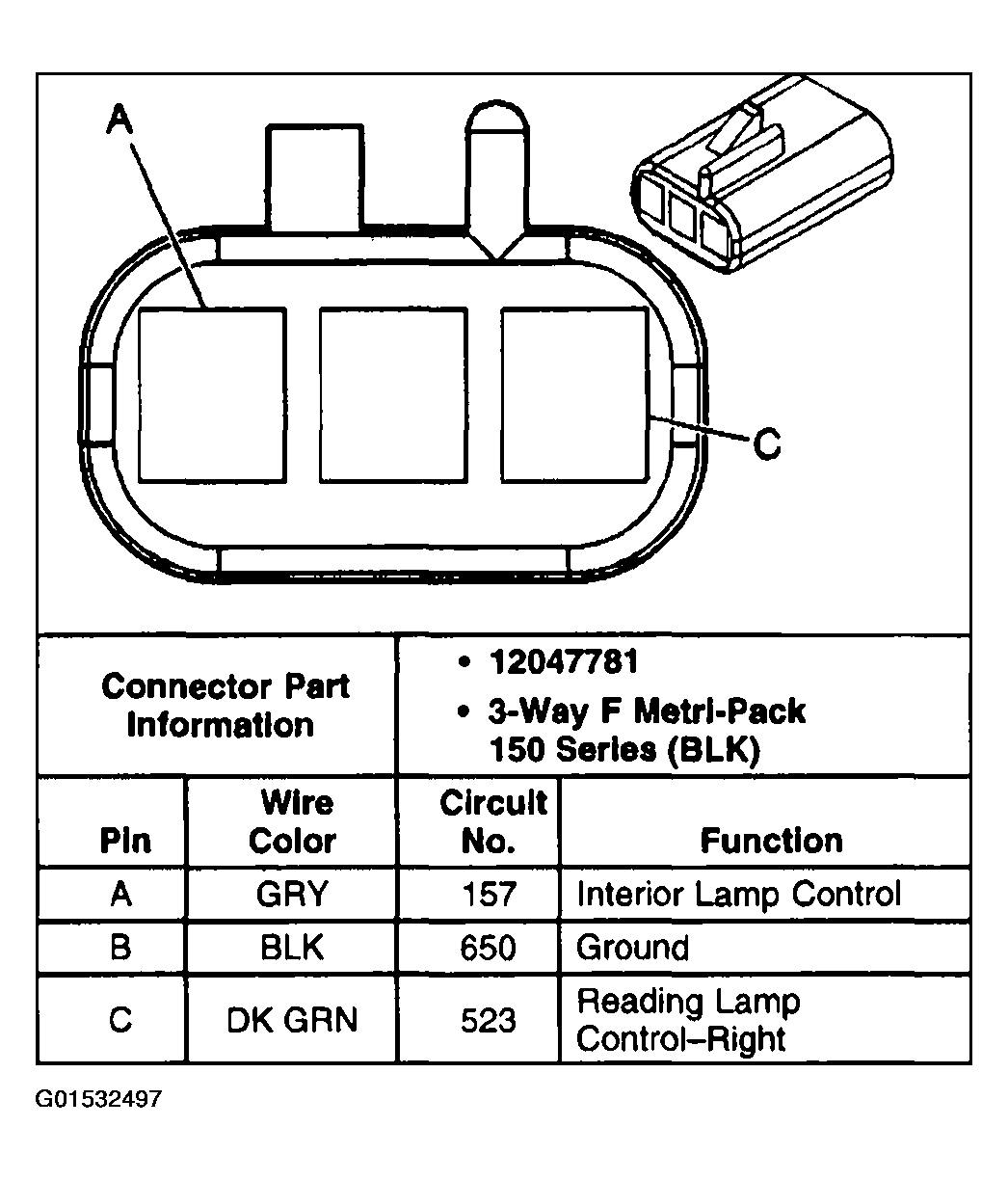

Fig 31: Identifying Reading Lamp Switch - RR Connector

G01532497

Courtesy of GENERAL MOTORS CORP.

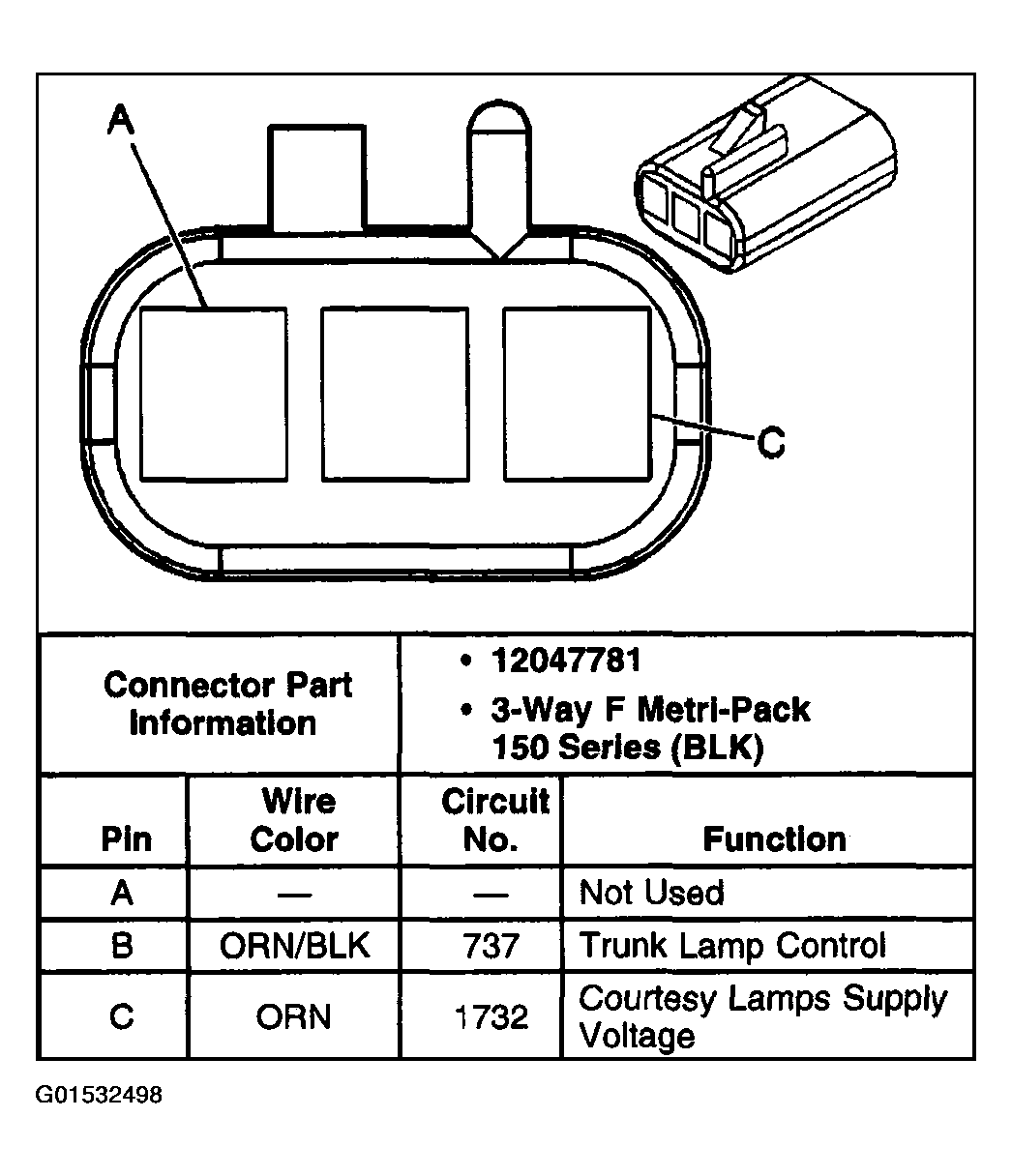

Fig 32: Identifying Rear Compartment Lamp Connector

G01532498

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying Stop Lamp/AT Shift Lock Control Switch C1 Connector

G01532499

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying Stop Lamp/AT Shift Lock Control Switch C2 Connector

G01532500

Courtesy of GENERAL MOTORS CORP.

Fig 35: Identifying Stop Lamp Switch Connector

G01532501

Courtesy of GENERAL MOTORS CORP.

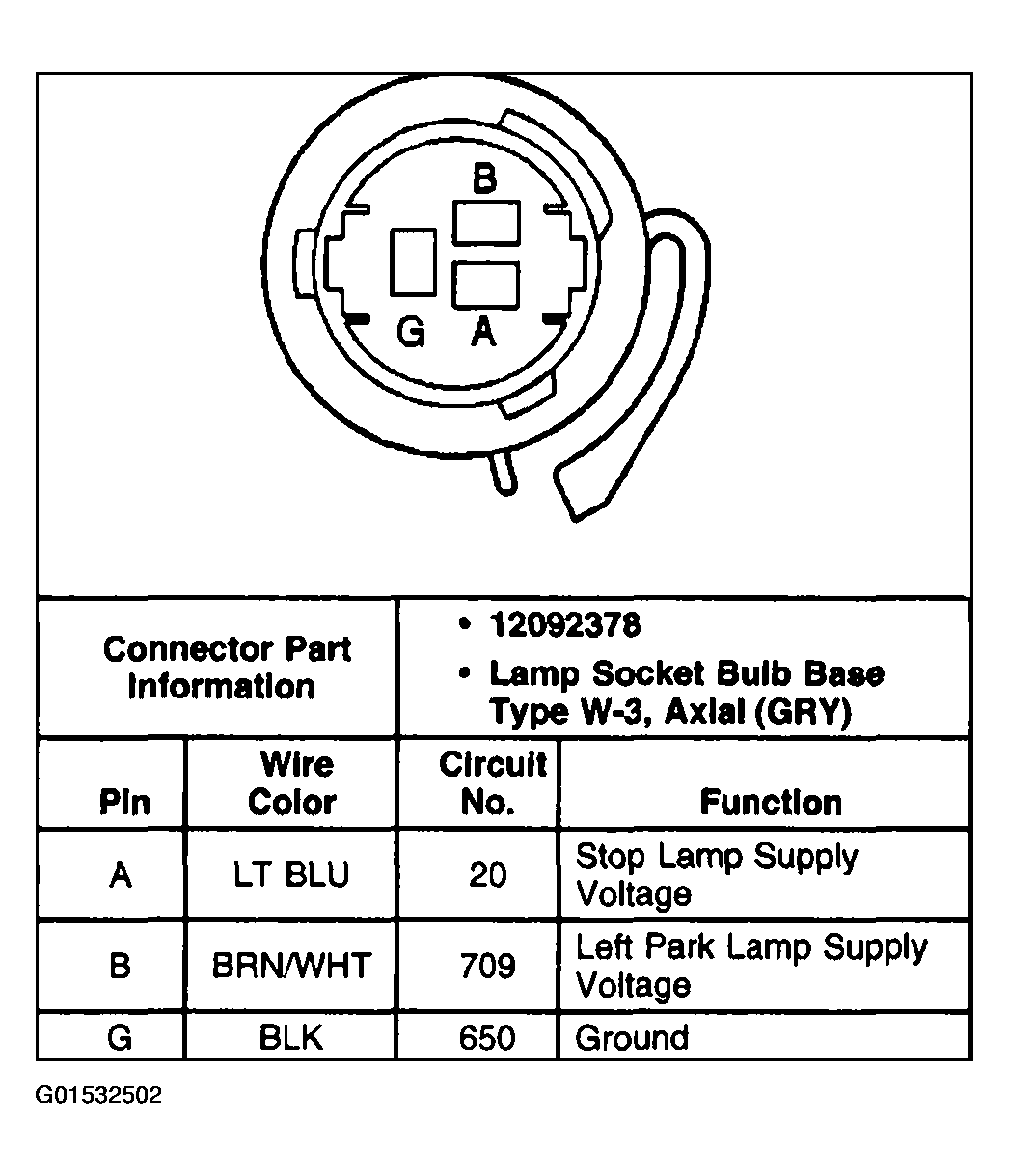

Fig 36: Identifying Tail/Stop Lamp - Left, Part Of Backup Lamp Assembly Connector

G01532502

Courtesy of GENERAL MOTORS CORP.

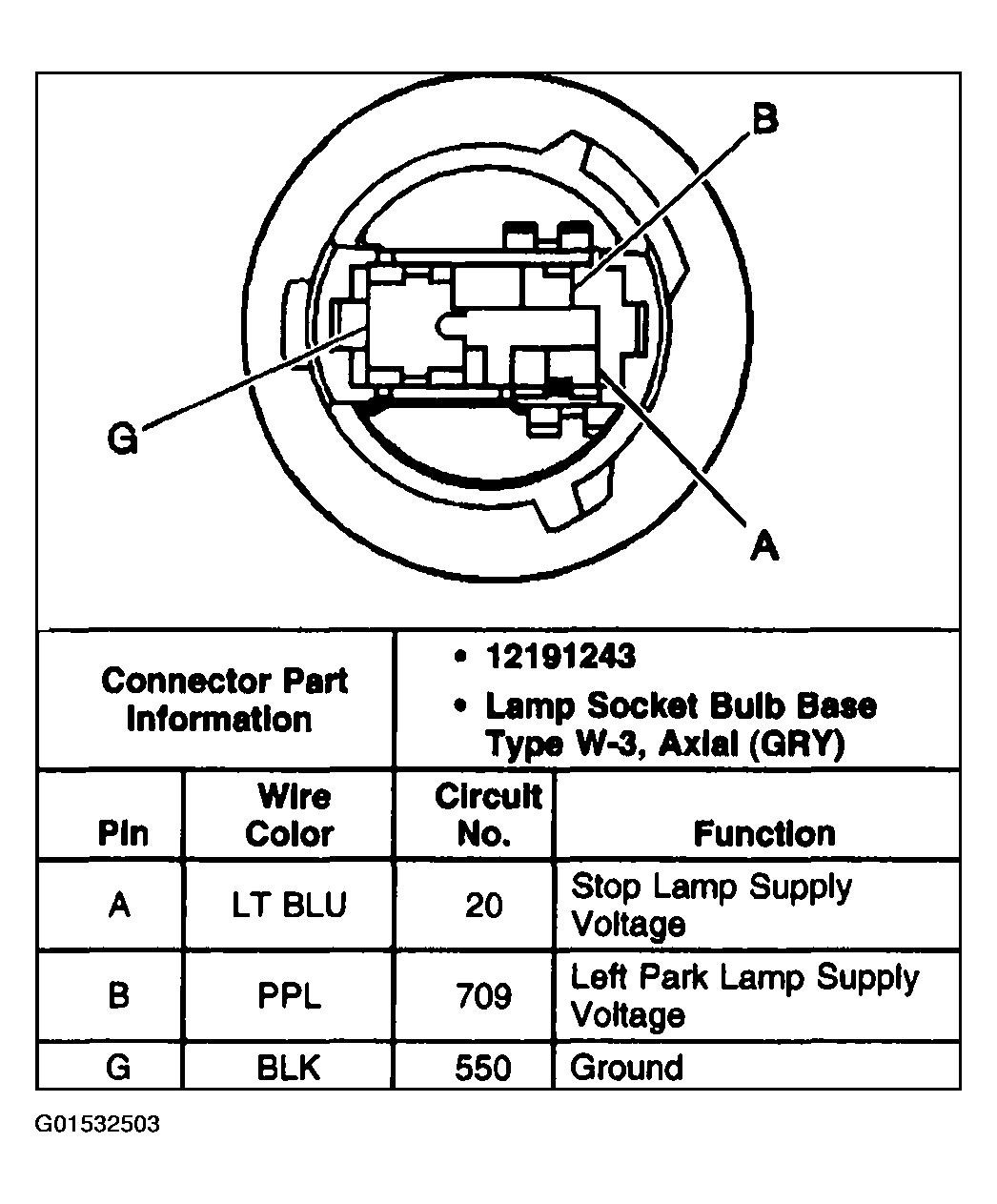

Fig 37: Identifying Tail/Stop Lamp - Left, Part Of Tail Lamp Assembly Connector

G01532503

Courtesy of GENERAL MOTORS CORP.

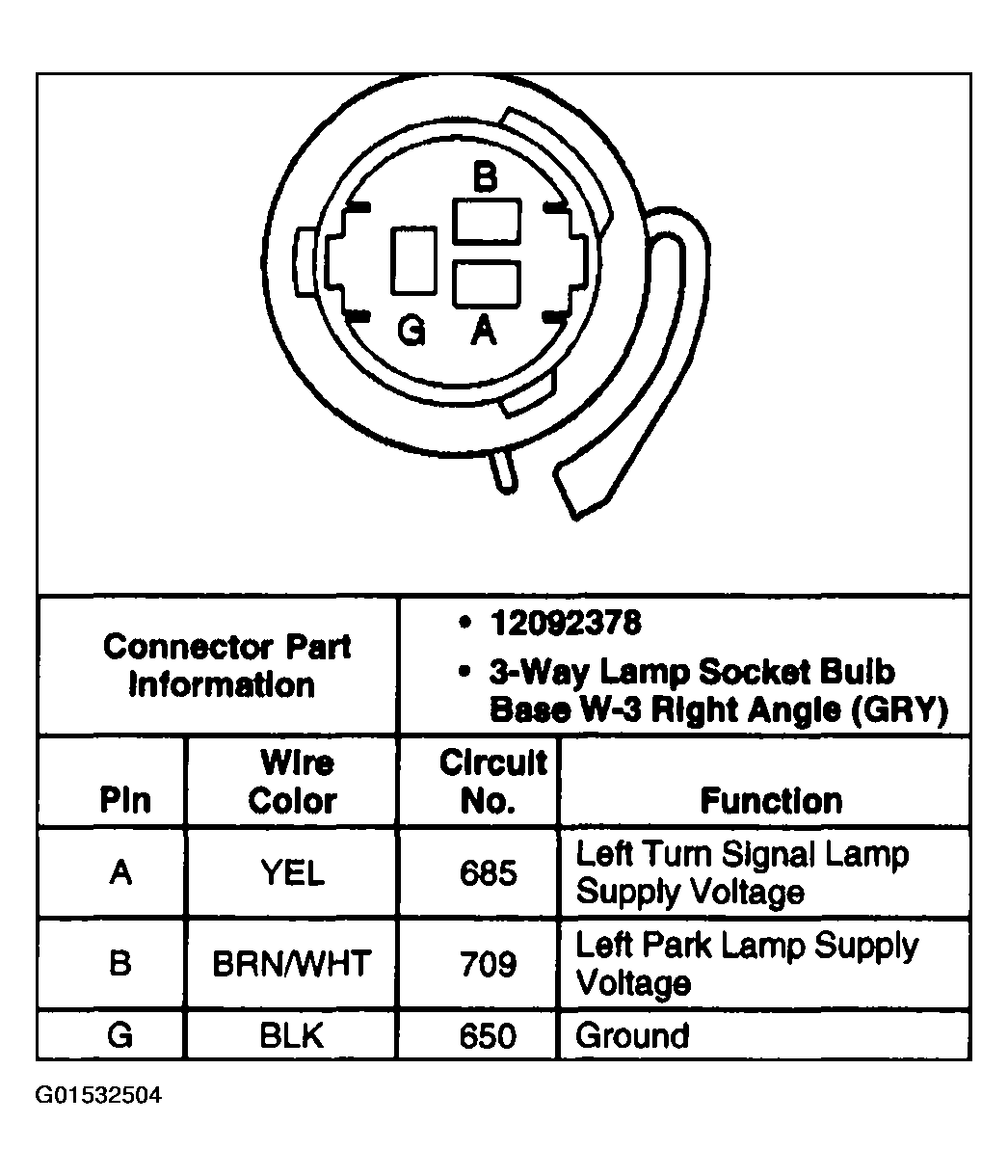

Fig 38: Identifying Tail/Turn Signal Lamp - Left, Part Of Backup Lamp Assembly Connector

G01532504

Courtesy of GENERAL MOTORS CORP.

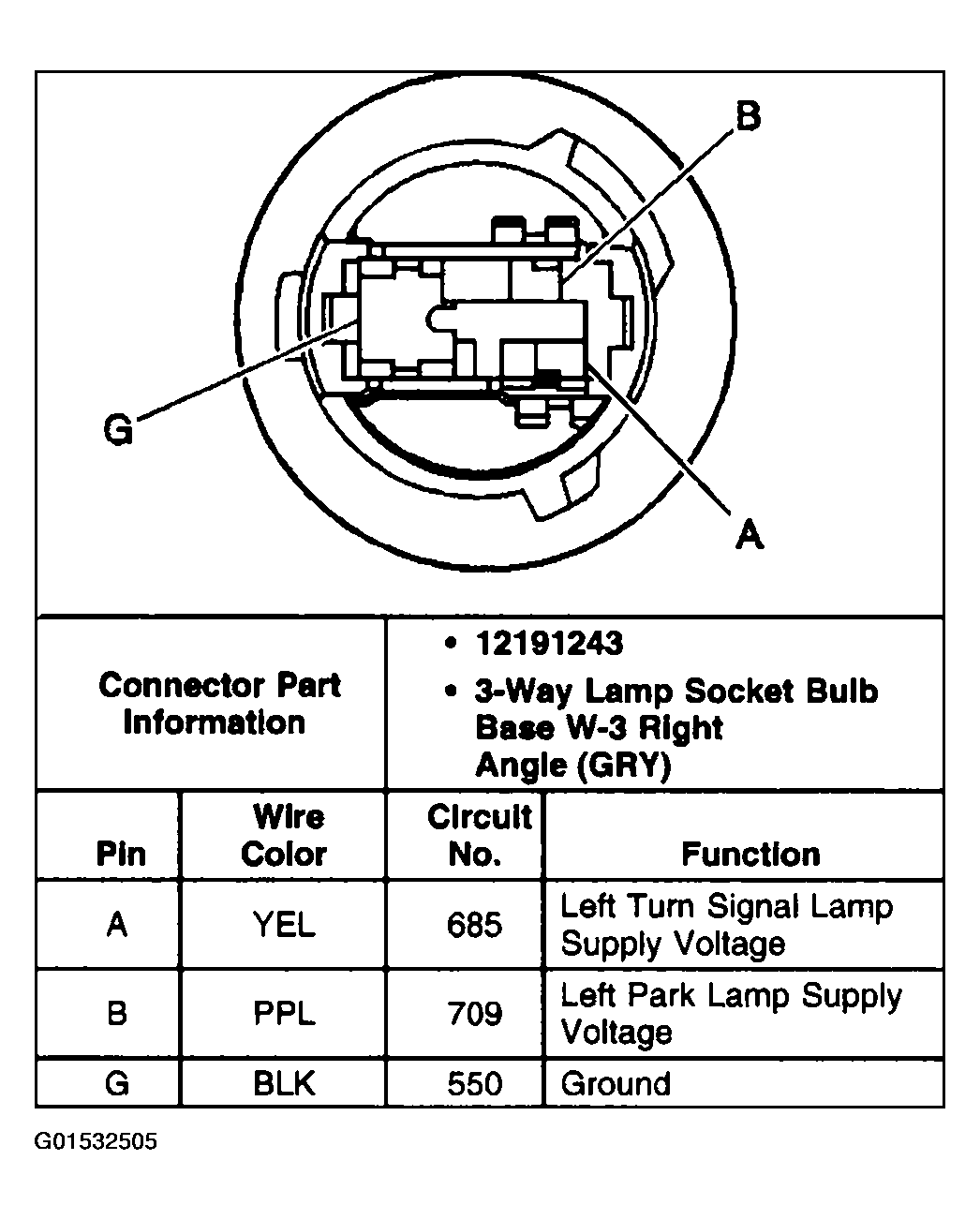

Fig 39: Identifying Tail/Turn Signal Lamp - Left, Part Of Tail Lamp Assembly Connector

G01532505

Courtesy of GENERAL MOTORS CORP.

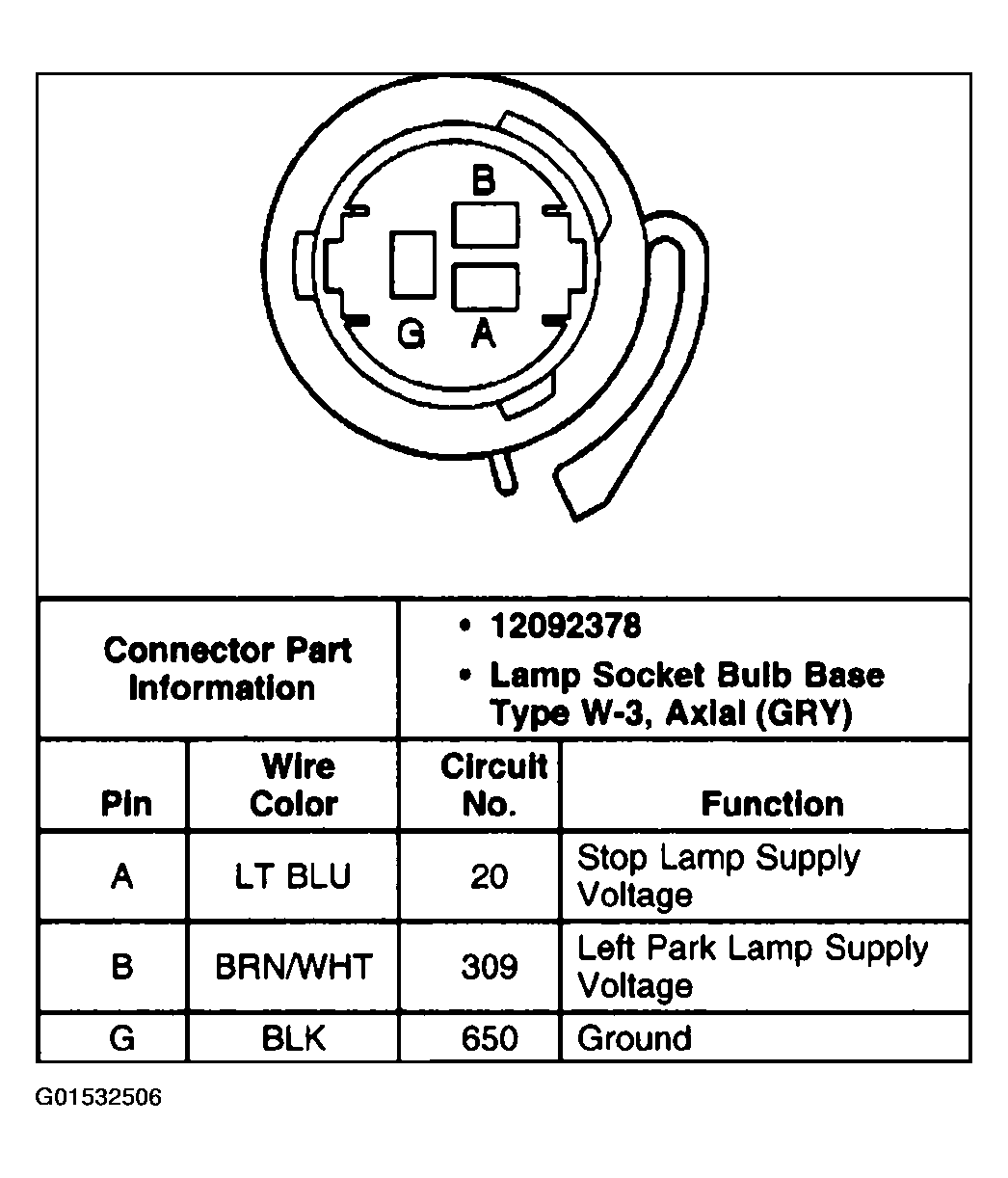

Fig 40: Identifying Tail/Stop Lamp - Right, Part Of Backup Lamp Assembly Connector

G01532506

Courtesy of GENERAL MOTORS CORP.

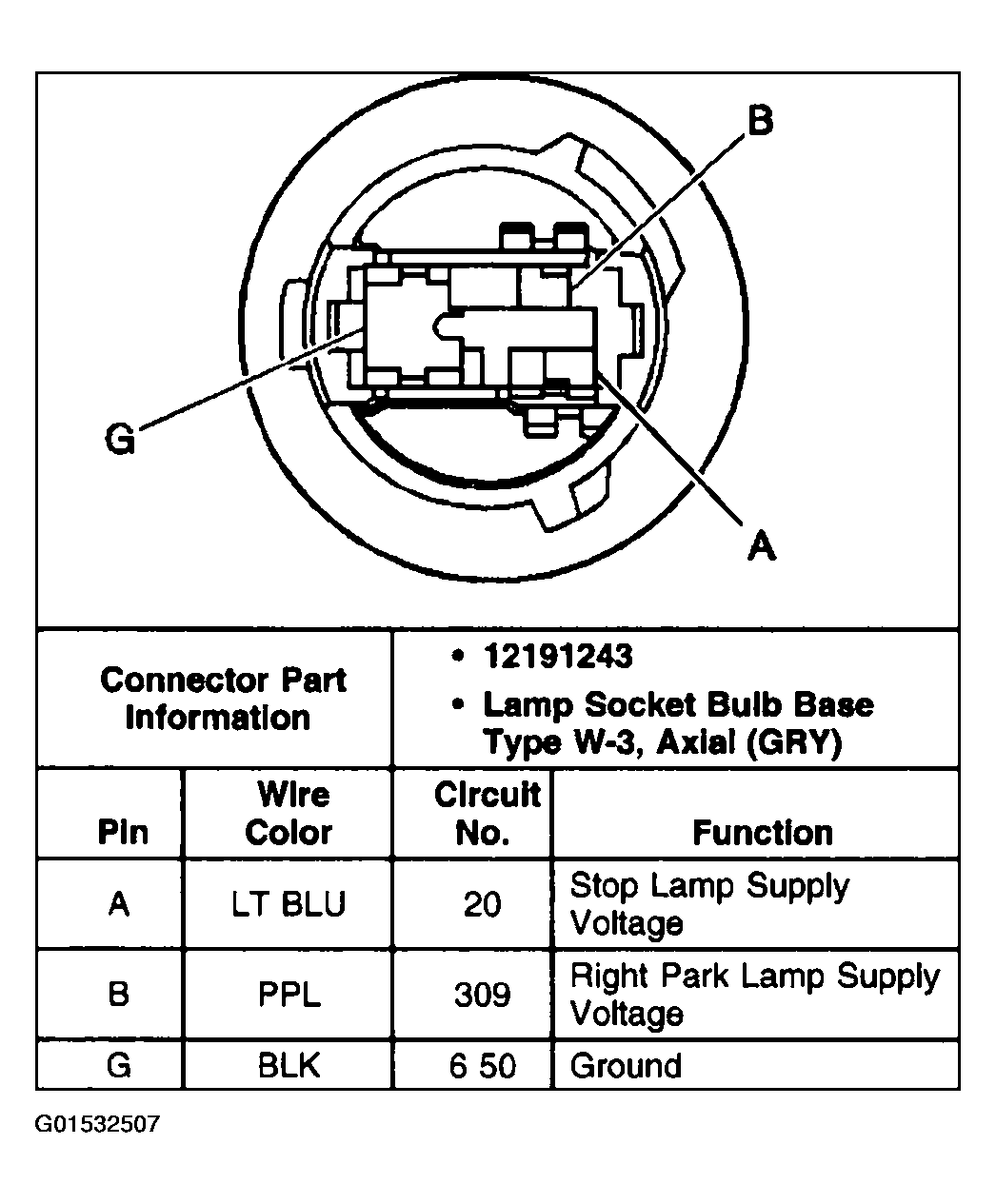

Fig 41: Identifying Tail/Stop Lamp - Right, Part Of Tail Lamp Assembly Connector

G01532507

Courtesy of GENERAL MOTORS CORP.

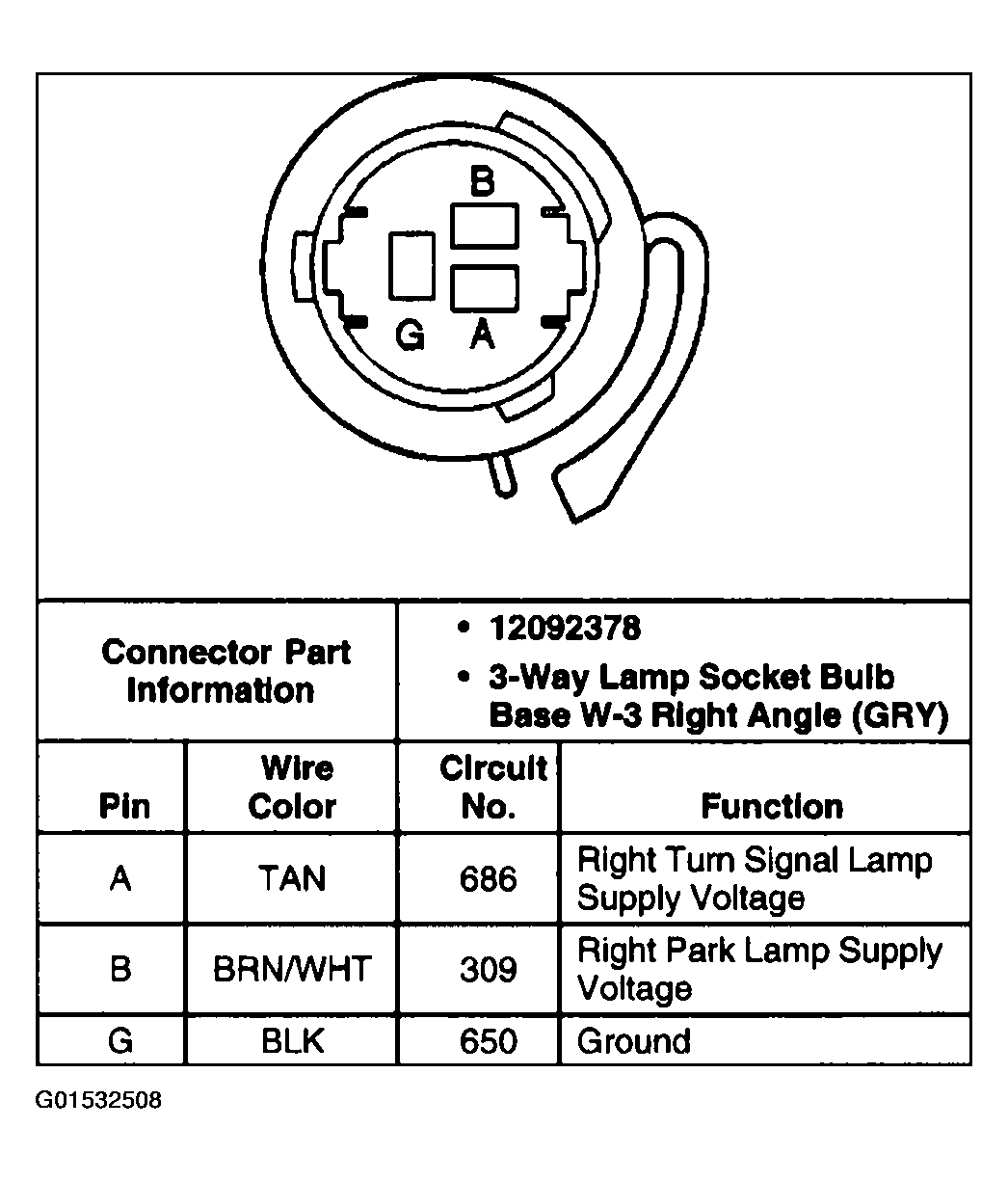

Fig 42: Identifying Tail/Turn Signal Lamp - Right, Part Of Backup Lamp Assembly Connector

G01532508

Courtesy of GENERAL MOTORS CORP.

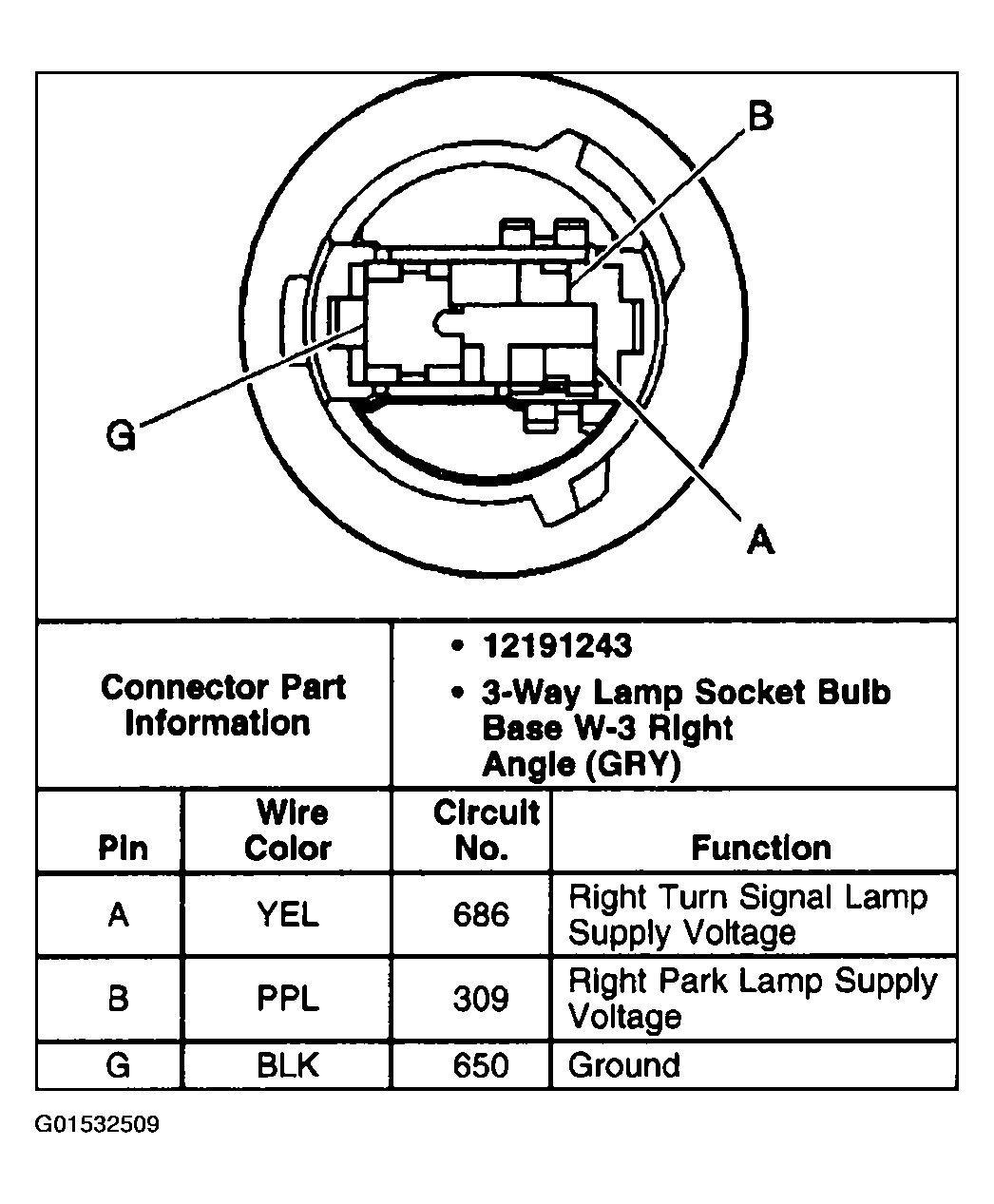

Fig 43: Identifying Tail/Turn Signal Lamp - Right, Part Of Tail Lamp Assembly Connector

G01532509

Courtesy of GENERAL MOTORS CORP.

Fig 44: Identifying Turn Signal/Hazard Flasher Module Connector

G01532510

Courtesy of GENERAL MOTORS CORP.

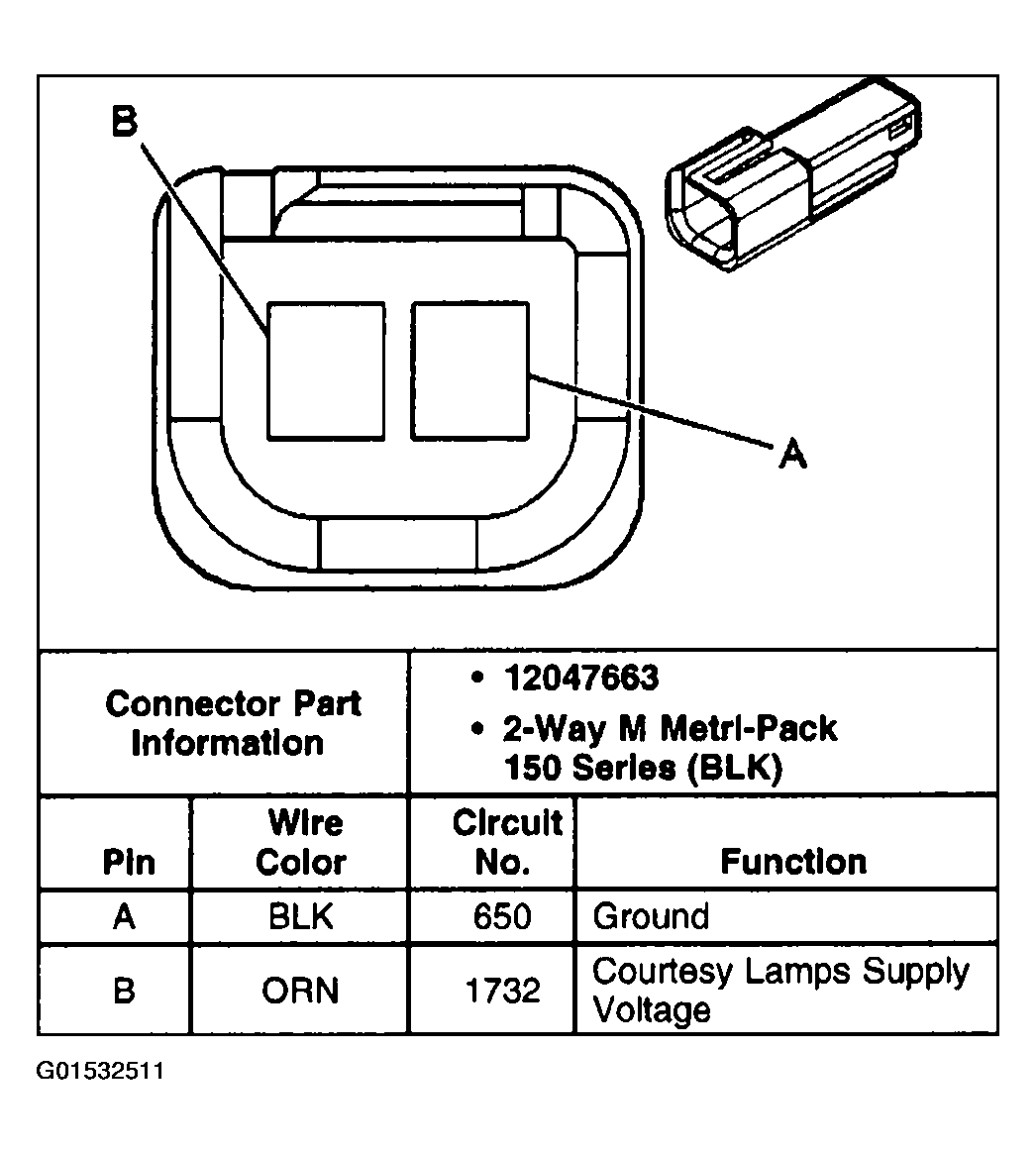

Fig 45: Identifying Vanity Mirrors - Left And Right Connector

G01532511

Courtesy of GENERAL MOTORS CORP.
