Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

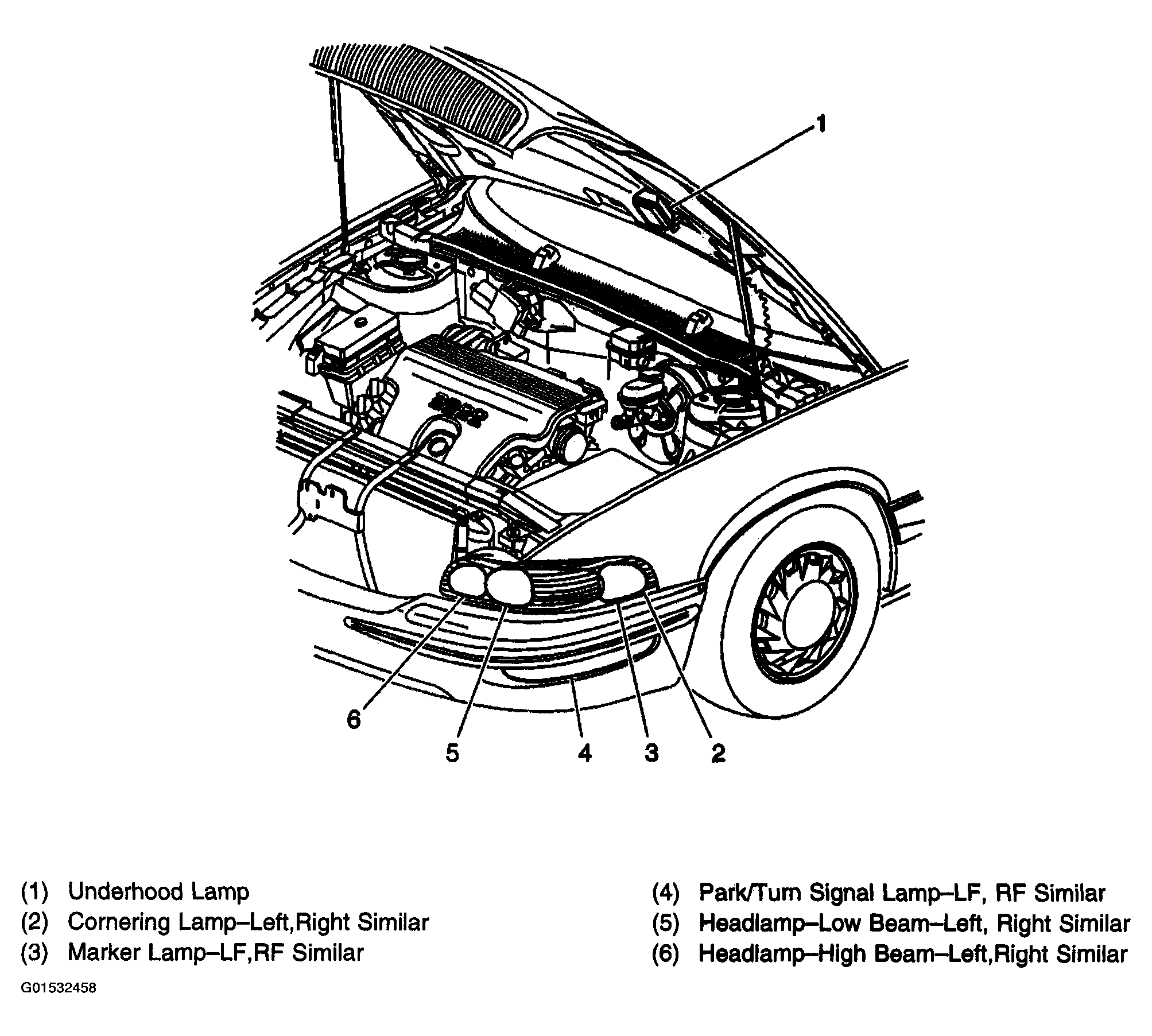

Fig 1: Component Location - Front Exterior Lamp Views

Courtesy of GENERAL MOTORS CORP.

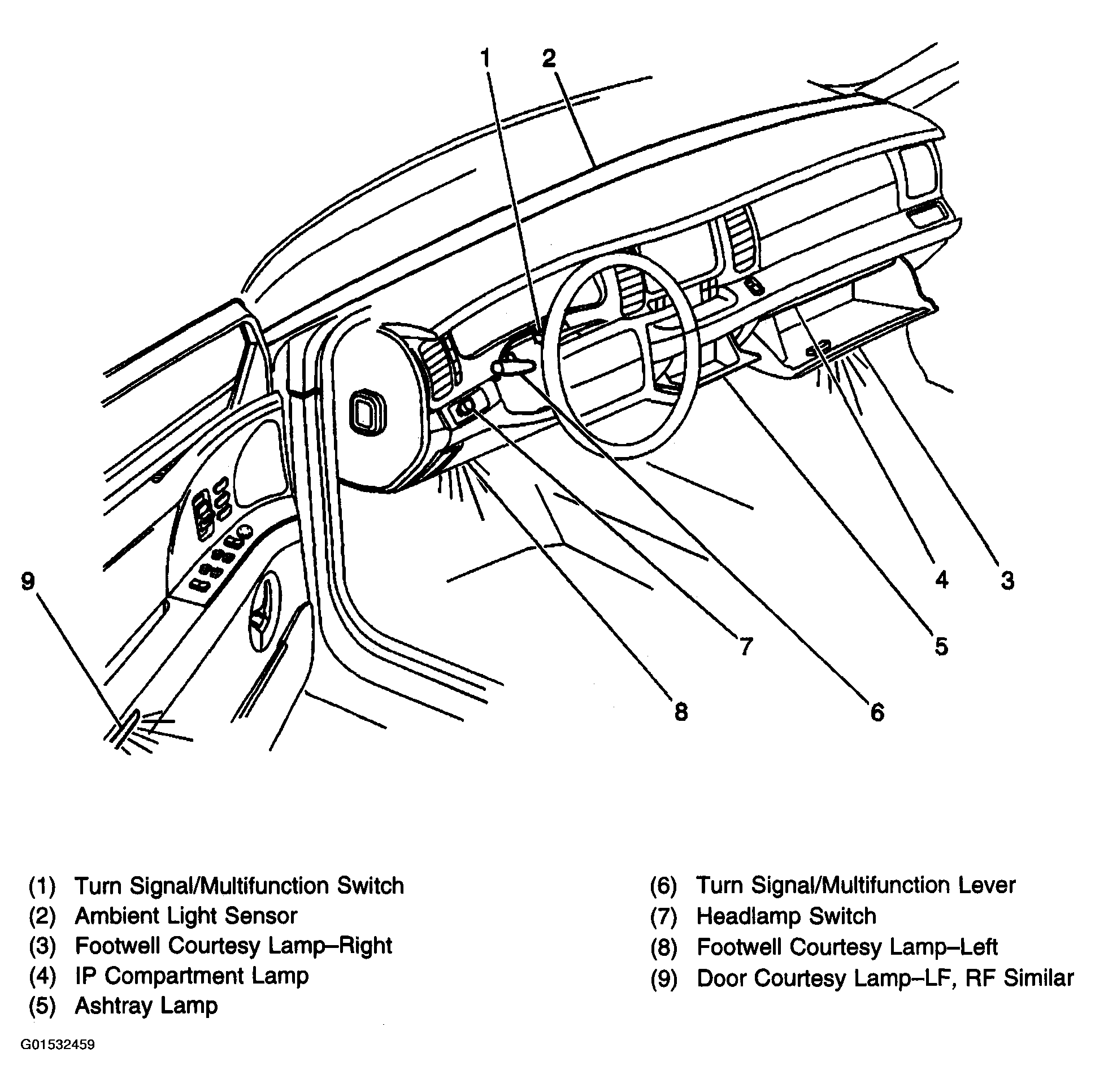

Fig 2: Component Location - Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

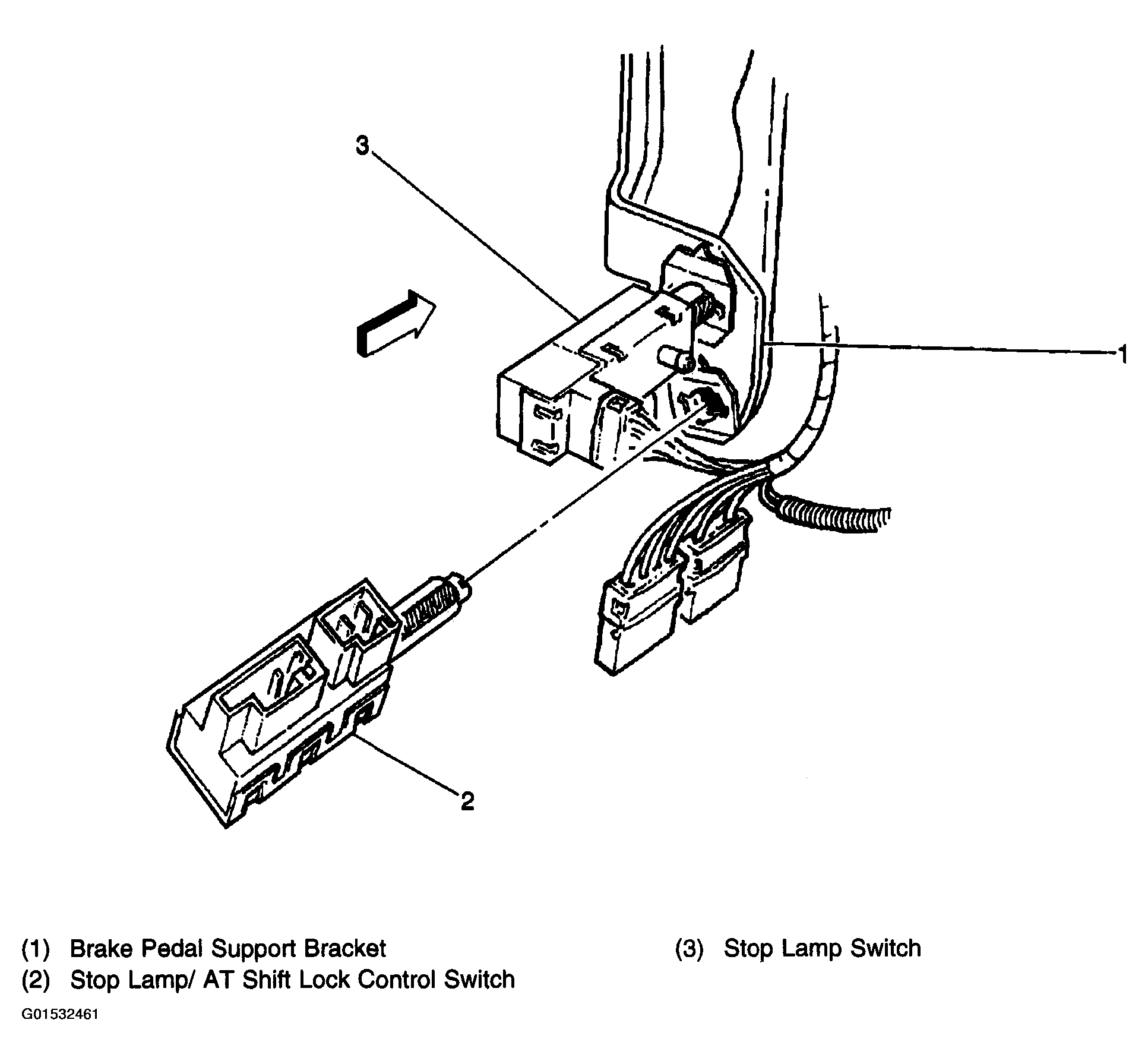

Fig 3: Component Location - Center Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

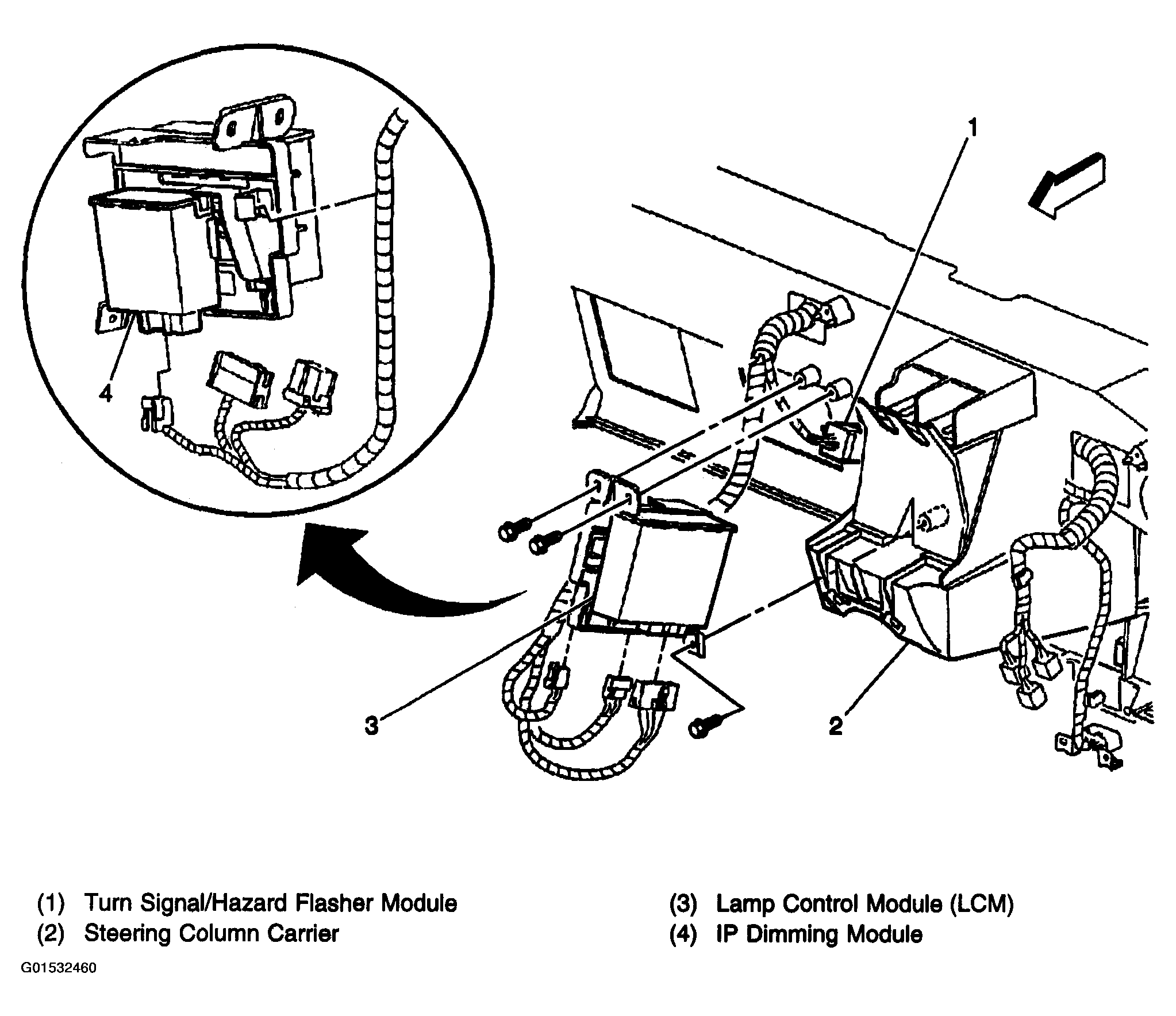

Fig 4: Component Location - Under Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

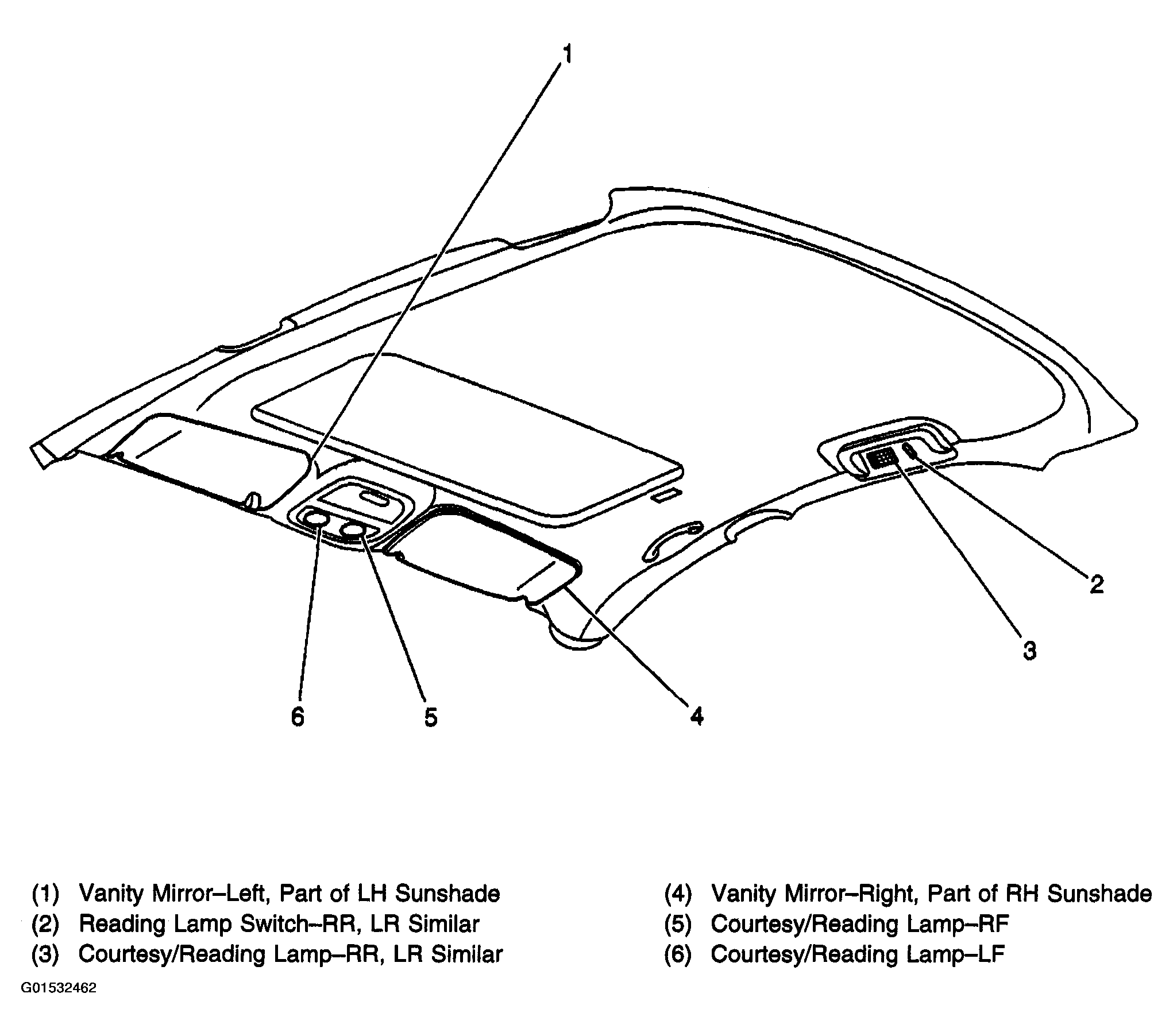

Fig 5: Component Location - Headliner Component Views

Courtesy of GENERAL MOTORS CORP.

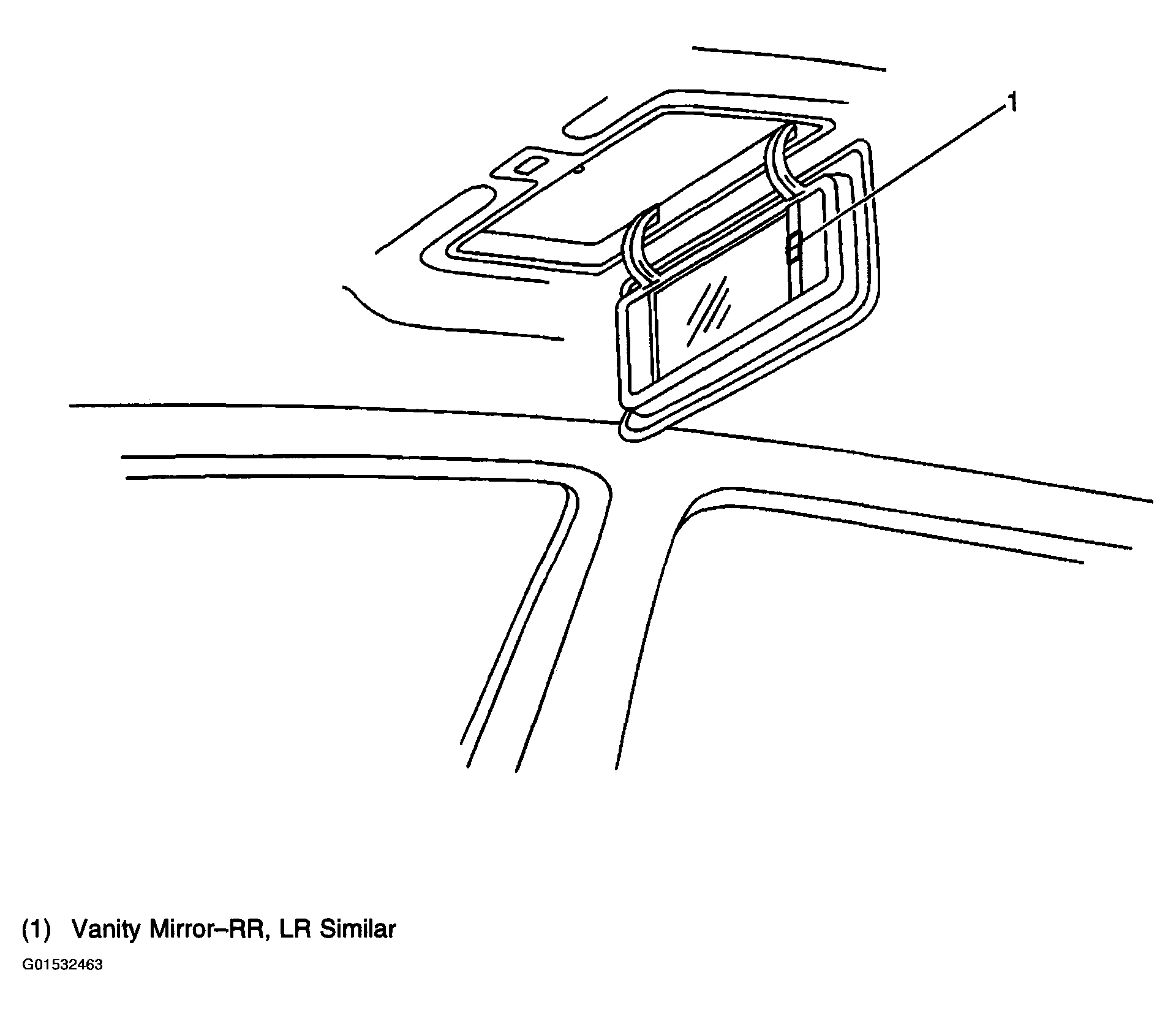

Fig 6: Component Location - Vanity Mirror View

Courtesy of GENERAL MOTORS CORP.

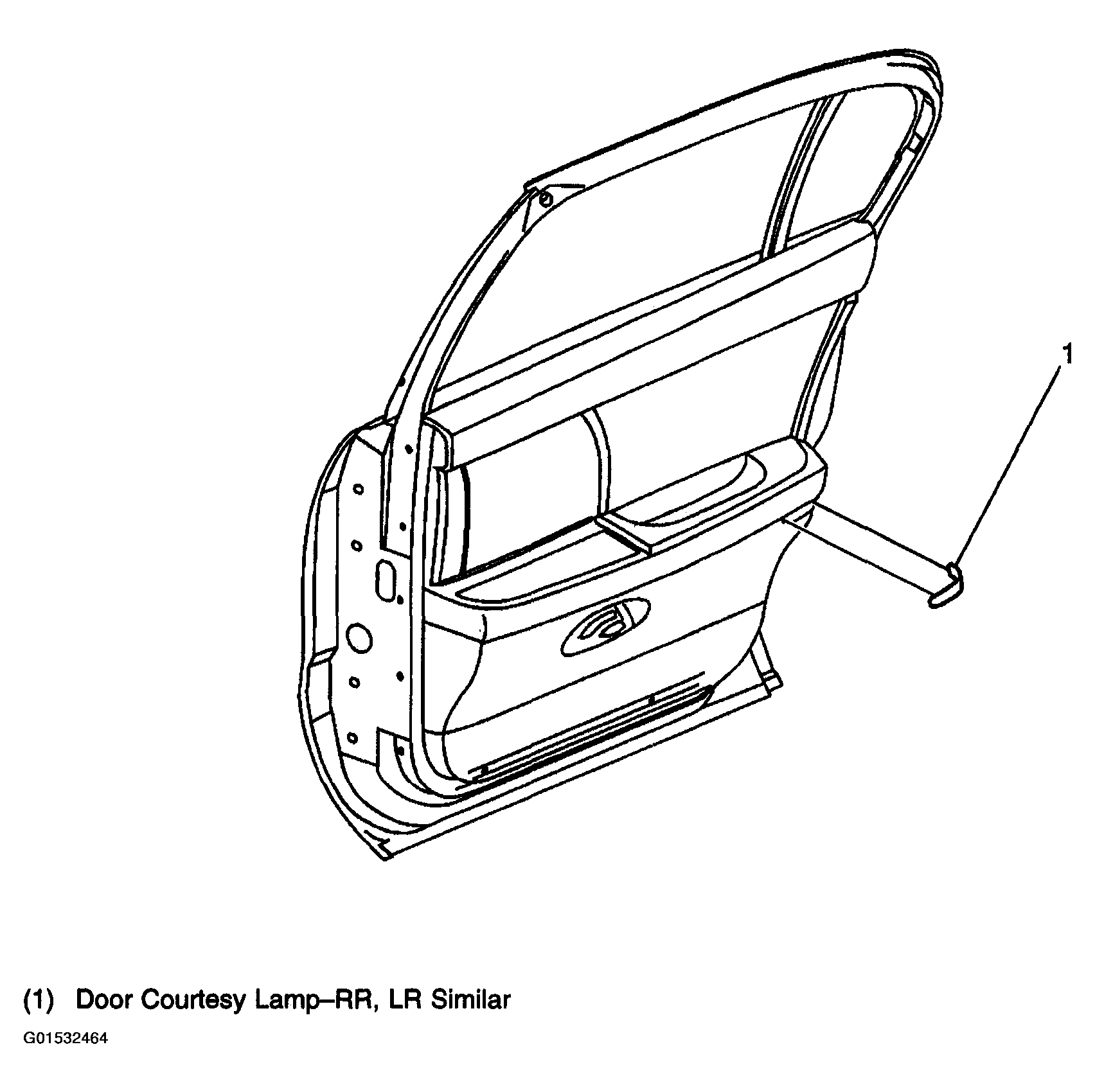

Fig 7: Component Location - Rear Door Courtesy View

Courtesy of GENERAL MOTORS CORP.

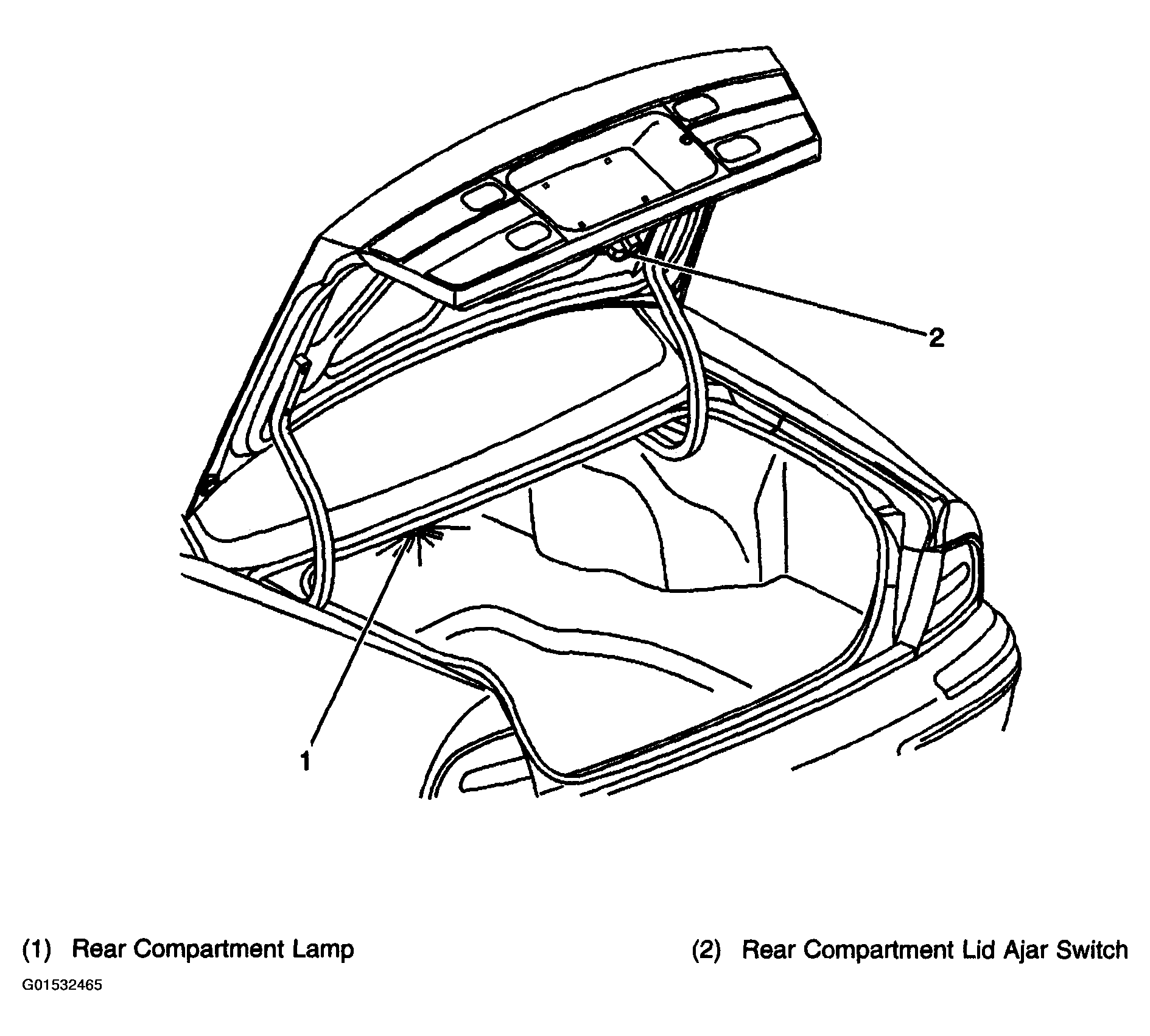

Fig 8: Component Location - Rear Compartment Courtesy Lamp View

Courtesy of GENERAL MOTORS CORP.

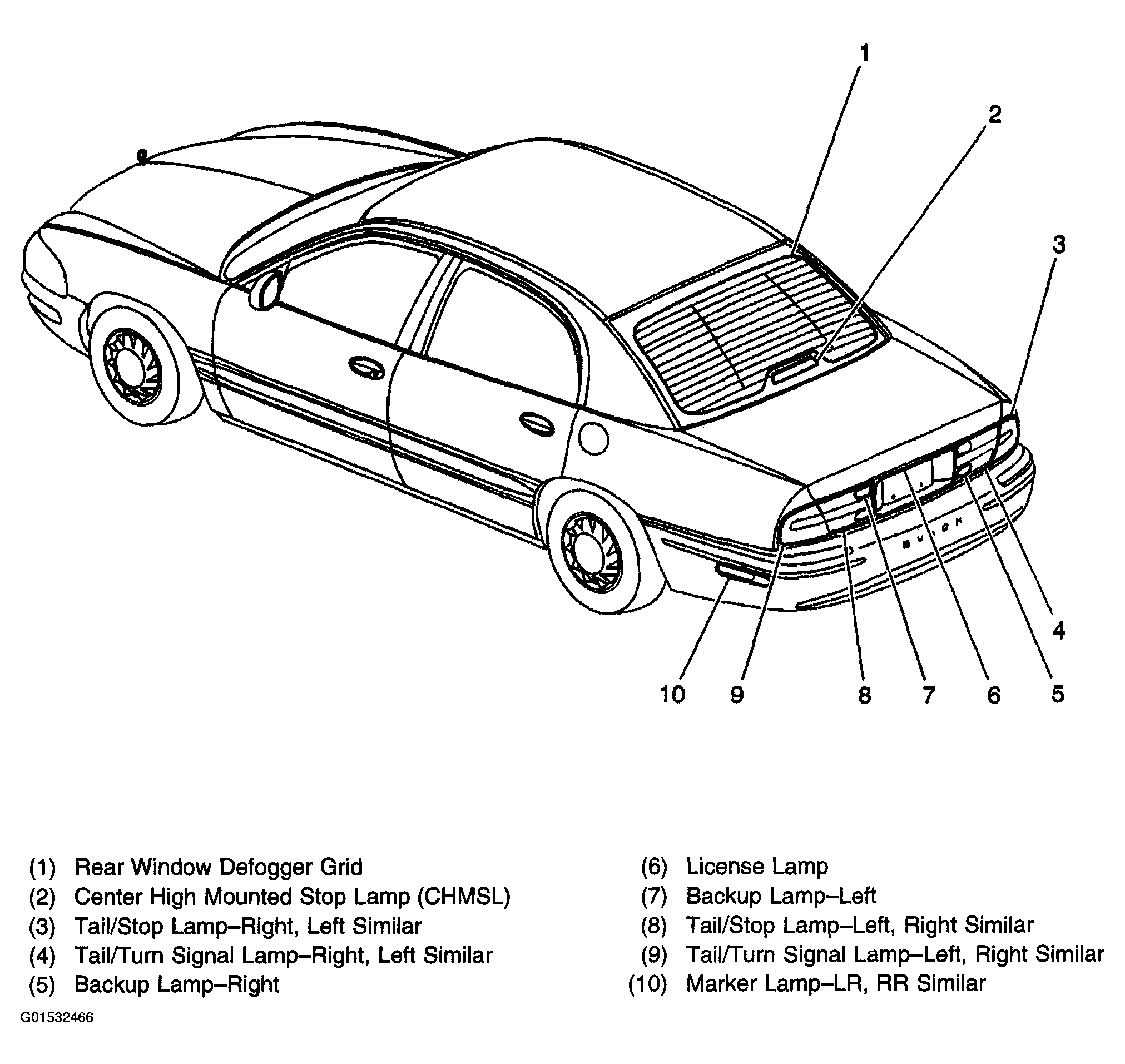

Fig 9: Component Location - Rear Exterior Lamp Views

Courtesy of GENERAL MOTORS CORP.
