Cruise Control Connector End Views

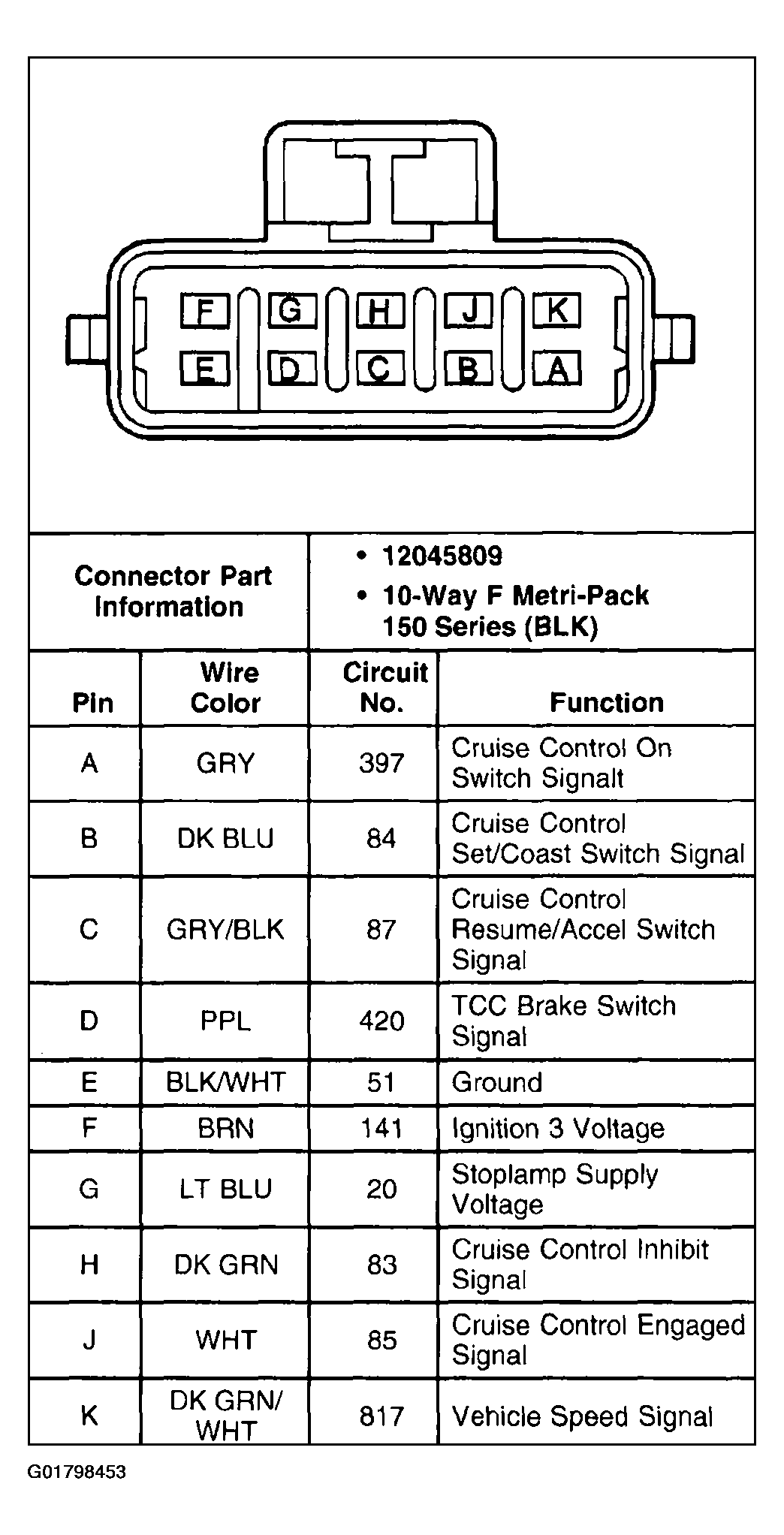

Fig 1: Identifying Cruise Control Module (CCM) Harness Connector Terminals
G01798453Courtesy of GENERAL MOTORS CORP.

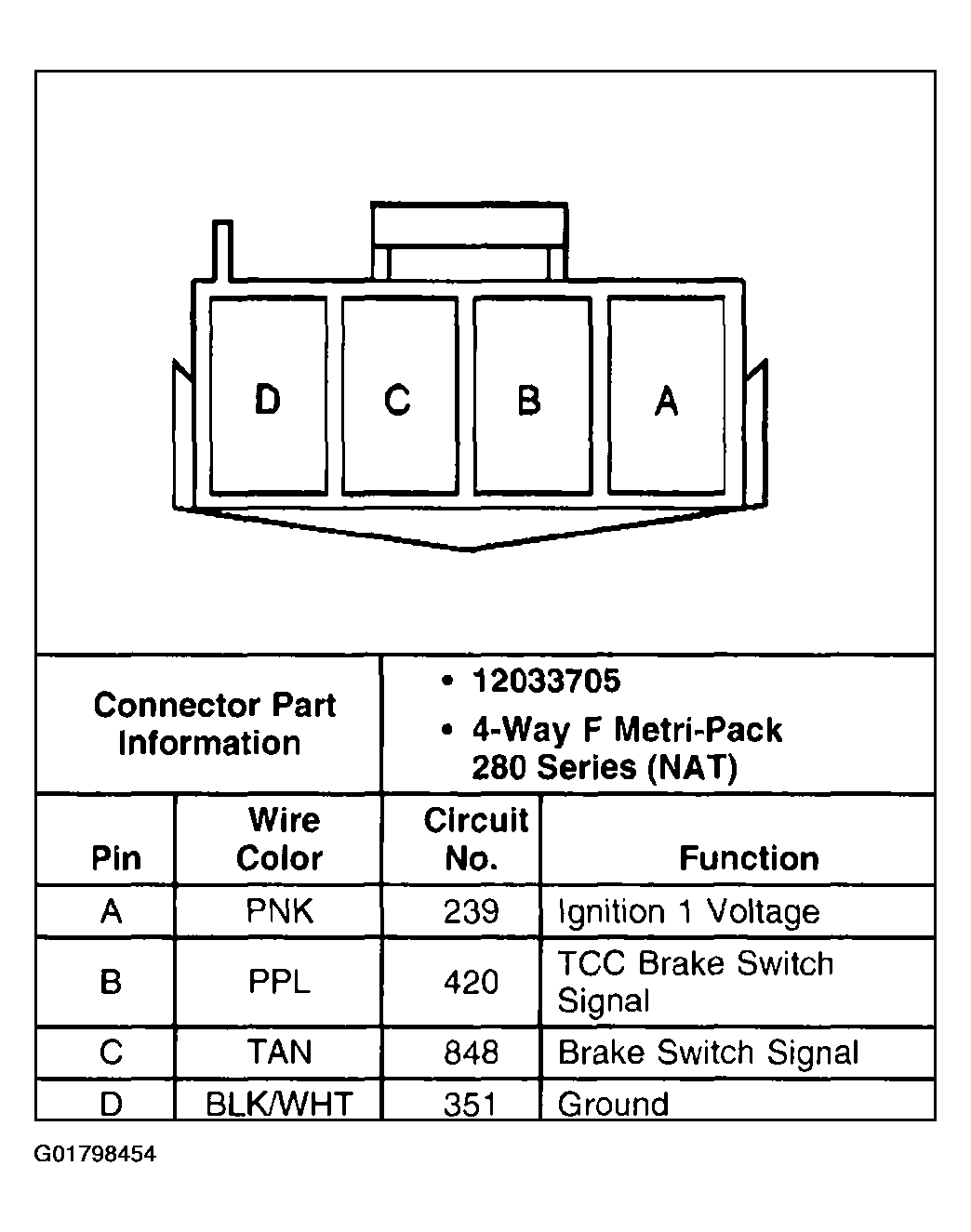

Fig 2: Identifying Stop Lamp Switch Harness Connector Terminals
G01798454Courtesy of GENERAL MOTORS CORP.
