Data Link Communications Connector End Views

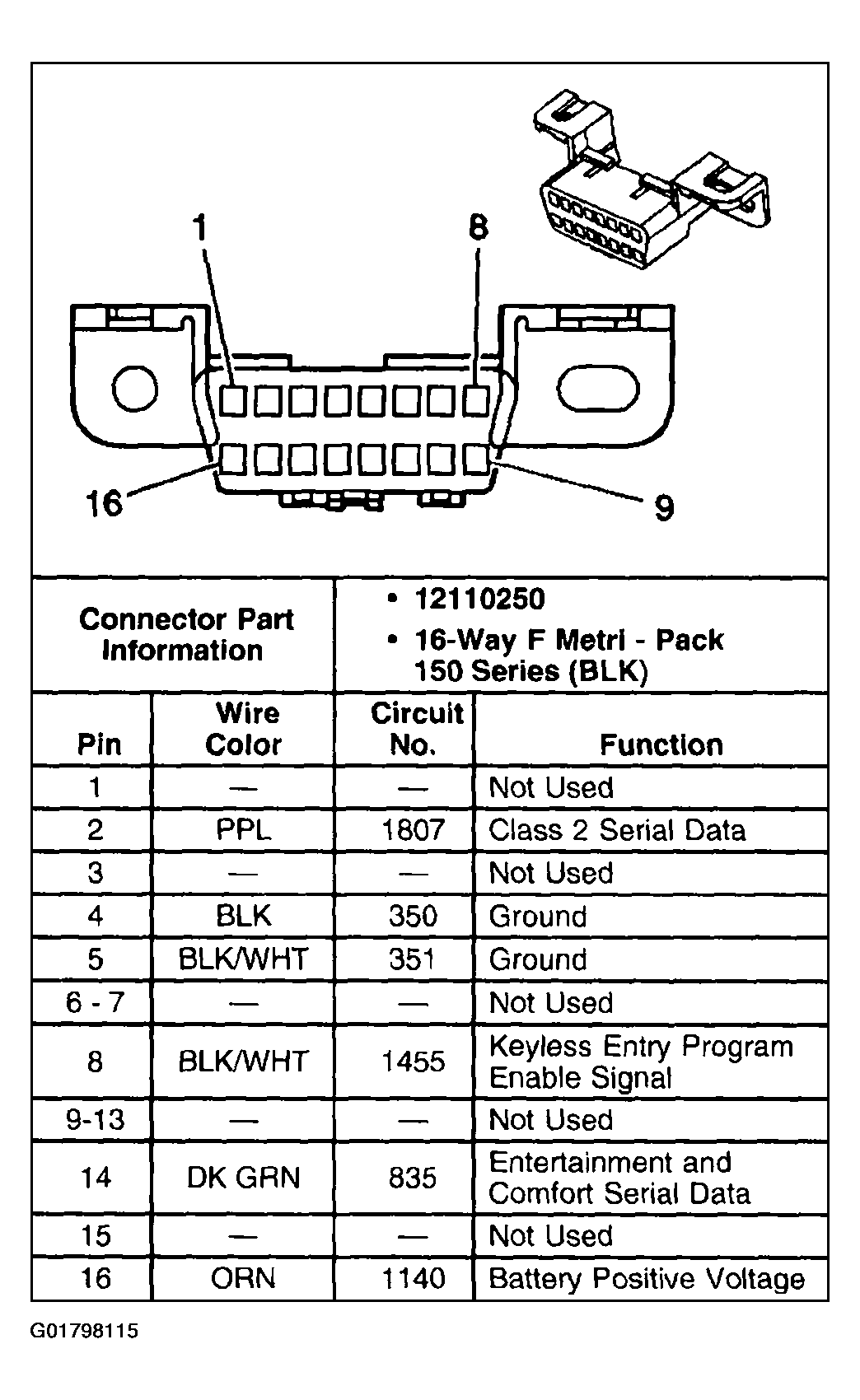

Fig 1: Identifying DLC Terminals

G01798115

Courtesy of GENERAL MOTORS CORP.
