Windshield Washer Fluid Level Switch Connector End View

Fig 1: Windshield Washer Fluid Level Switch
G01742137Courtesy of GENERAL MOTORS CORP.

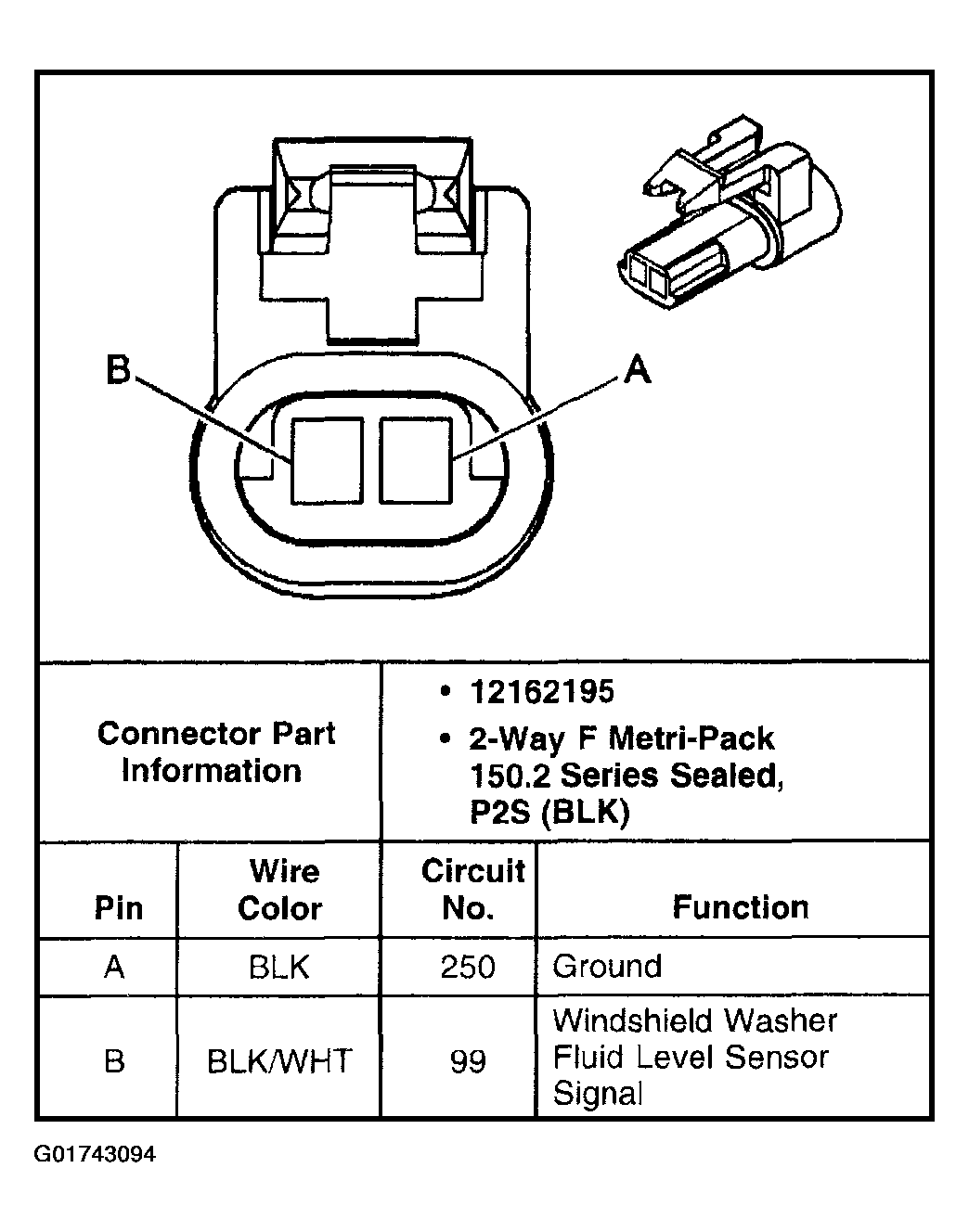

Fig 1: Windshield Washer Fluid Level Switch Connector End Views
G01743094Courtesy of GENERAL MOTORS CORP.
