Sunroof Module Connector End View C1

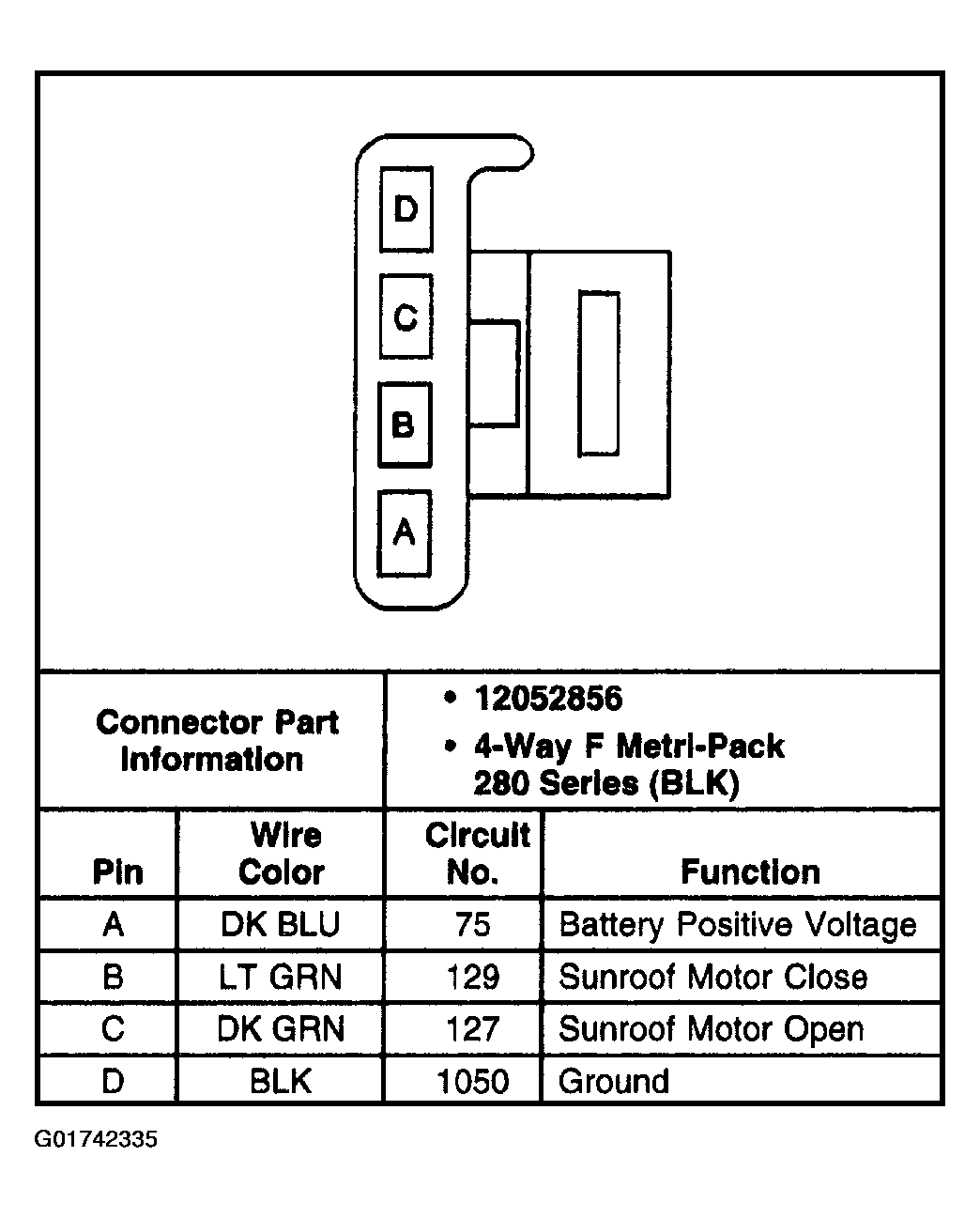

Fig 1: Sunroof Module C1

G01742335

Courtesy of GENERAL MOTORS CORP.
