Home >> Buick >> 2002 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Sunload Sensor Assembly Connector End View

Sunload Sensor Assembly Connector End View

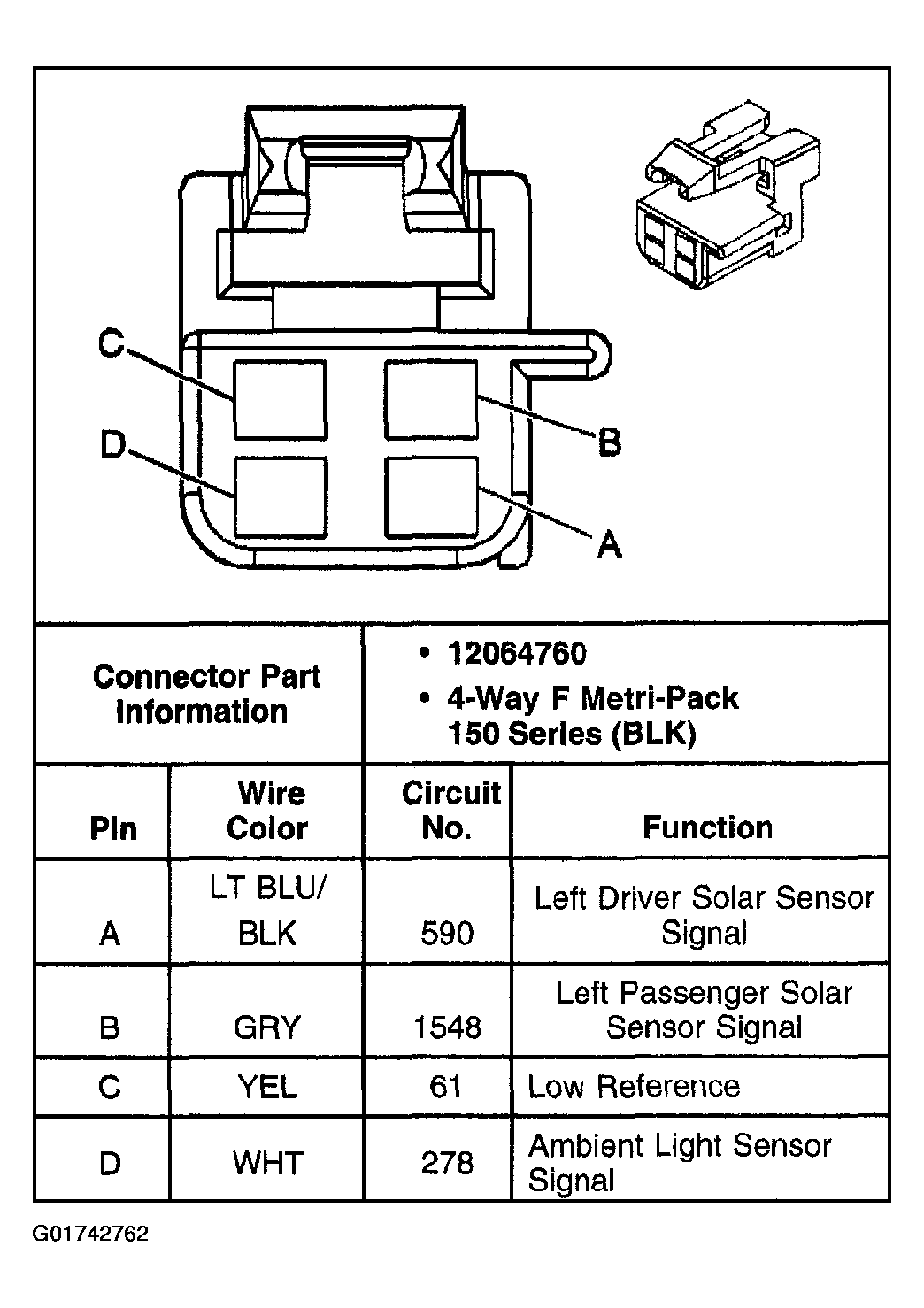

Fig 1: Sunload Sensor Assembly

G01742762

Courtesy of GENERAL MOTORS CORP.
