Rear Integration Module (RIM) Connector End View C2

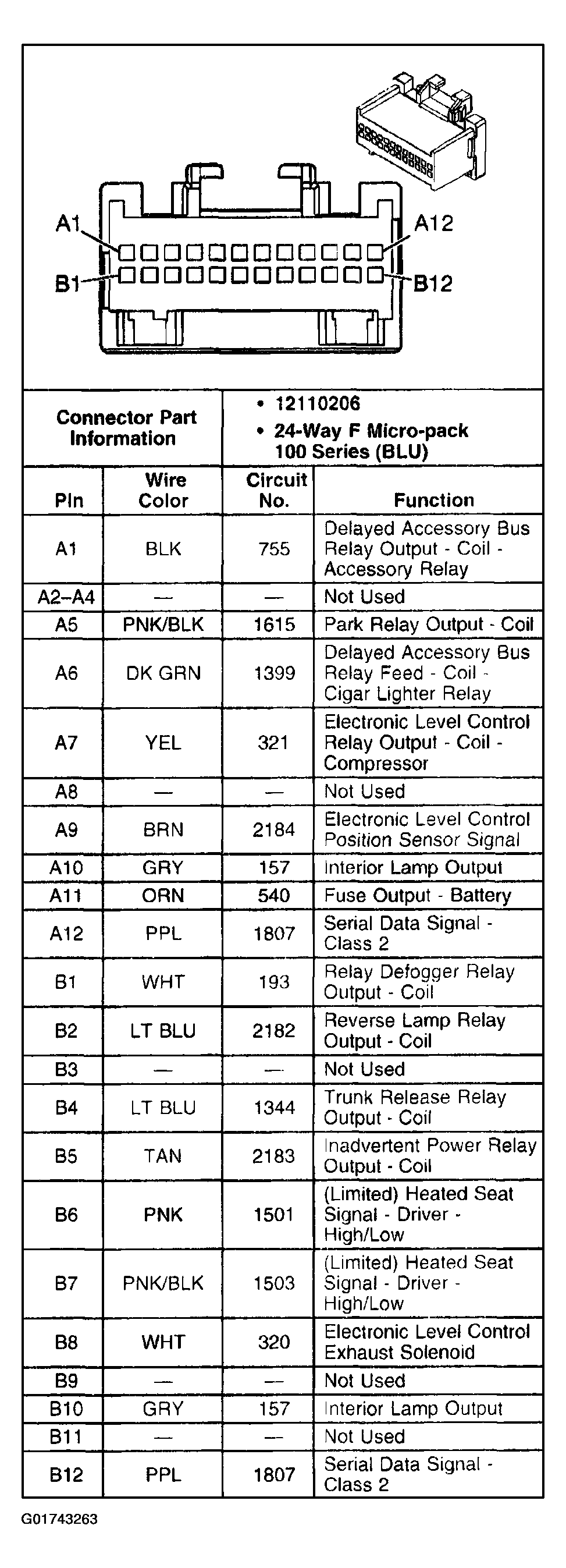

Fig 1: Rear Integration Module (RIM) C2, Connector End View
G01743263Courtesy of GENERAL MOTORS CORP.


Fig 1: Rear Integration Module (RIM) C2
G01743042Courtesy of GENERAL MOTORS CORP.
